Flywheel

Flywheel

Note:
^ Special bolts are used for installation. Do not use standard bolts.

Position the flywheel.

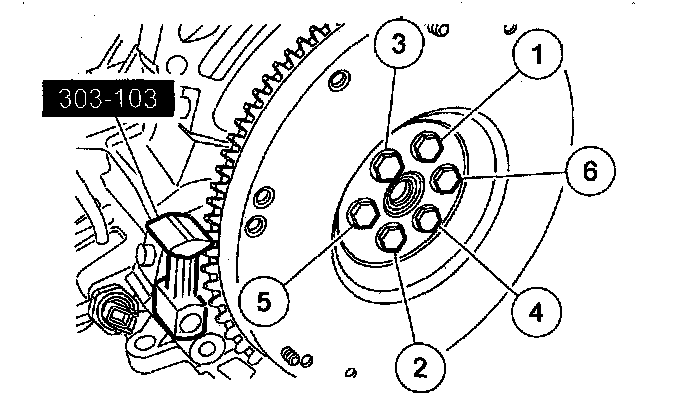

Using the special tool, install the bolts in the sequence shown, in 3 stages.





2.3L Engine:
^ Stage 1: Tighten to 50 Nm (5.1 kgf-m, 37 lb-ft).
^ Stage 2: Tighten to 80 Nm (8.2 kgf-m, 59 lb-ft).
^ Stage 3: Tighten to 112 Nm (11.4 kgf-m, 83 lb-ft).
