Pinpoint Test 1: No Power In All Ignition Switch Positions
PINPOINT TEST 1: NO POWER IN ALL IGNITION SWITCH POSITIONSNormal Operation
Fused battery voltage is supplied to the ignition switch from battery junction box (BJB) fuse 9 (40A) along circuit (R). The ignition switch has 4 possible states:
^ OFF
^ ACC
^ RUN
^ START
This pinpoint test is intended to diagnose the following:
^ Fuse
^ Wiring, terminals or connectors
^ Ignition switch
^ SJB
Caution:
^ Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

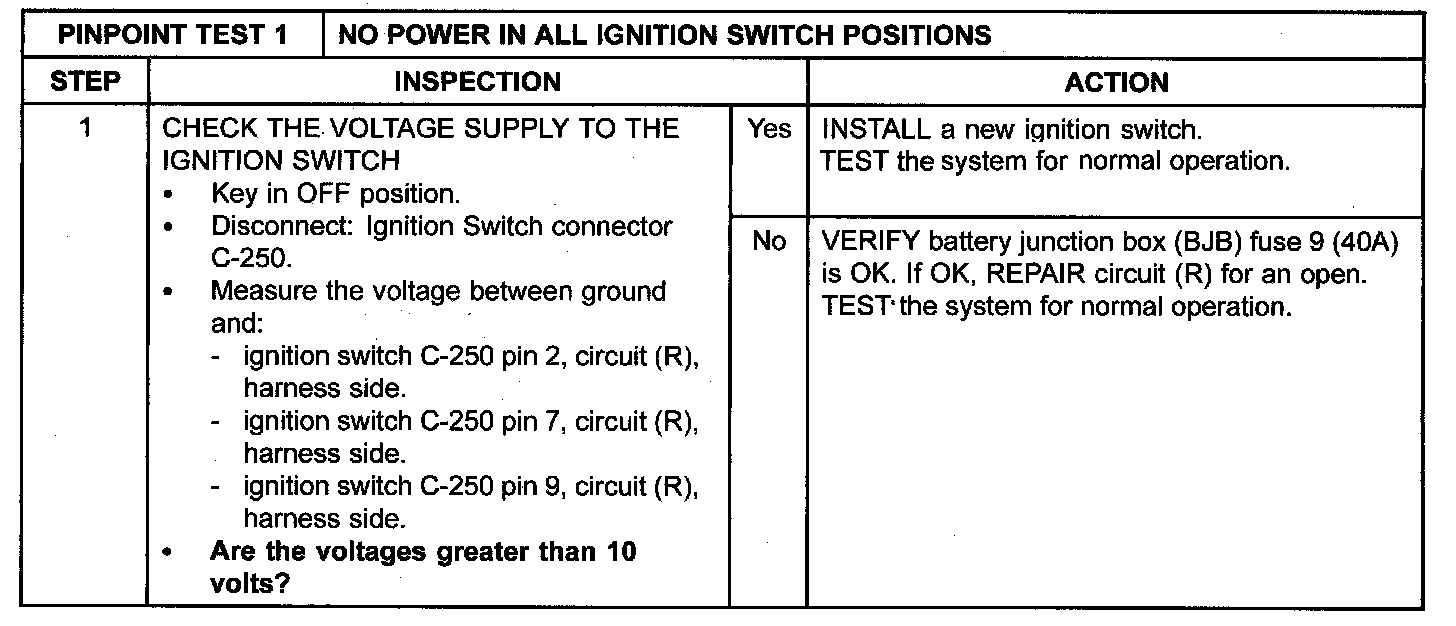

Step 1:
