Connector End Views - Automatic Transmission
Connector End Views - Automatic Transmission

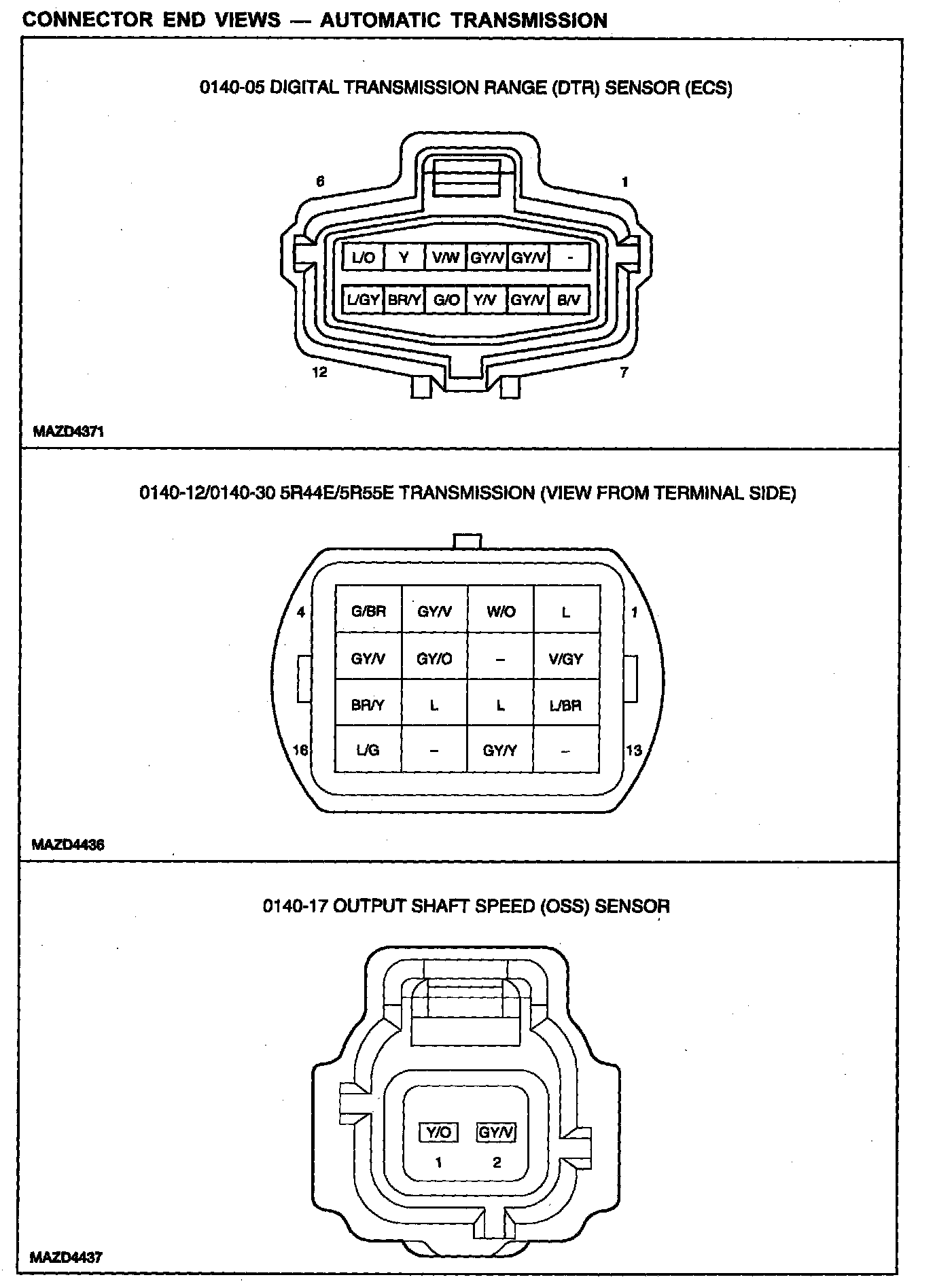

CONNECTOR END VIEWS - AUTOMATIC TRANSMISSION
Connector End Views - Automatic Transmission:
