Connector End Views - External Controls
Connector End Views - External Controls

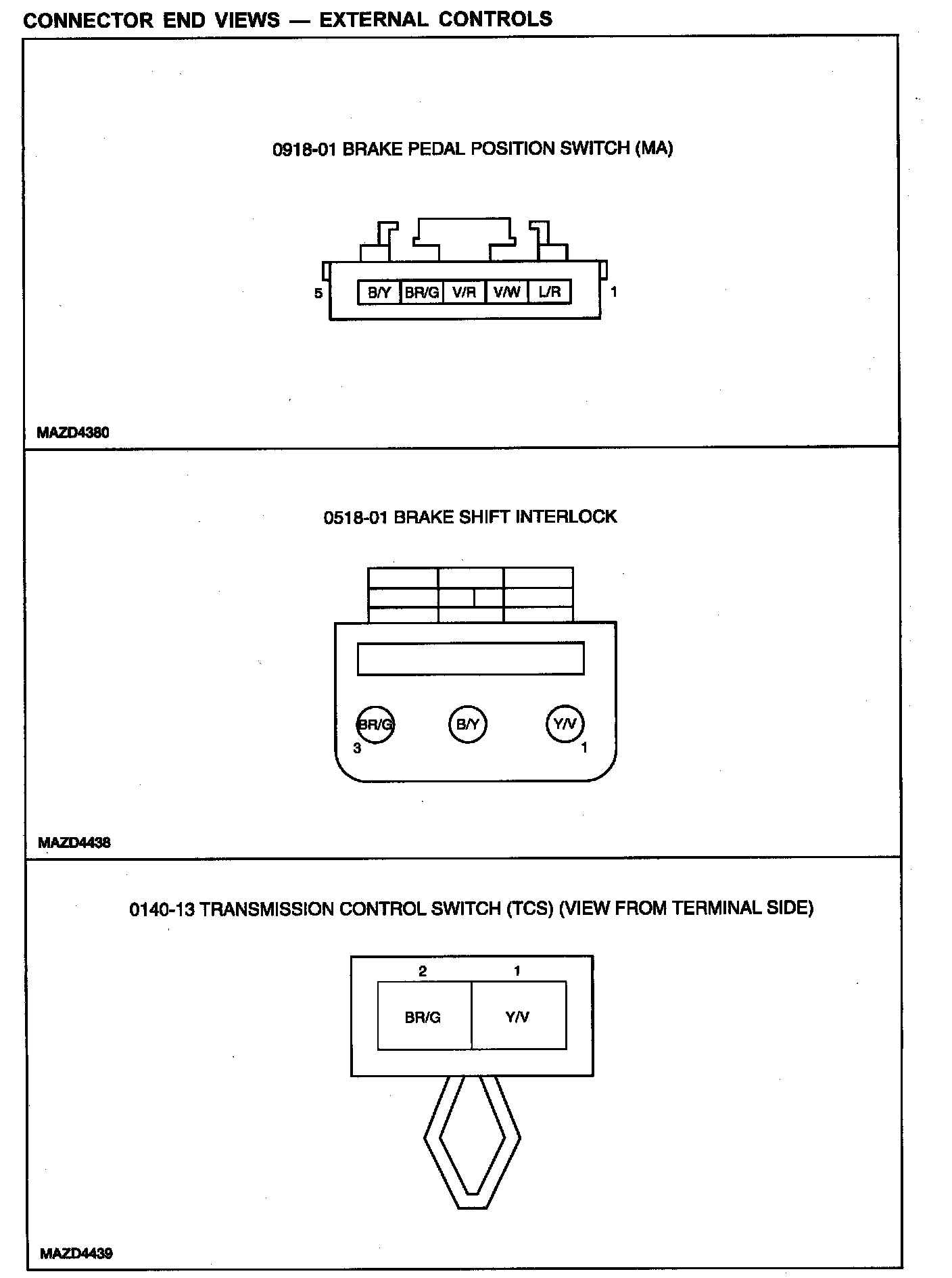

CONNECTOR END VIEWS - EXTERNAL CONTROLS
Connector End Views - External Controls:
