Pinpoint Test 21: Shift Concerns: No 3-4 Shift (Automatic)
Pinpoint Test 21: Shift Concerns: No 3-4 Shift (Automatic)

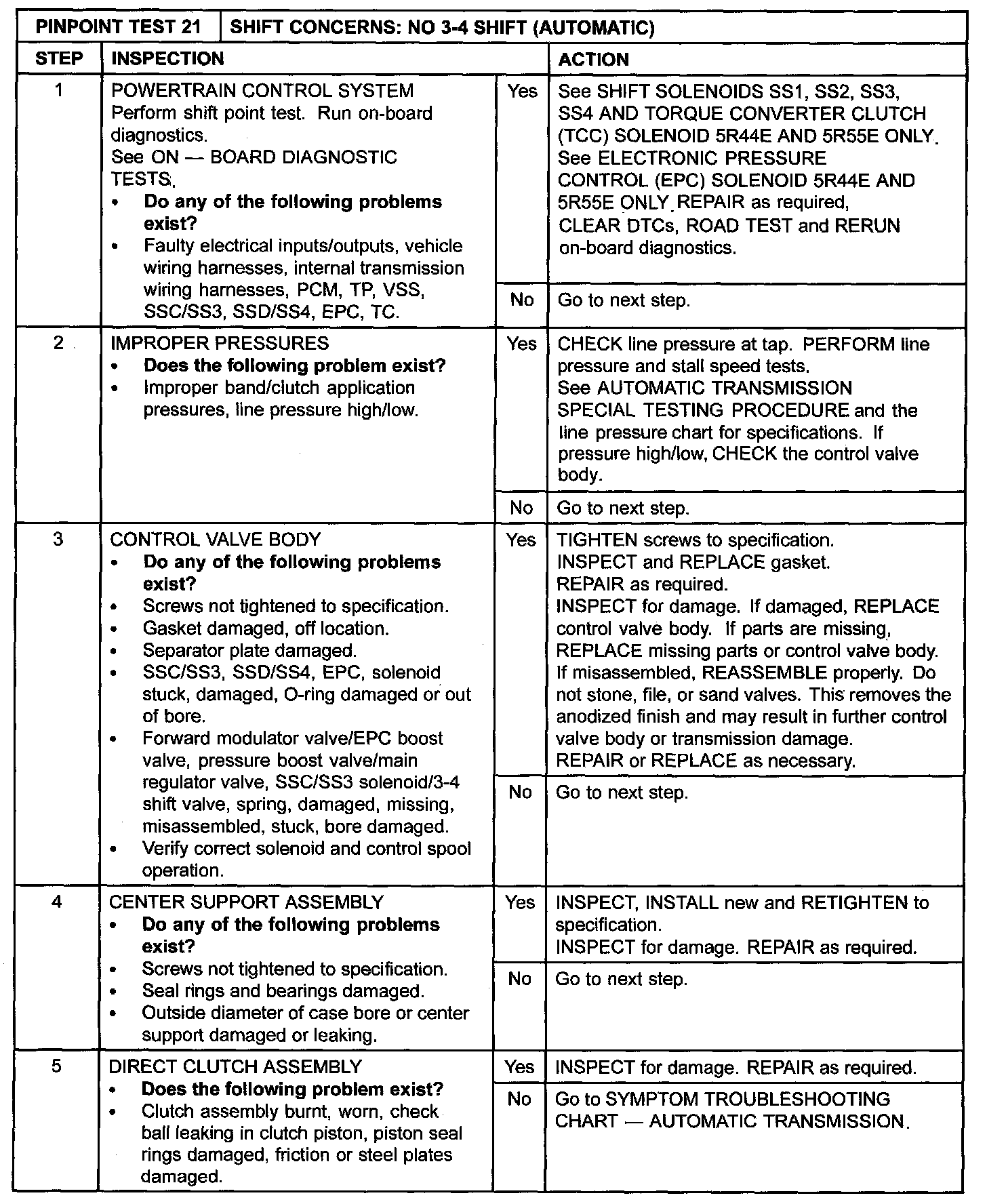

AUTOMATIC TRANSMISSION PINPOINT TEST 21: SHIFT CONCERNS: NO 3-4 SHIFT (AUTOMATIC)
Step 1-Step 5:
