Pinpoint Test 31: Torque Converter Clutch Operation Concerns: No Clutch Apply

AUTOMATIC TRANSMISSION PINPOINT TEST 31: TORQUE CONVERTER CLUTCH OPERATION CONCERNS: NO CLUTCH APPLY

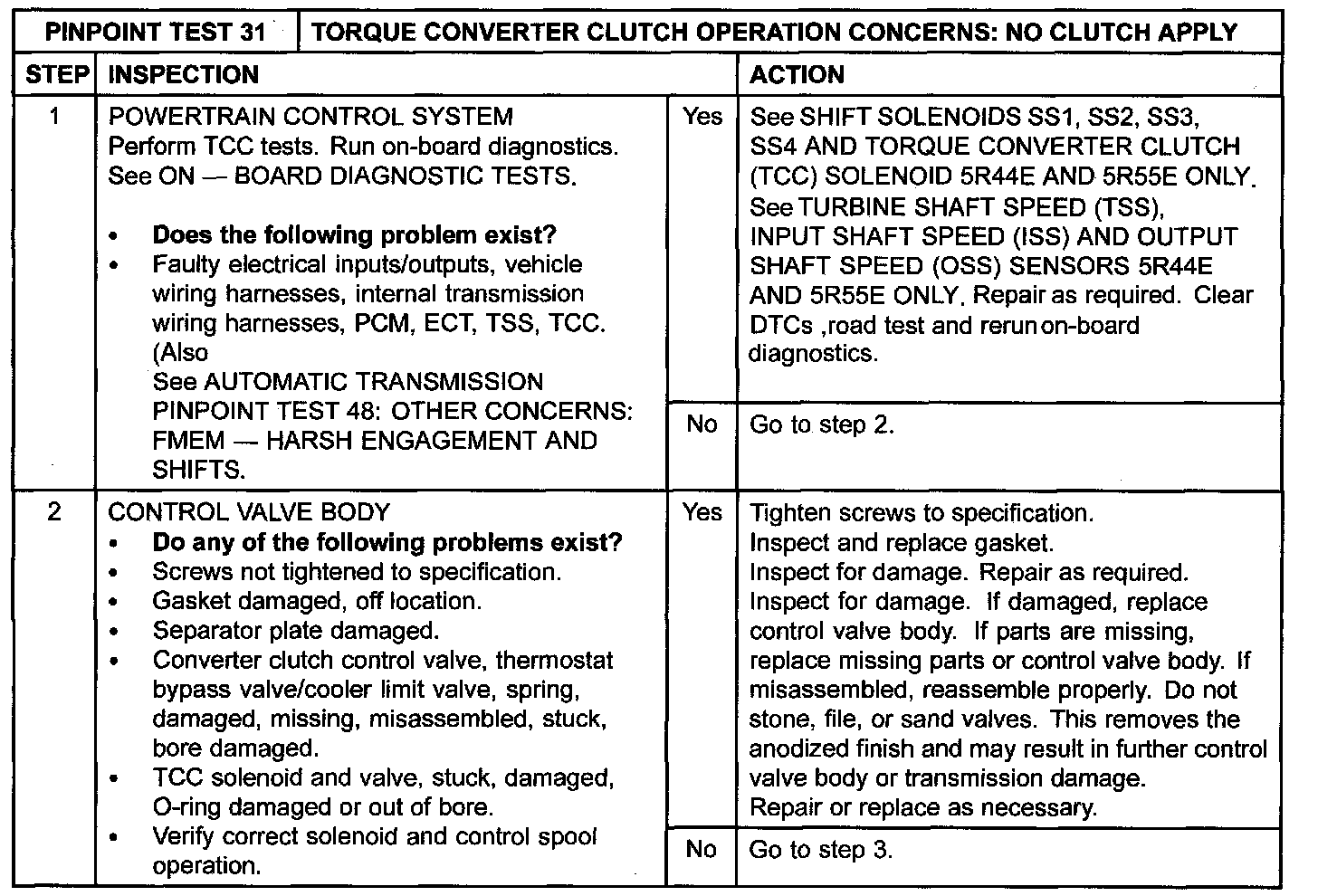

Step 1-Step 2:

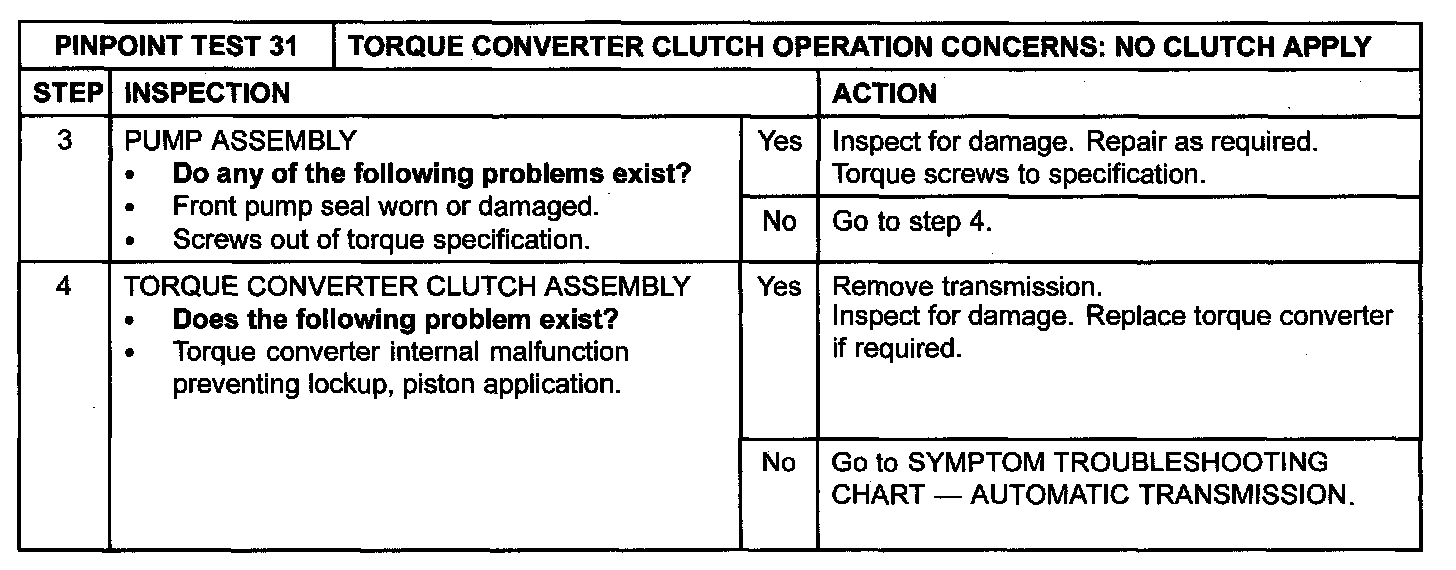

Step 3-Step 4:
