Pinpoint Test 9: Engagement Concerns: Harsh Forward and Reverse
Pinpoint Test 9: Engagement Concerns: Harsh Forward and Reverse
AUTOMATIC TRANSMISSION PINPOINT TEST 9: ENGAGEMENT CONCERNS: HARSH FORWARD AND REVERSE

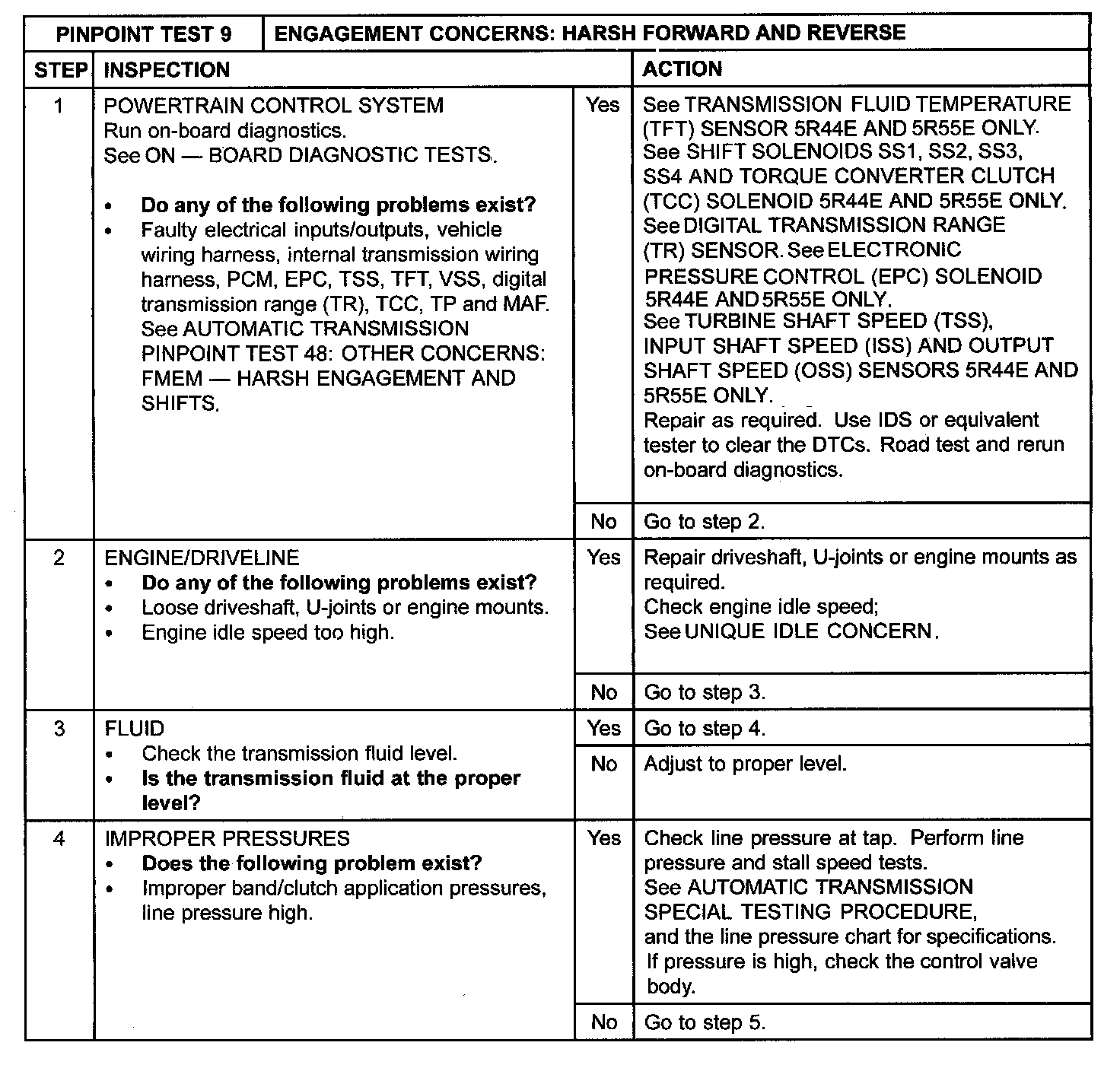

Step 1-Step 4:

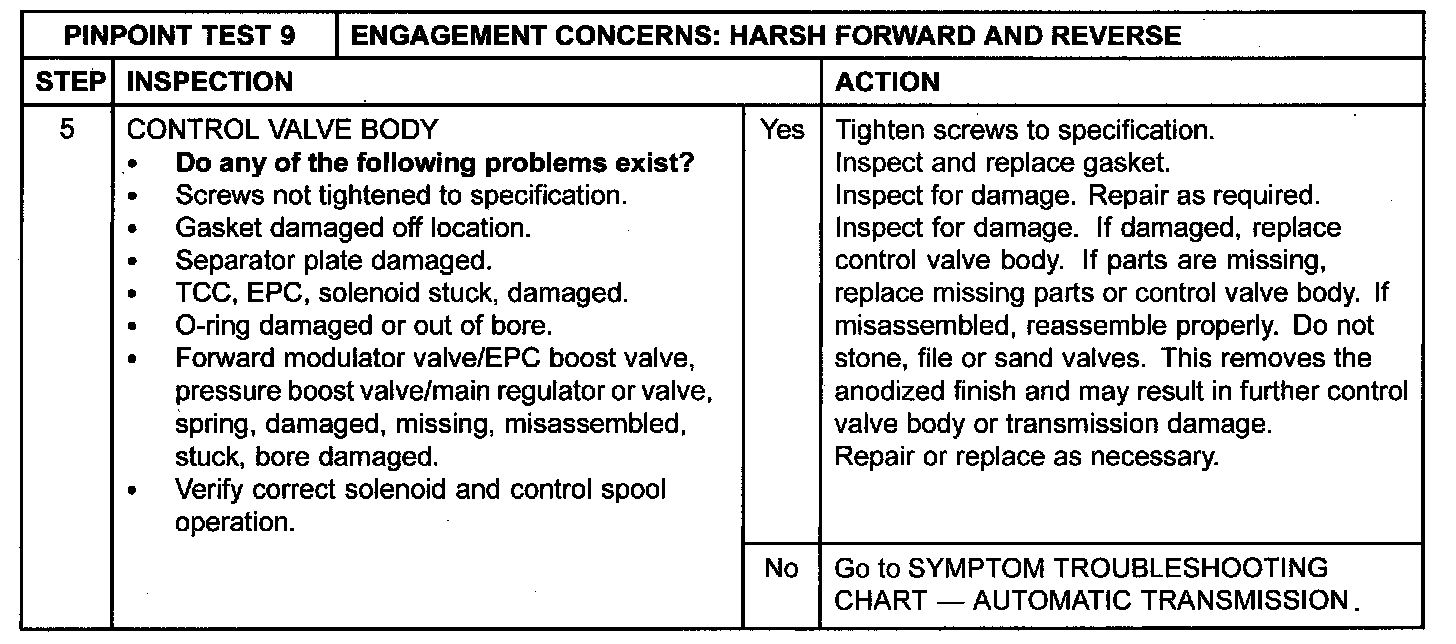

Step 5:
