Axle and Differential Structural View Rear (Limited Slip)

AXLE AND DIFFERENTIAL STRUCTURAL VIEW REAR (LIMITED SLIP)

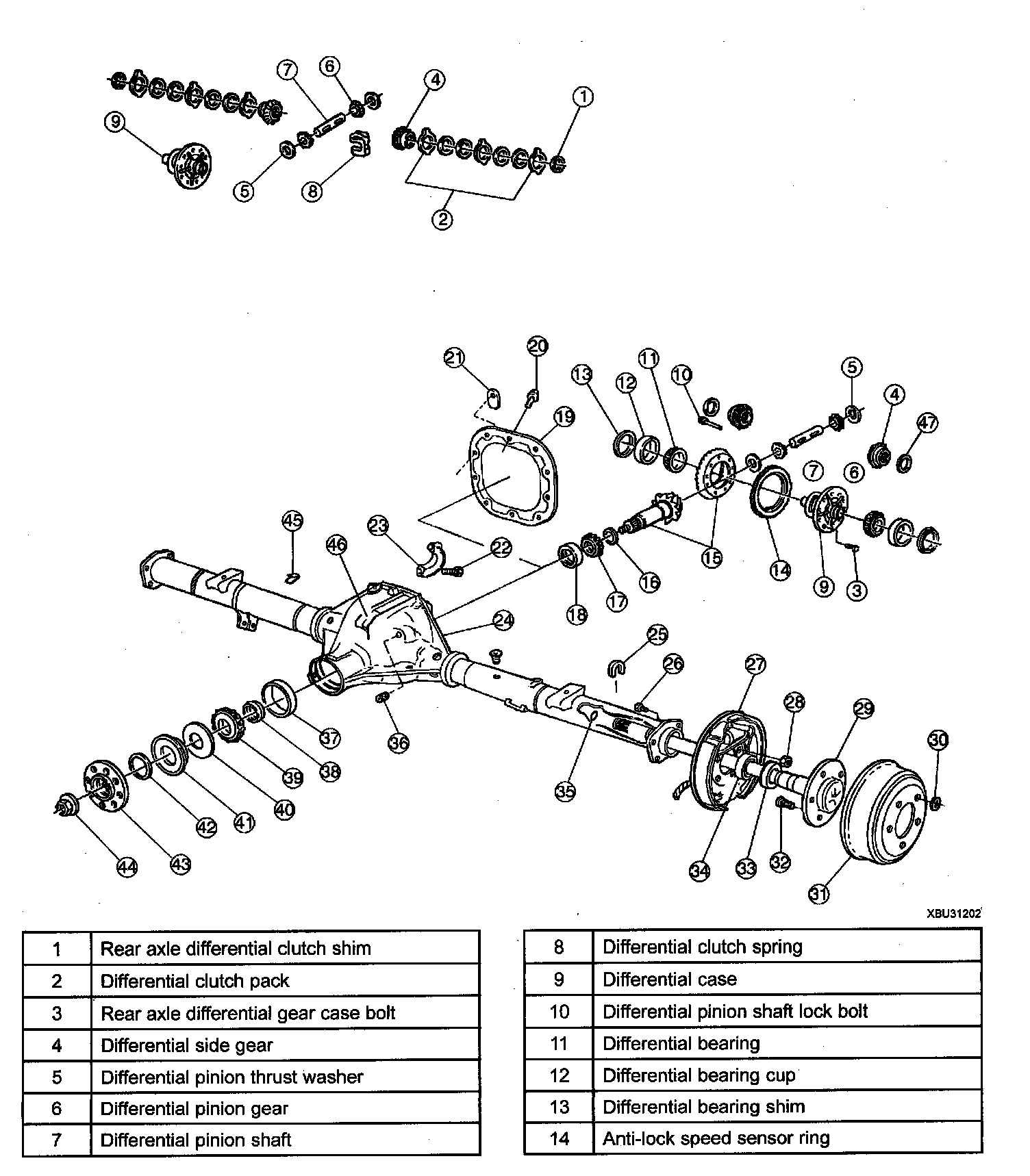

Axle And Differential Structural View Rear (Limited Slip) (Part 1):

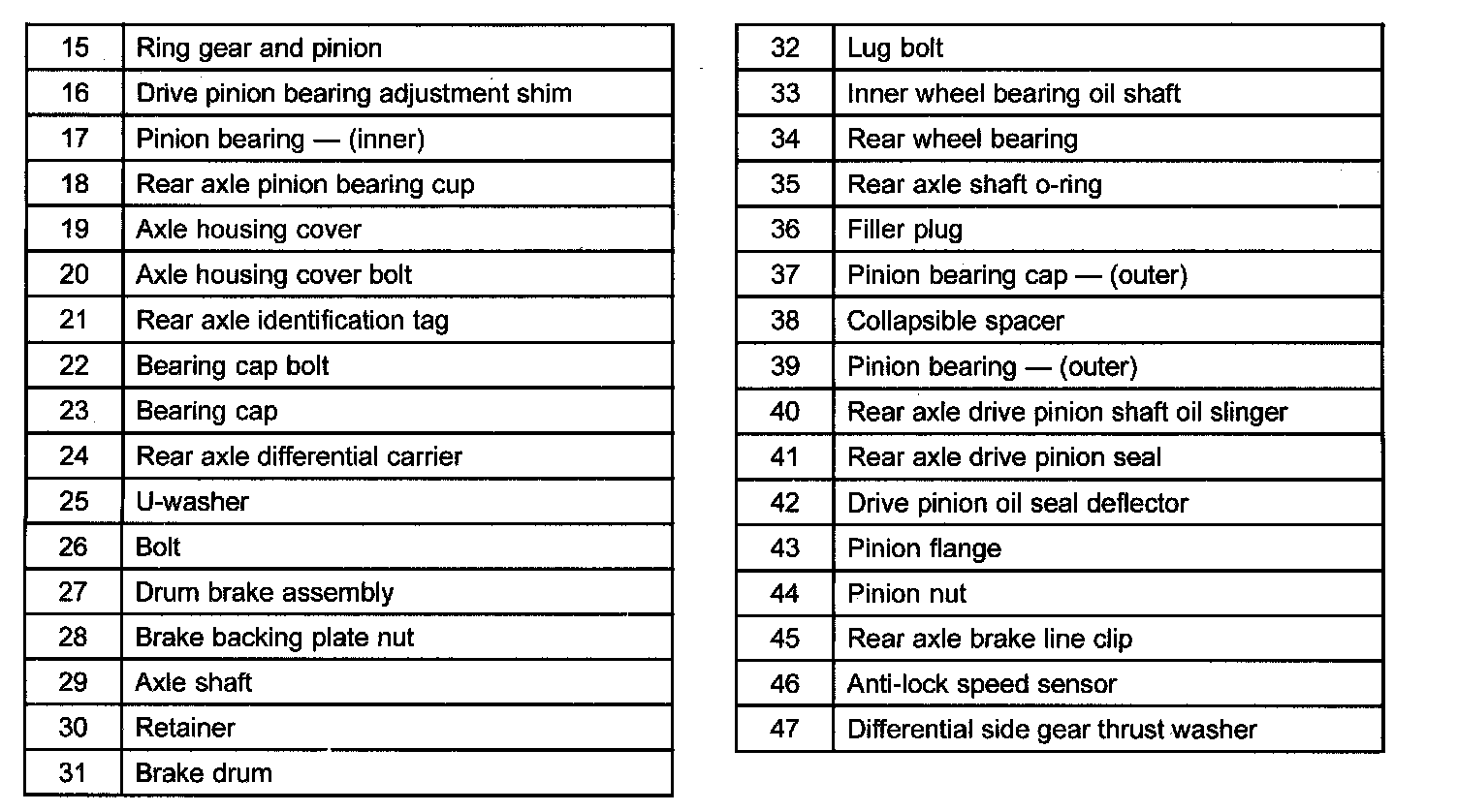

Axle And Differential Structural View Rear (Limited Slip) (Part 2):
