Main Control Valve Body Disassembly/Assembly

MAIN CONTROL VALVE BODY DISASSEMBLY/ASSEMBLY

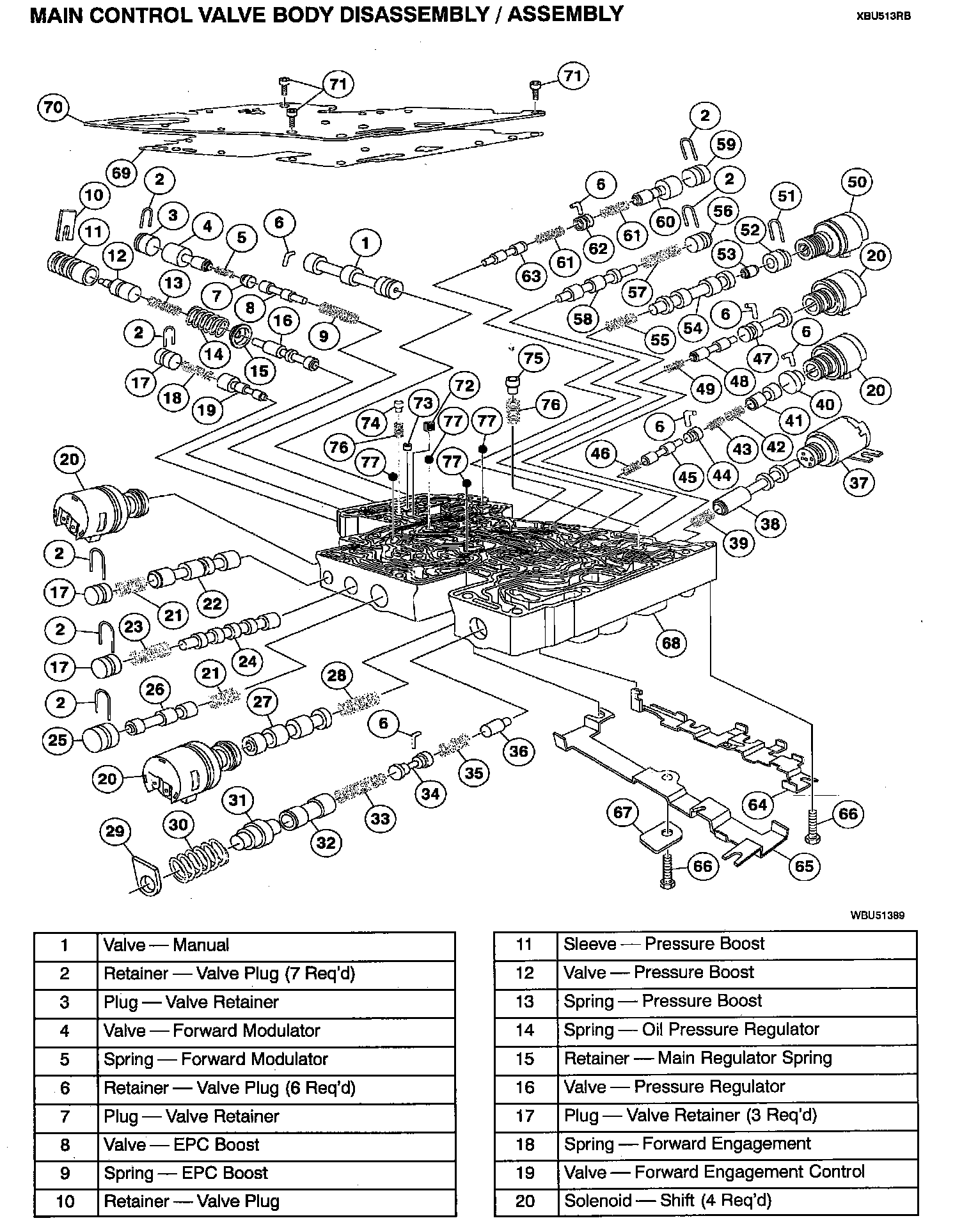

Main Control Valve Body Disassembly/Assembly (Part 1):

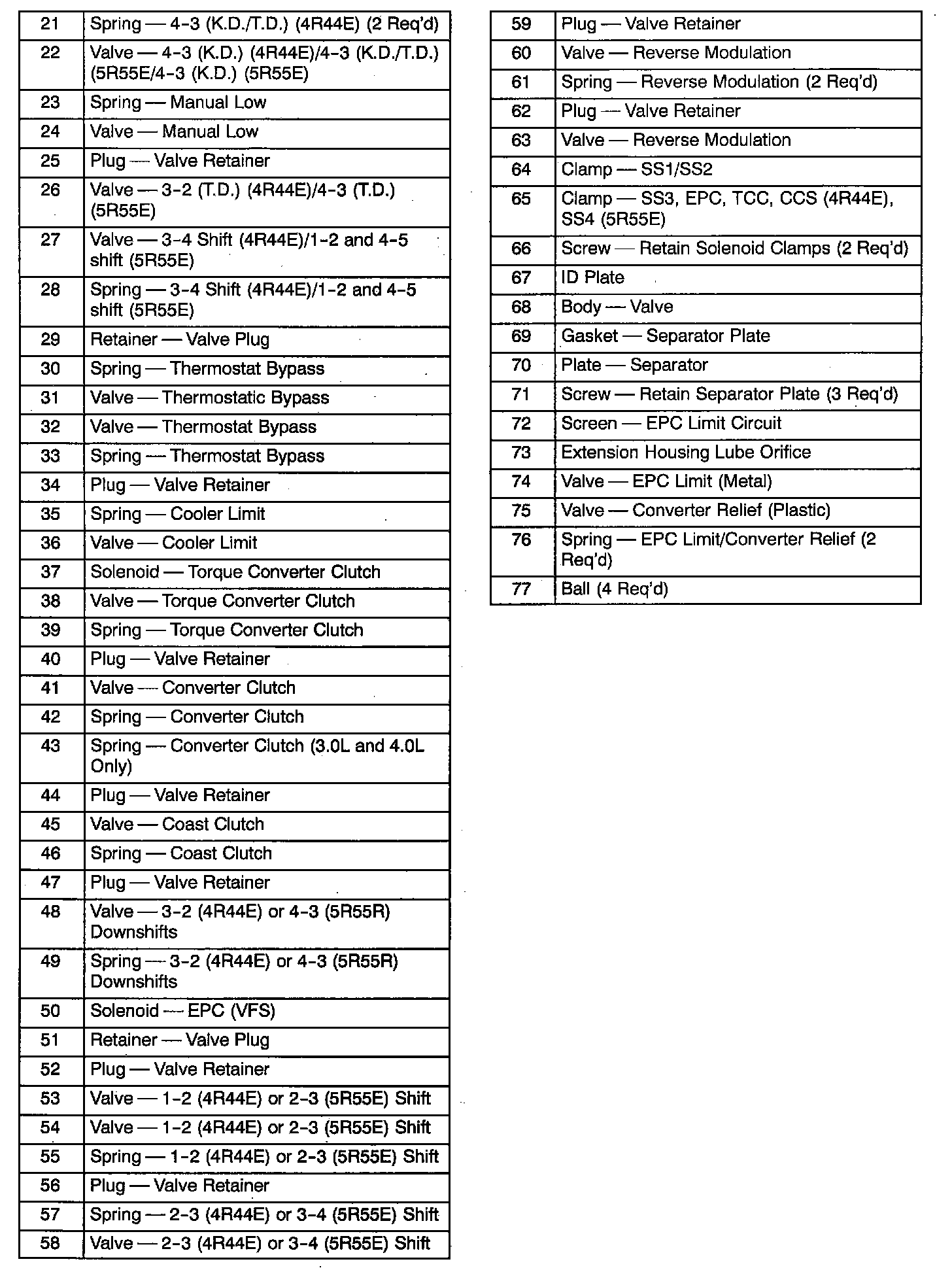

Main Control Valve Body Disassembly/Assembly (Part 2):
