Initial Inspection and Diagnostic Overview
Flowchart -
Use the following flowchart to verify the cause of the trouble.

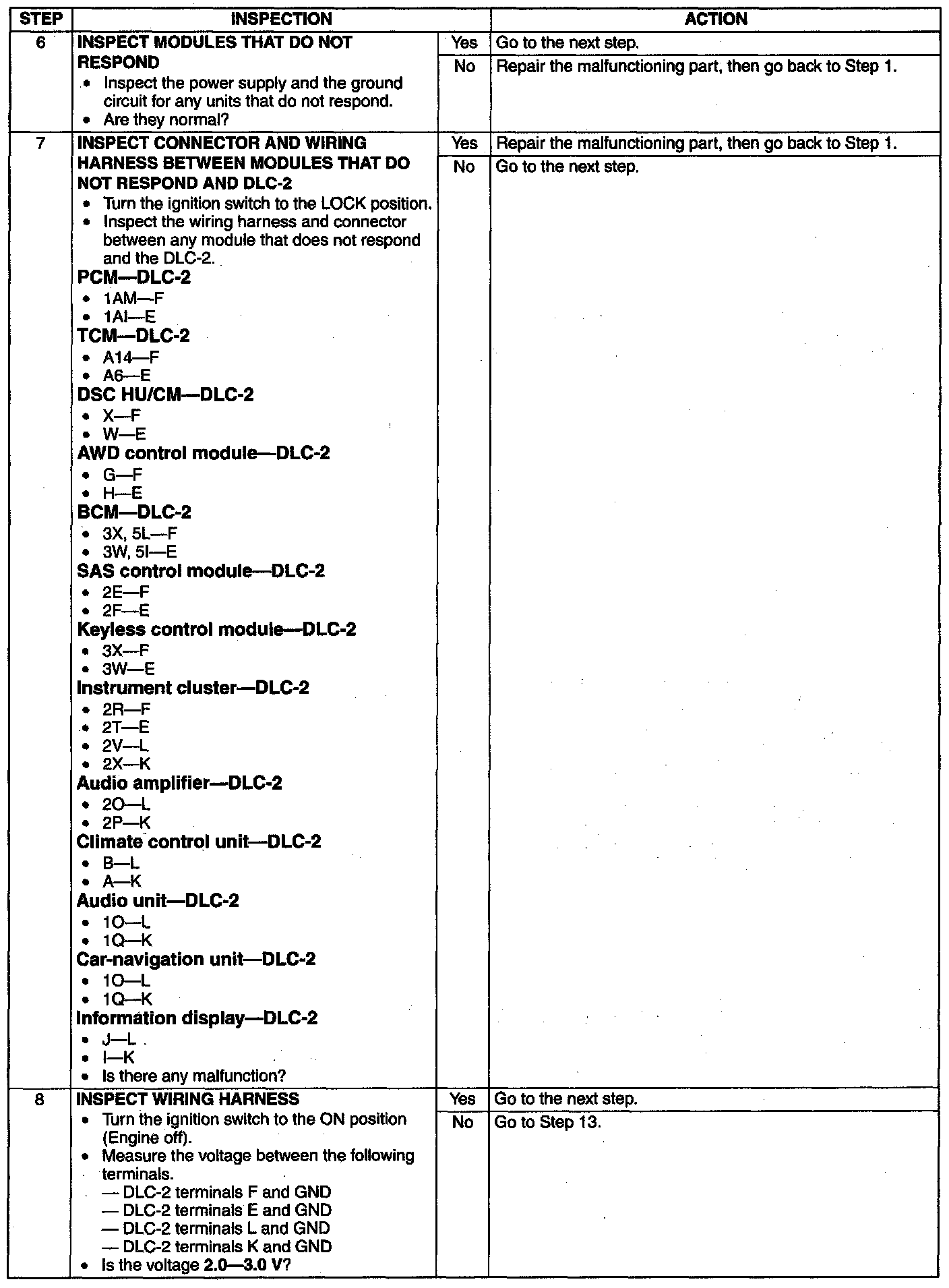

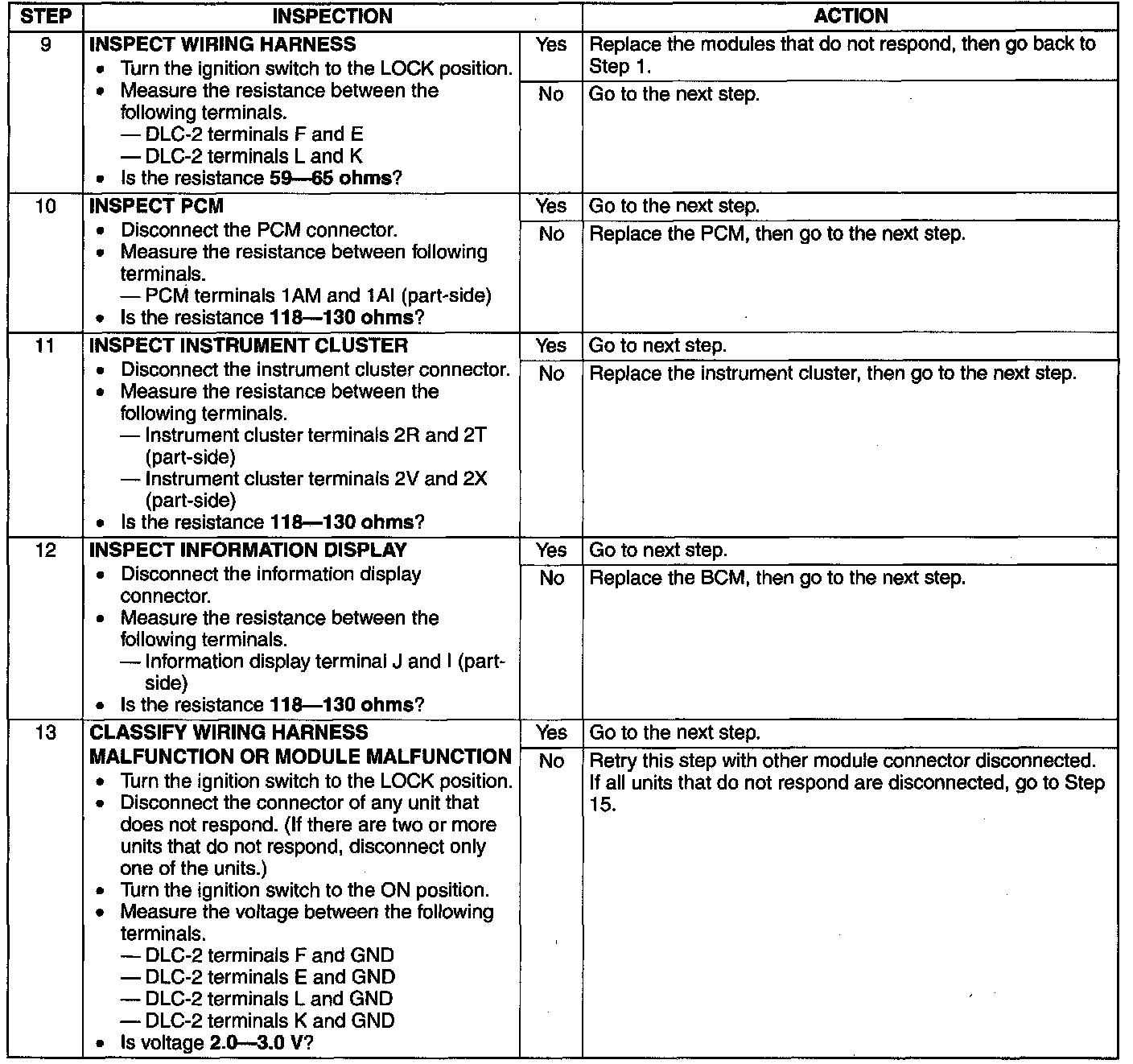

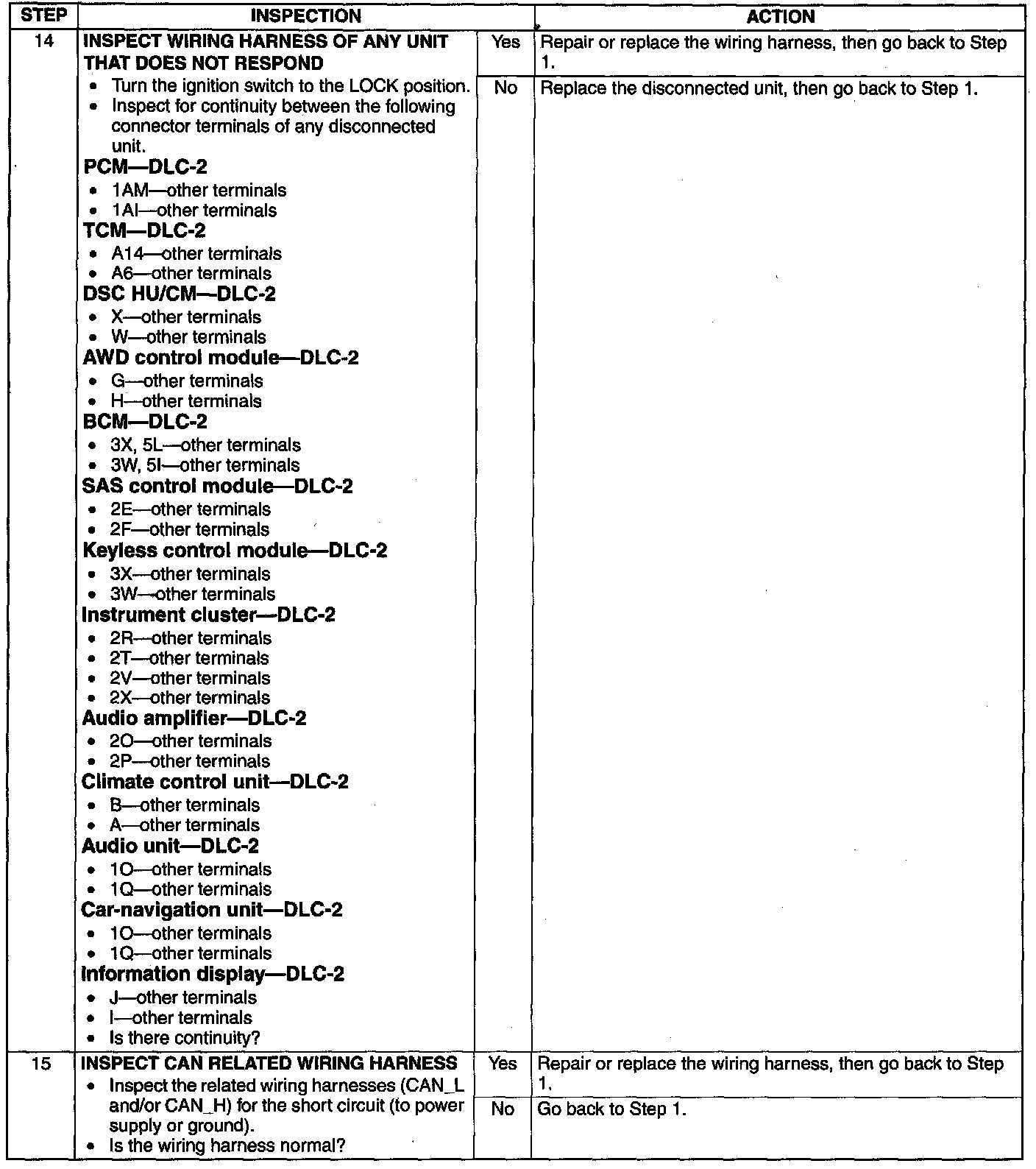

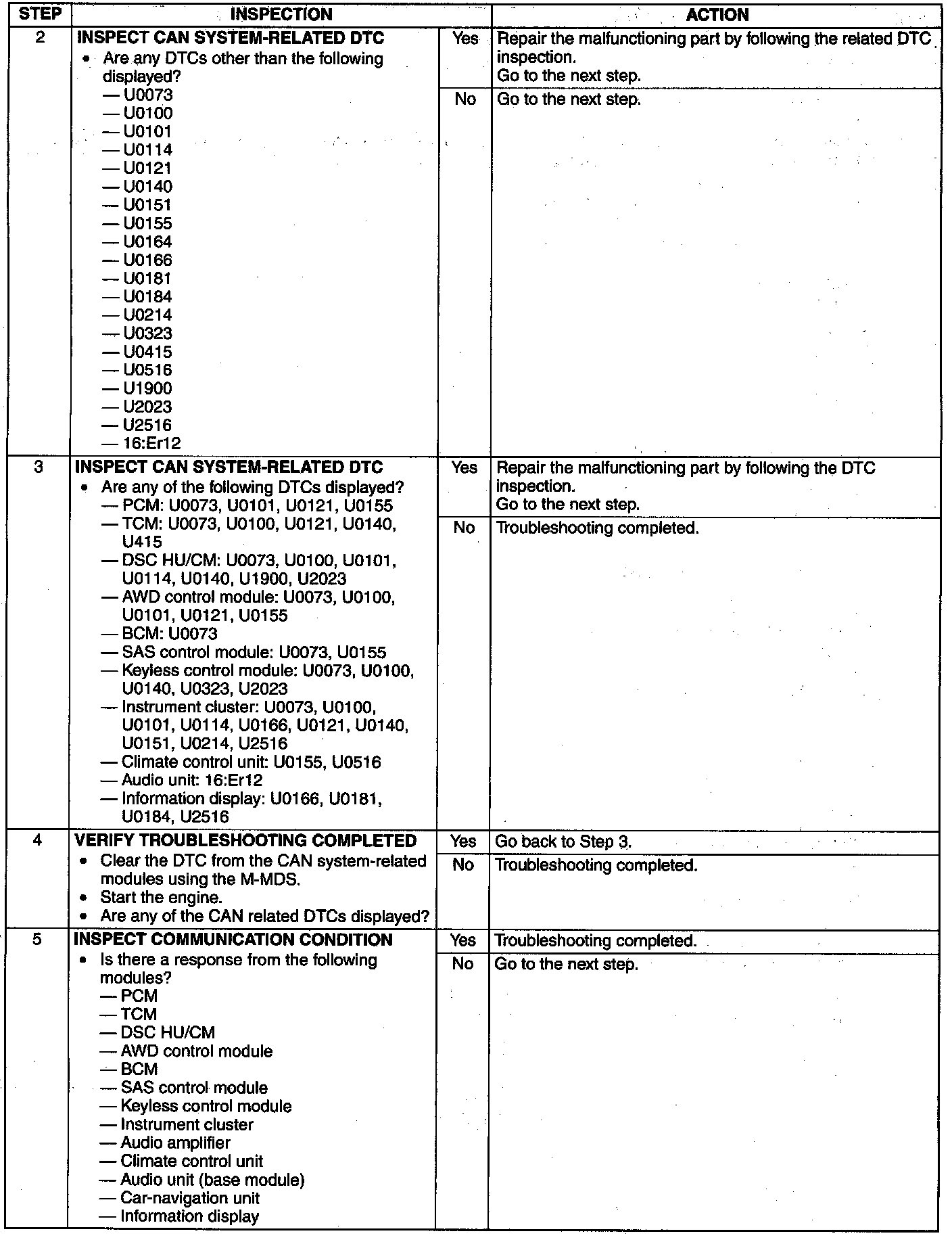

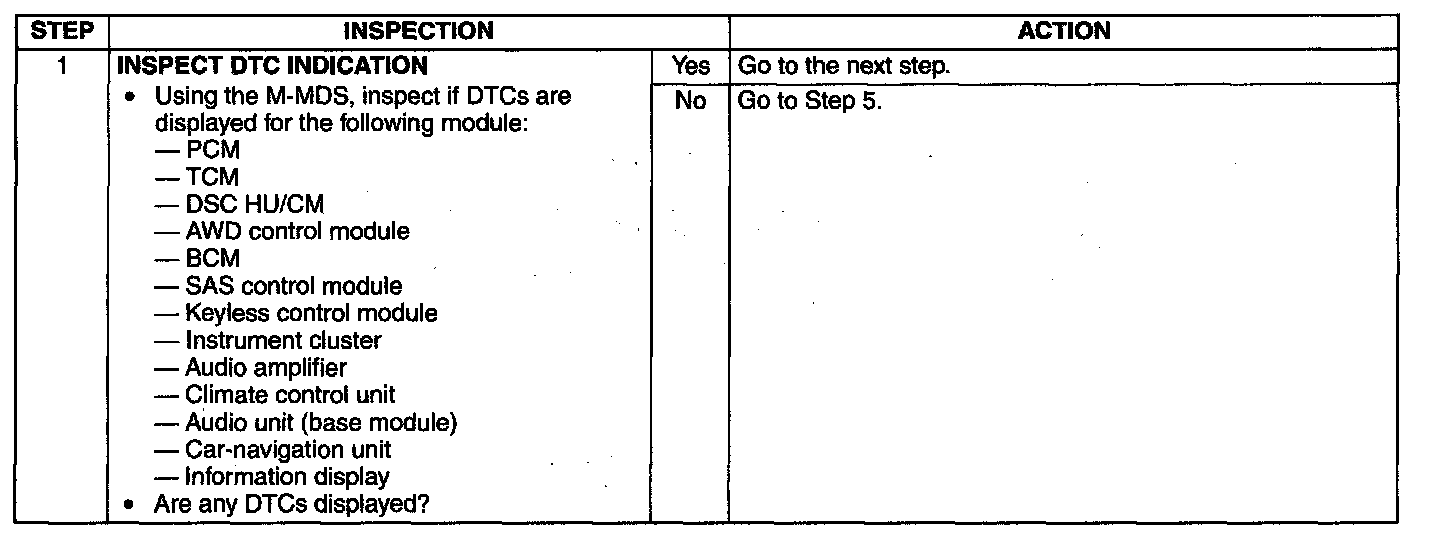

Flowchart (Part 1):
Flowchart (Part 2):
Flowchart (Part 3):
Flowchart (Part 4):
Flowchart (Part 5):
