Manual Air Conditioner

CLIMATE CONTROL UNIT REMOVAL [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Glove compartment.
2. Console
3. Lower panel
4. Center panel
5. Audio unit

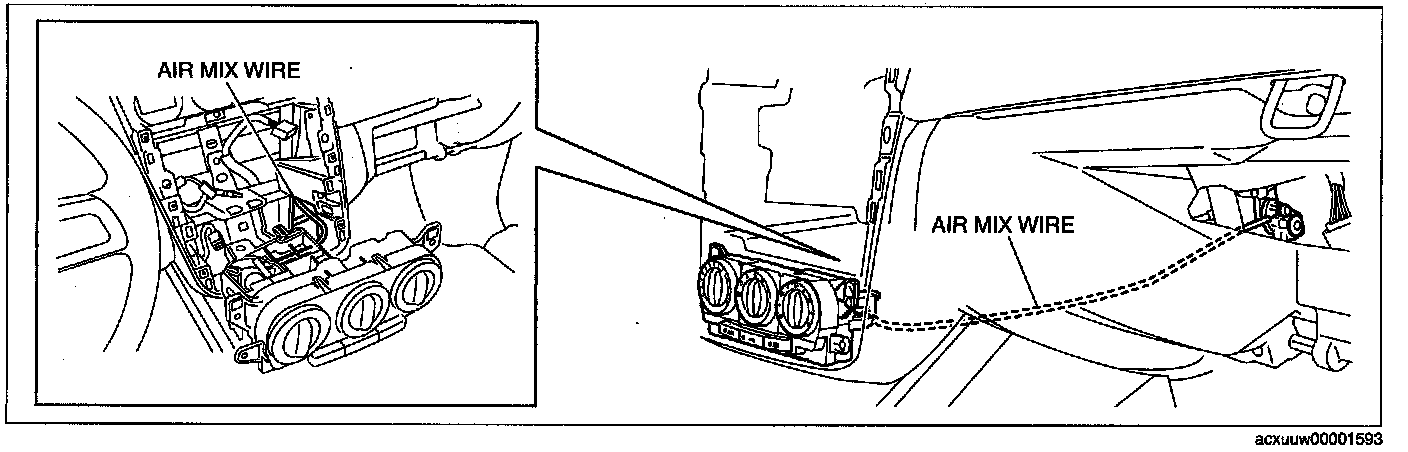

3. Disconnect the air mix wire from wire clamp and link.

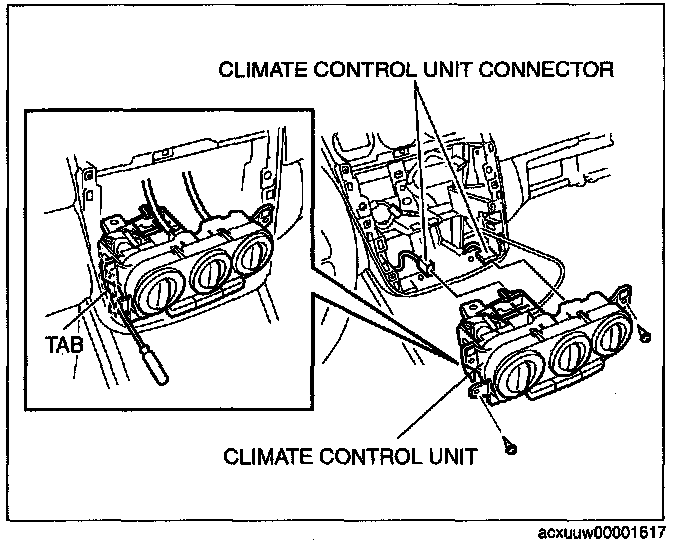

4. Remove the screws and climate control unit.
5. Release the tab and pull the climate control unit toward you.




6. Disconnect the climate control unit connectors and remove the climate control unit.

CLIMATE CONTROL UNIT INSTALLATION [MANUAL AIR CONDITIONER]

1. Pass air mix wire through the following routes then connect to A/C unit. (Manual air conditioner)






2. Install the following parts:
1. Climate control unit to the dashboard.
2. Audio unit
3. Center panel
4. Lower panel
5. Console

3. Adjust the air mix wire. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT.) Adjustments
4. Install the globe compartment.
