Cellular Phone: Service and Repair

HANDS-FREE TELEPHONE (HF/TEL) UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the dashboard under cover (Passenger side).
3. Remove the grove compartment.

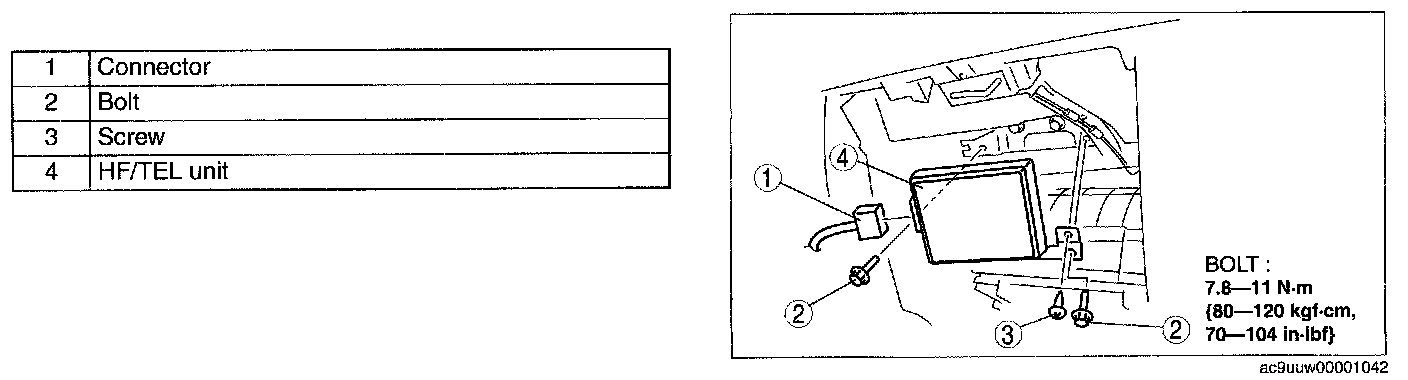

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
