Entertainment Systems: Service and Repair

RES UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

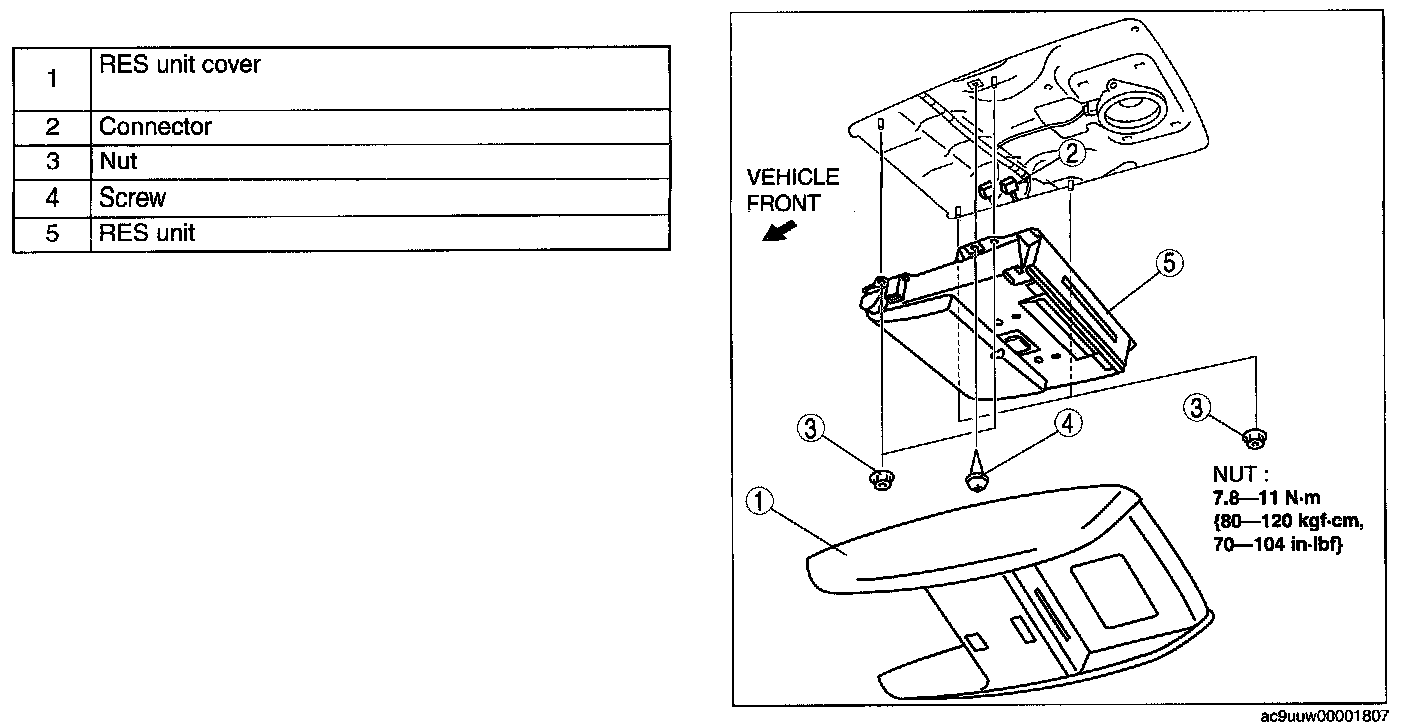

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

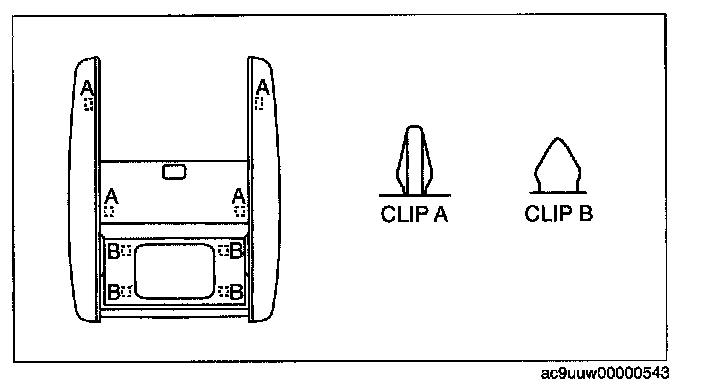

RES Unit Cover Removal Note




1. Pull the cover outward and detach clips A and B.
