Auxiliary Step / Running Board: Service and Repair

SIDE STEP MOLDING REMOVAL/INSTALLATION

Removal






1. Set the over fender out of the way

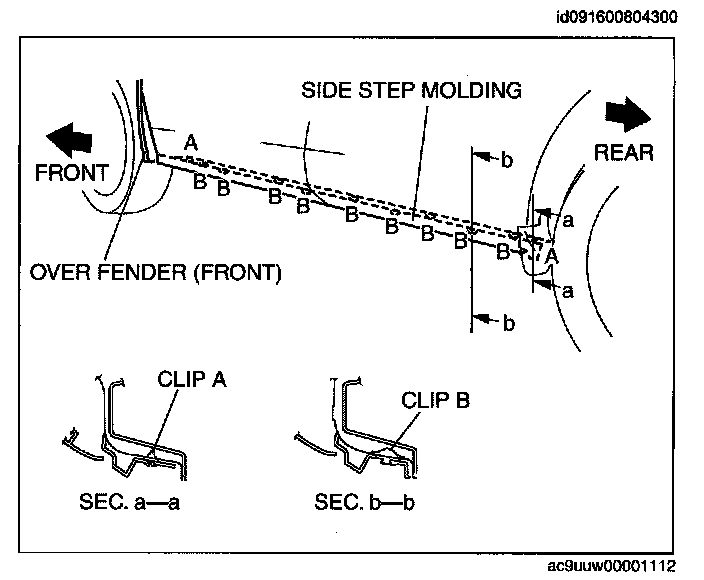

2. Remove the tow fasteners shown in the figure and set the front over fender out of the way.

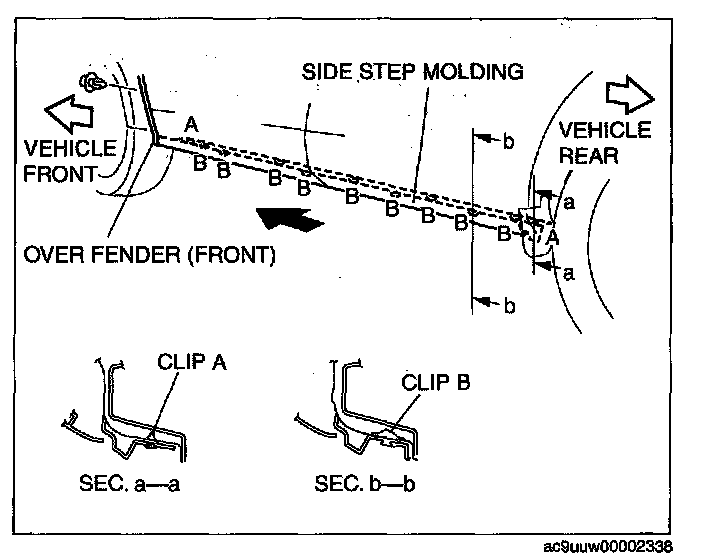

3. Slide the side step molding in the direction of the arrow and detach clips A and B.
4. Remove the side step molding.
5. Remove clips A and B from the body, then install it to the side step molding.

Installation






1. Install the clips A and B.
2. Return the over tender to its original position.
