Front Fender Liner: Service and Repair

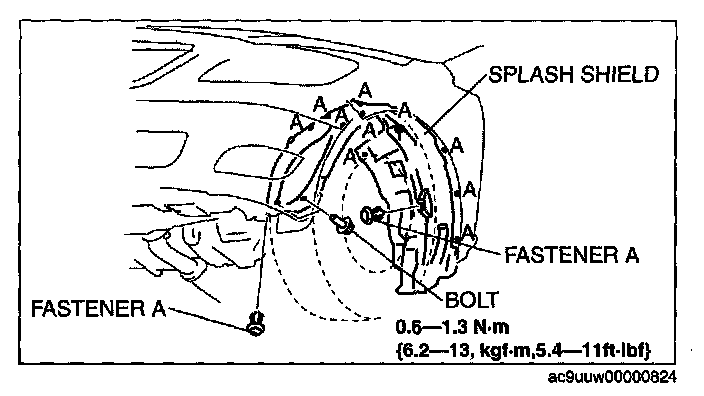

SPLASH SHIELD REMOVAL/INSTALLATION






1. Remove the front over fender.
2. Remove the bolts.
3. Remove the fasteners A.
4. Remove the splash shield.
5. Install in the reverse order of removal.
