Outer Mirror Garnish Removal/Installation
OUTER MIRROR GARNISH REMOVAL/INSTALLATIONRemoval
1. Remove the outer mirror glass from the outer mirror
2. Pinch the ends of the visible clips (4 locations) shown in the figure, and detach them by pressing them towards the vehicle front.
3. Grasp the upper side of the outer mirror garnish and remove it by pulling it in the direction of the arrow.
Installation

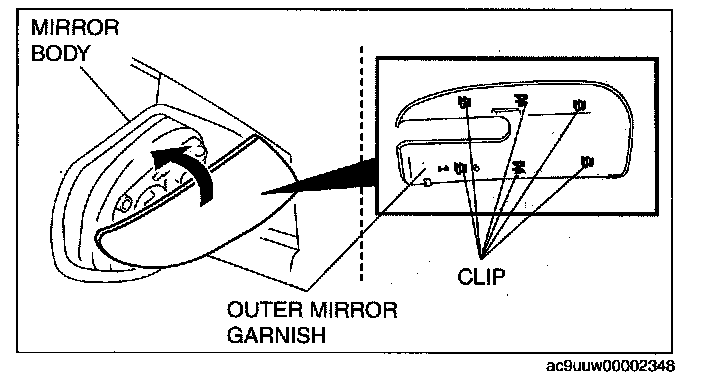

1. Position the outer mirror garnish against the mirror body in the direction of the arrow shown in the figure, and insert the outer mirror garnish clips (6 locations) into the mirror body.
2. Install the outer mirror garnish so that there are no gaps around the component.
