Seat Temperature Element: Diagrams

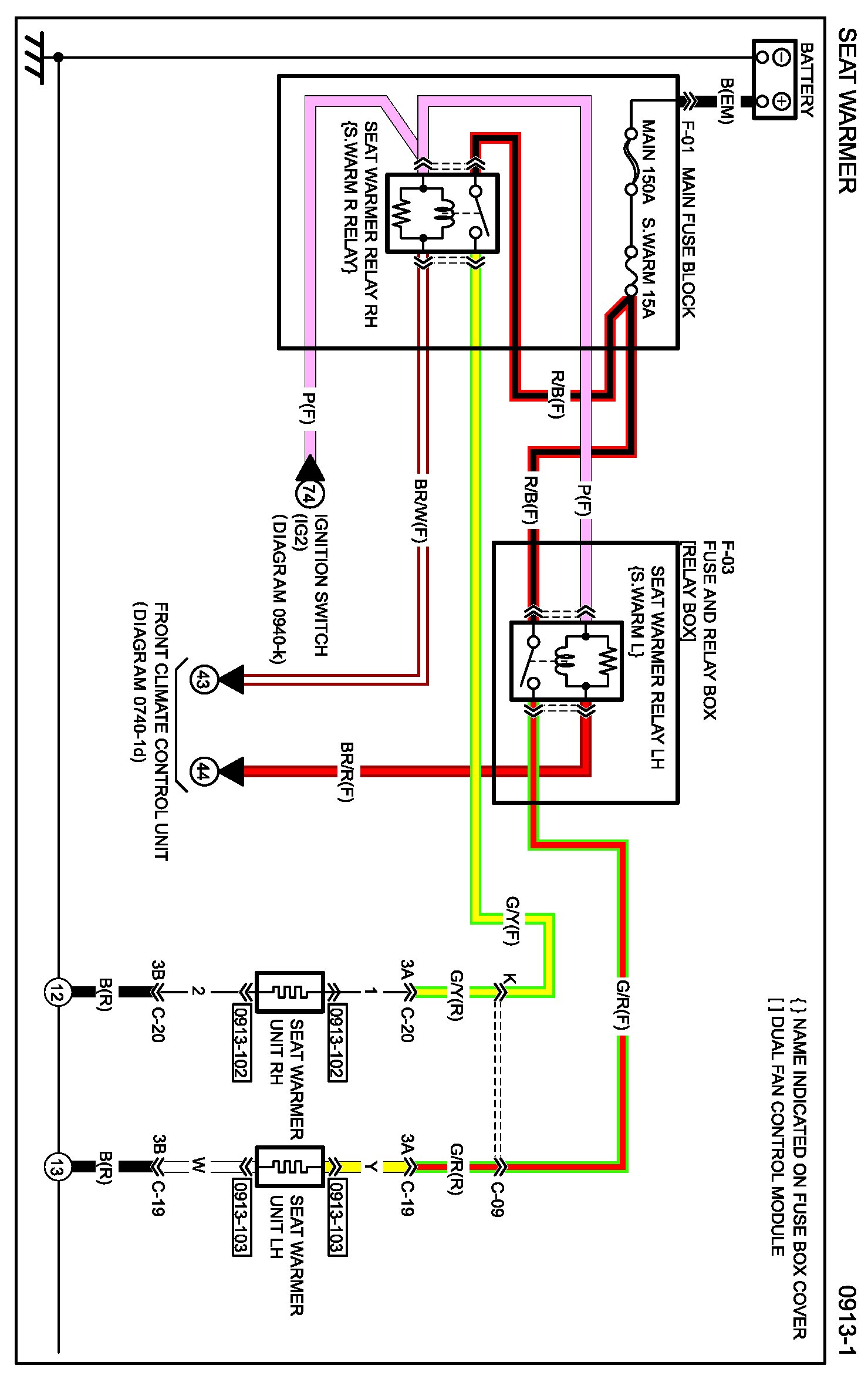

Diagram 0913-1:
Connectors 0913-1:

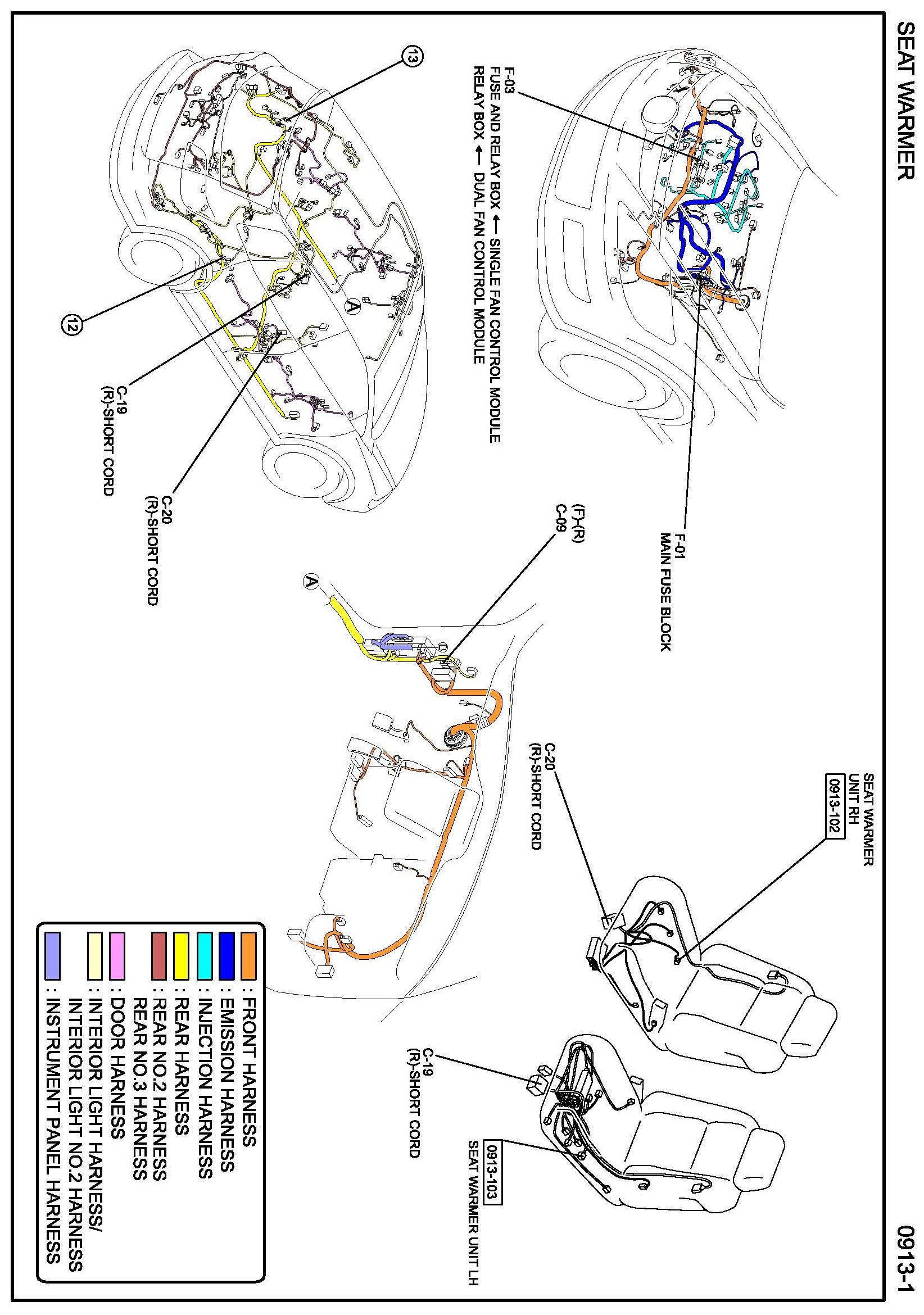

Routing View 0913-1:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
