Second-Row Seat Disassembly/Assembly

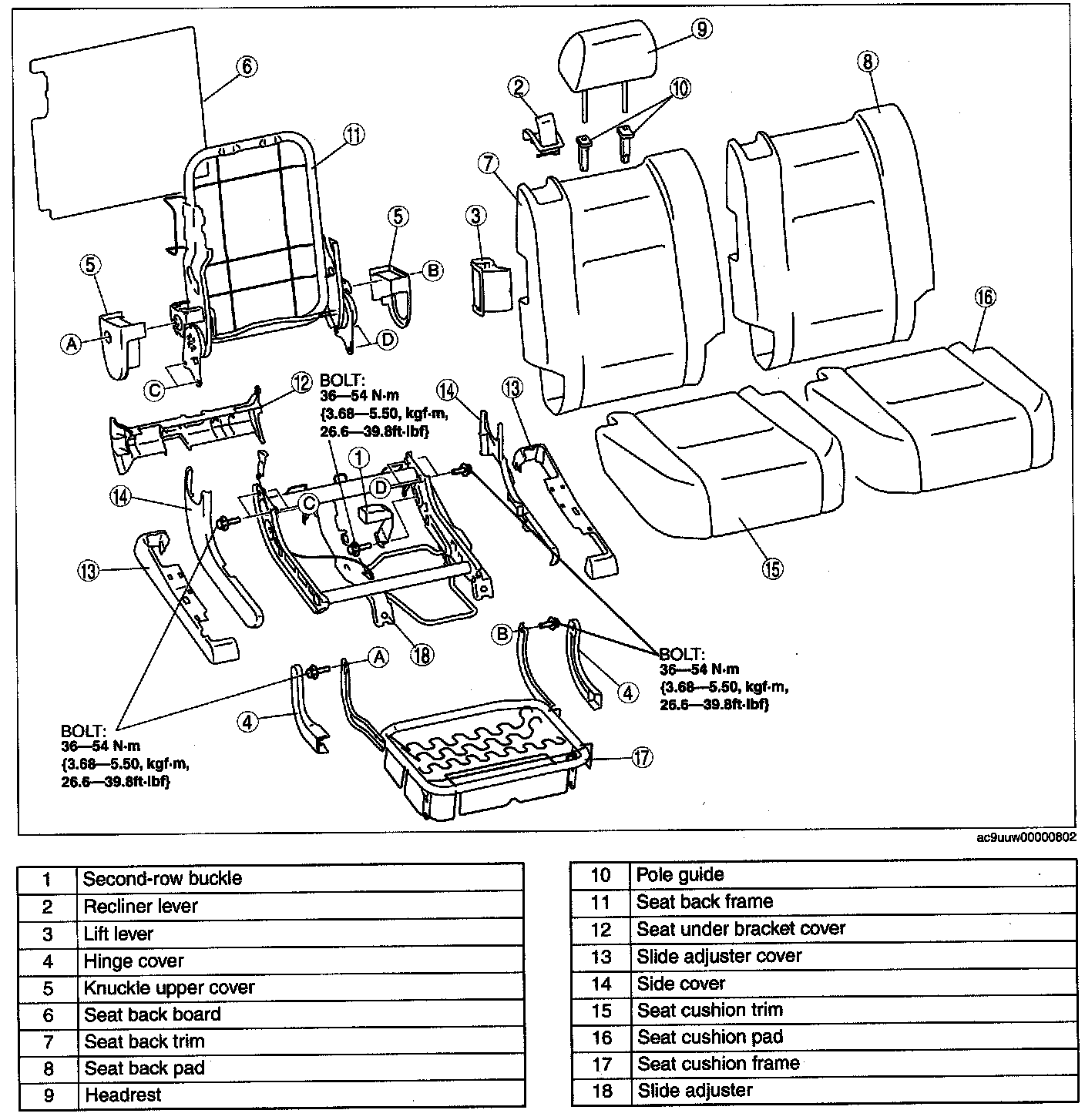

SECOND-ROW SEAT DISASSEMBLY/ASSEMBLYLH
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

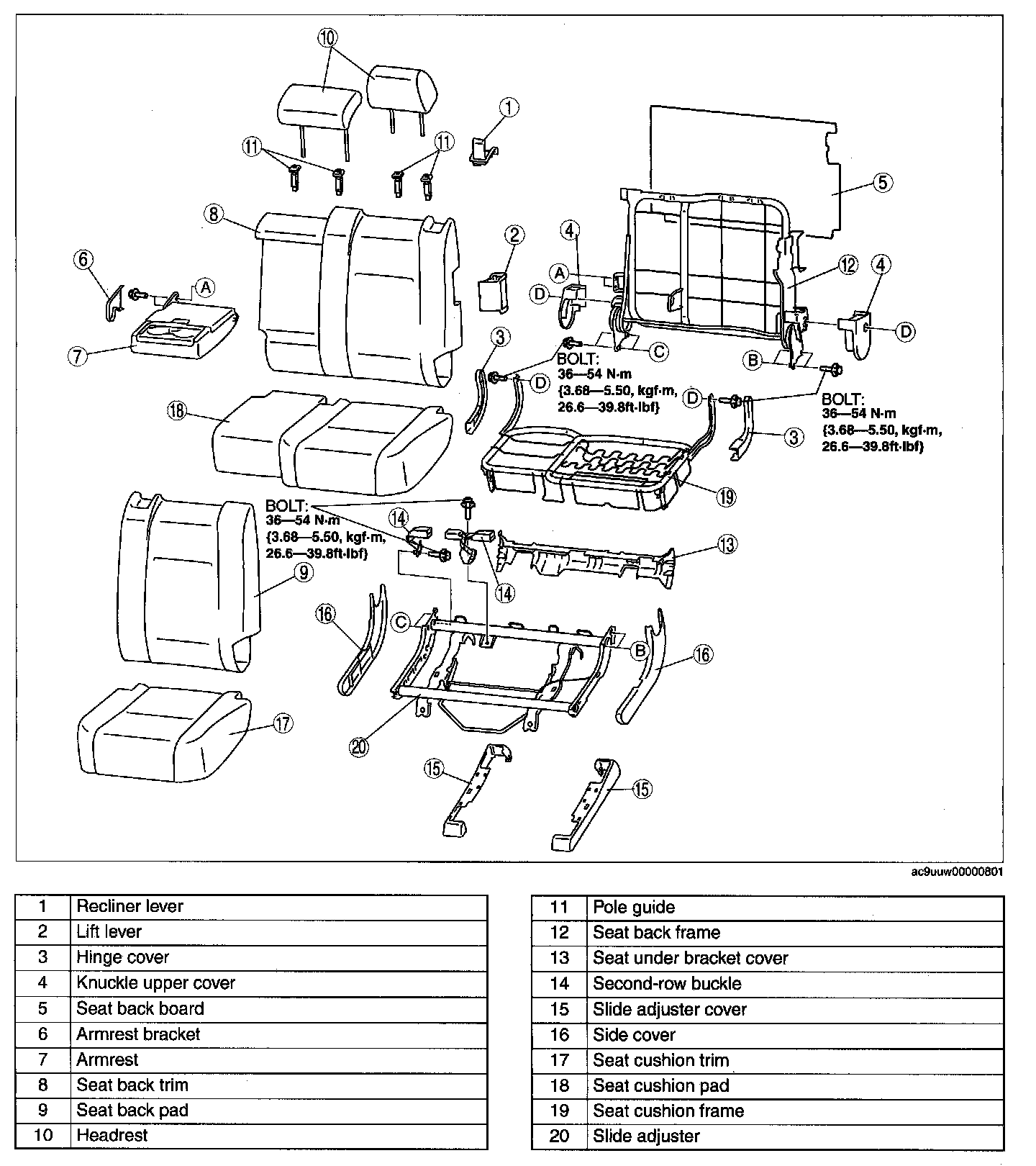

RH
LH
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
RH
