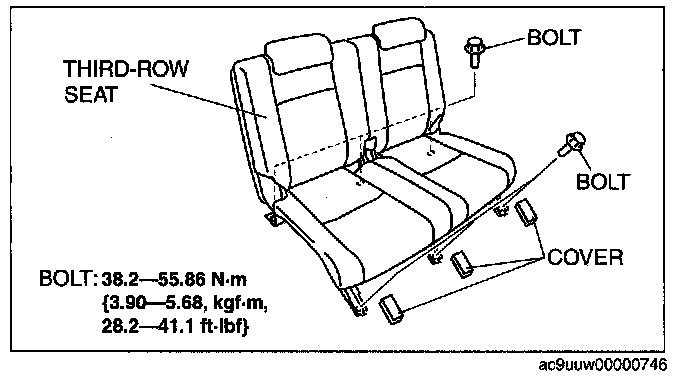

Third-Row Seat Removal/Installation

THIRD-ROW SEAT REMOVAL/INSTALLATION






1. Remove the trunk box.
2. Remove the covers.
3. Remove the bolts.
4. Install in the reverse order of removal.
