Rear

Disc Plate Thickness Inspection

Caution
^ Excessive runout may result if the disc plate is removed from the vehicle then machined. Machine the disc plate while installed on the vehicle.

1. Measure the thickness of the disc plate.
^ If the thickness is not within the specification, replace the disc plate.

Minimum rear disc plate thickness 16 mm (0.63 in)

Minimum rear disc plate thickness after machining using a brake lathe on-vehicle 16.8 mm (0.66 in)

Disc Pad Thickness Inspection
1. Jack up the rear of the vehicle and support it with safety stands.
2. Remove the wheels.

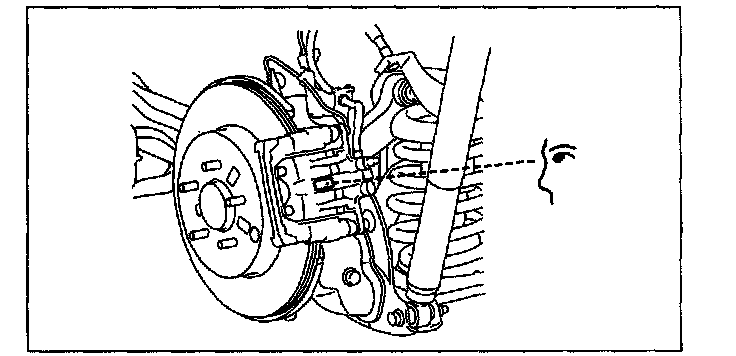

3. Verify the remaining thickness of the pads.
^ Replace the pads as a set: right and left wheels, if either one is at or less than the minimum thickness.

Minimum rear disc pad thickness 2.0 mm (0.08 in)
