Air Register: Service and Repair

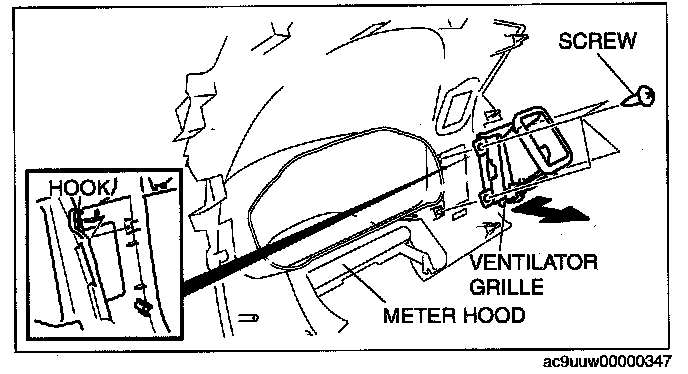

VENTILATOR GRILLE REMOVAL/INSTALLATIONDriver Side
1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Decoration panel
2. Front console box mat
3. Indicator panel
4. Front console box
5. Center panel
6. Upper column cover
3. Remove the screws.
4. Remove the hook.
5. Remove the ventilator grille in the direction of the arrow
6. Install in the reverse order of removal.
Passenger Side
1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Decoration panel
2. Front console box mat
3. Indicator panel
4. Front console box
5. Center panel
6. Side panel
7. Dashboard garnish
3. Remove the screws.
4. Remove the hook.
5. Remove the ventilator grille in the direction of the arrow.
6. Install in the reverse order of removal.

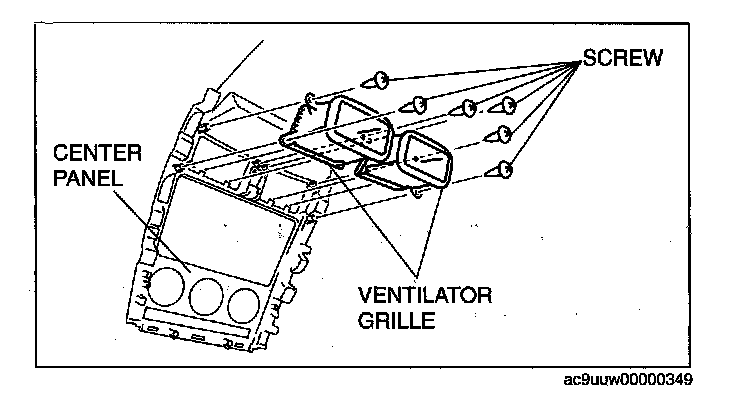

Center
1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Decoration panel
2. Front console box mat
3. Indicator panel
4. Front console box
5. Center panel
3. Remove the screws
4. Remove the ventilator grille.
5. Install in the reverse order of removal.

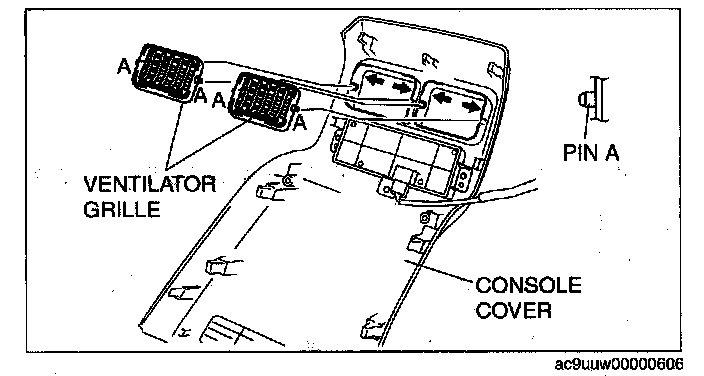

Rear
1. Disconnect the negative battery cable.
2. Remove the console cover.
3. Remove the rear cooler duct.
4. Detach the pins A while holding the console cover.
5. Remove the ventilator grille in the direction of the arrow.
6. Install in the reverse order of removal.
