Rear Evaporator Temperature Sensor

REAR EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Decoration panel.
2. Front console box mat.
3. Indicator panel.
4. Front console box.
5. Side wall.
6. Dashboard under cover.
7. Console panel.
8. Console cover.
9. Console.

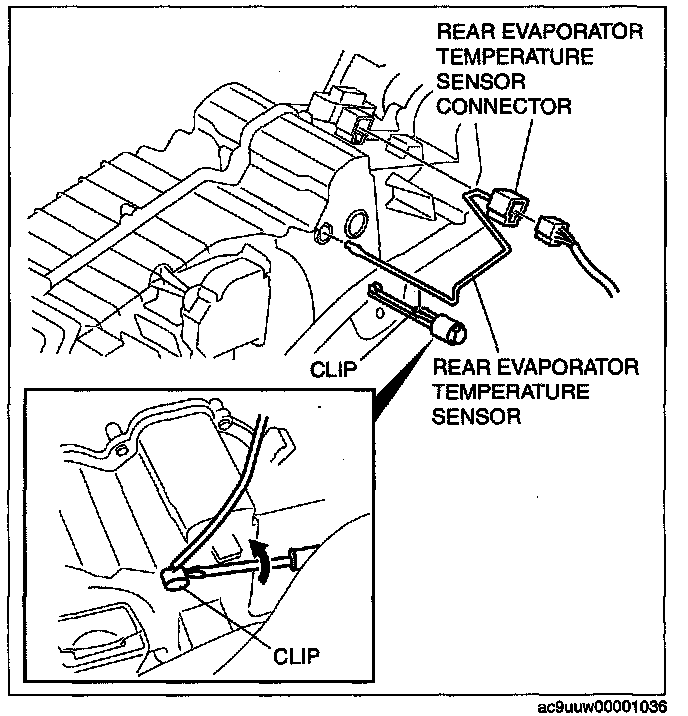

3. Disconnect the rear evaporator temperature sensor connector and remove it from the rear A/C unit.
4. Insert a flathead screwdriver as shown in the figure and remove the clip by prying it off.
5. Remove the rear evaporator temperature sensor.
6. Install in the reverse order of removal.
