Rear Power Metal Oxide Semiconductor Field Effect Transistor (Power MOS FET)

REAR POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Decoration panel.
2. Front console box mat.
3. Indicator panel.
4. Front console box.
5. Dashboard under cover.
6. Side wall.
7. Console panel.
8. Console cover.
9. Console.

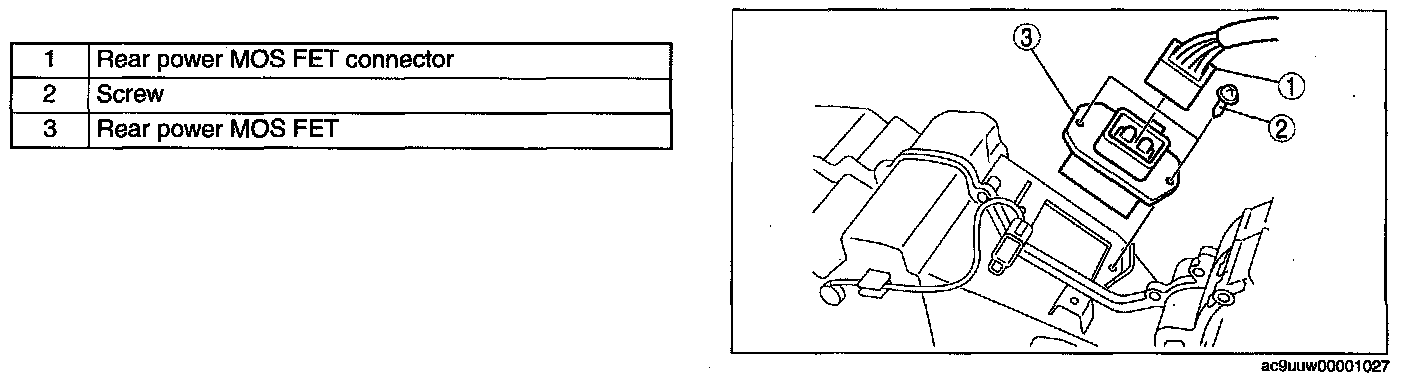

3. Remove in the order indicated in the table.






4. Install in the reverse order of removal.
