No.4 No Temperature Control With Front Climate Control Unit
No.4 No Temperature Control With Front Climate Control Unit

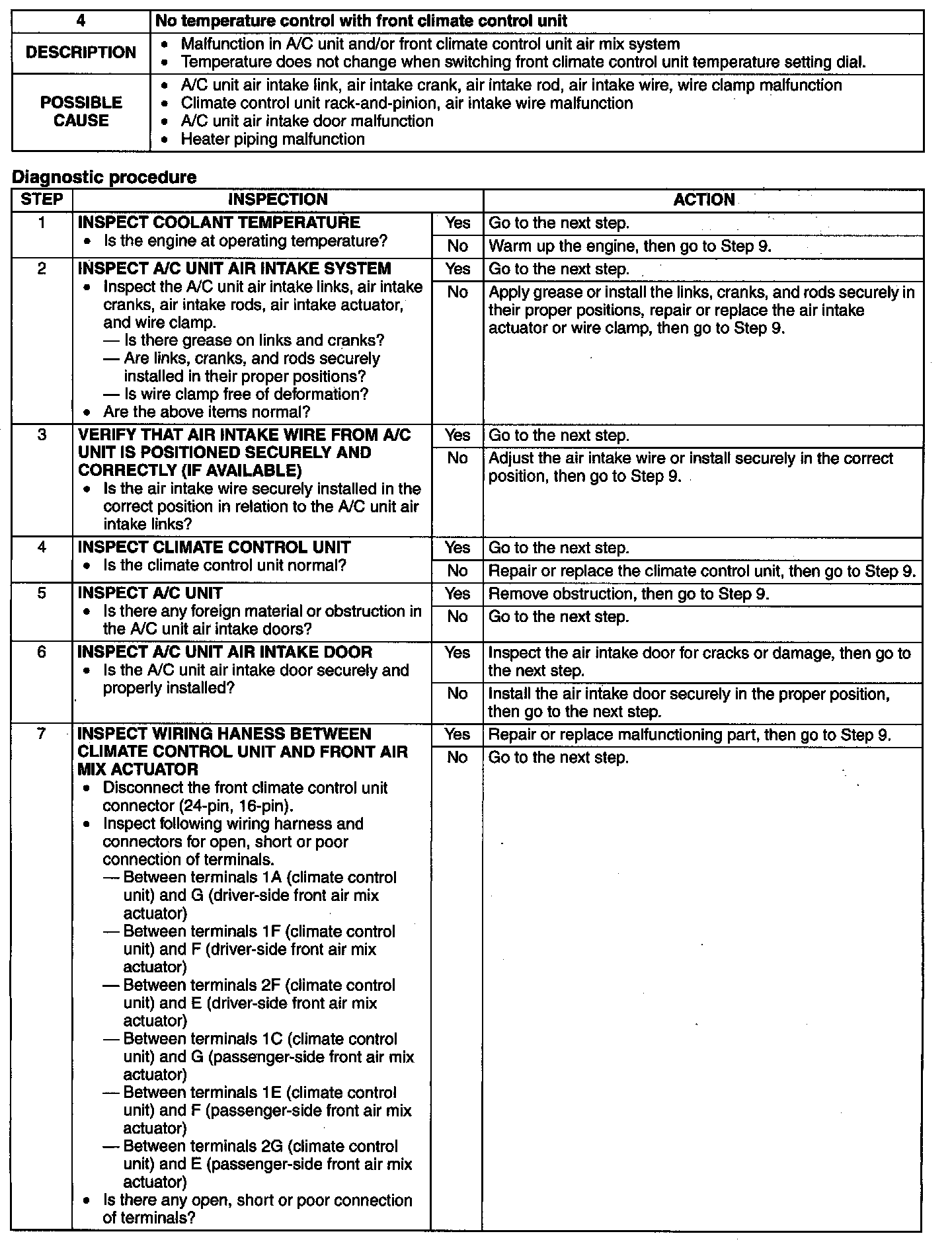

Step 1-Step 7:

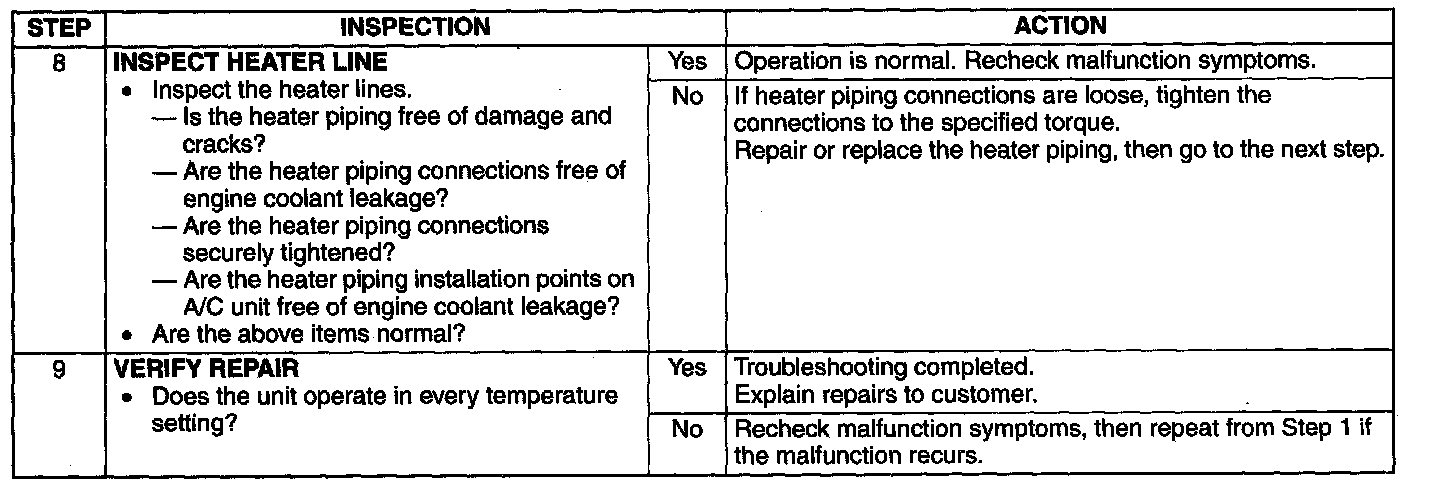

Step 8-Step 9:
