Fog/Driving Lamp Switch: Testing and Inspection

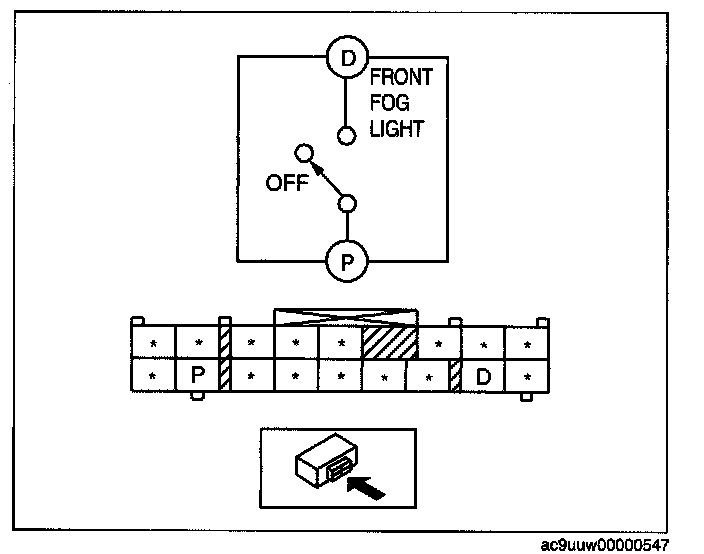

FRONT FOG LIGHT SWITCH INSPECTION

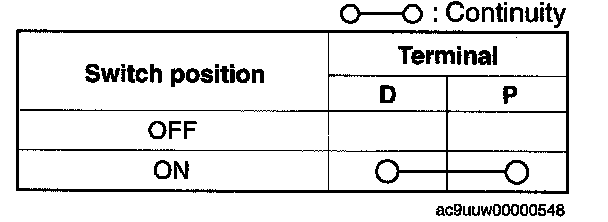

1. Verify that continuity between the front fog light switch terminals is as indicated in the table.
