Key Cylinder Lamp: Service and Repair
IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATIONVehicles Without Advanced Keyless System
1. Disconnect the negative battery cable.
2. Pull the upper column cover upward and detach the upper column cover from the lower column cover.
3. Put aside the upper column cover.

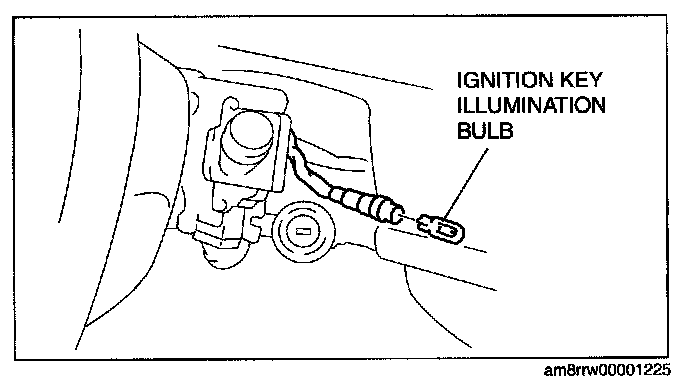

4. Remove the ignition key illumination bulb.
5. Install in the reverse order of removal.
Vehicles With Advanced Keyless System
1. Disconnect the negative battery cable.
2. Remove the lower column cover.
3. Remove the coil antenna.

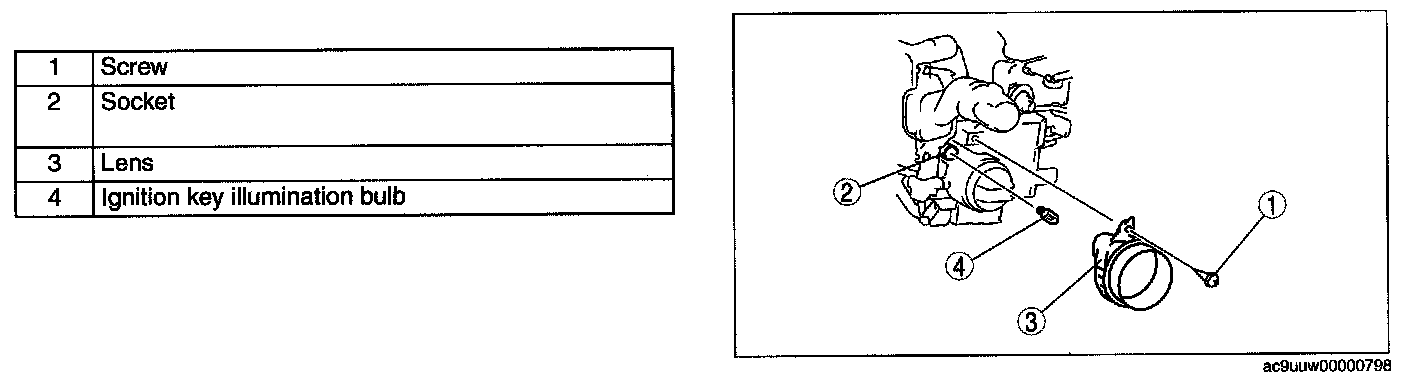

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
Socket Removal Note

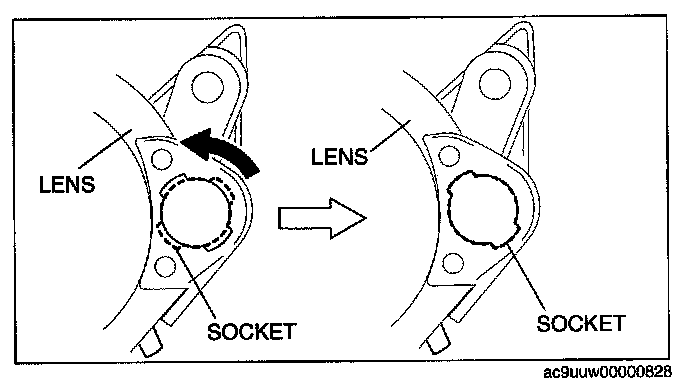

1. Remove the socket by turning it in the direction shown by the arrow.
