Vanity Lamp: Testing and Inspection

VANITY MIRROR ILLUMINATION INSPECTION

1. Remove the sunvisor.

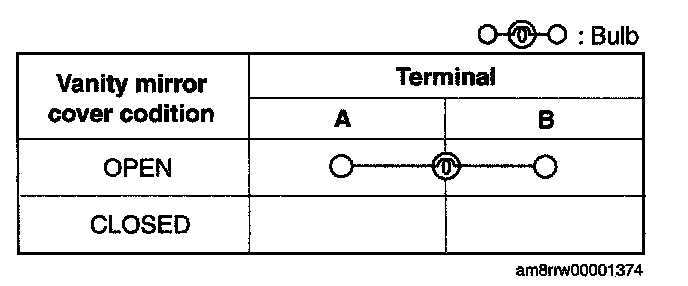

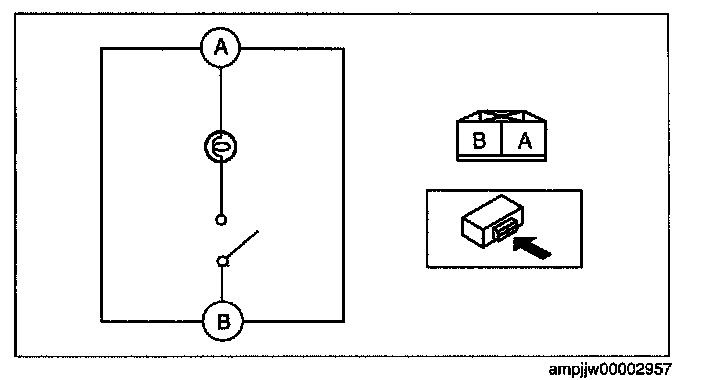

2. Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.
- If not as indicated in the table, inspect the bulb. If there is no malfunction, replace the sunvisor.
