Specification (Unloaded)

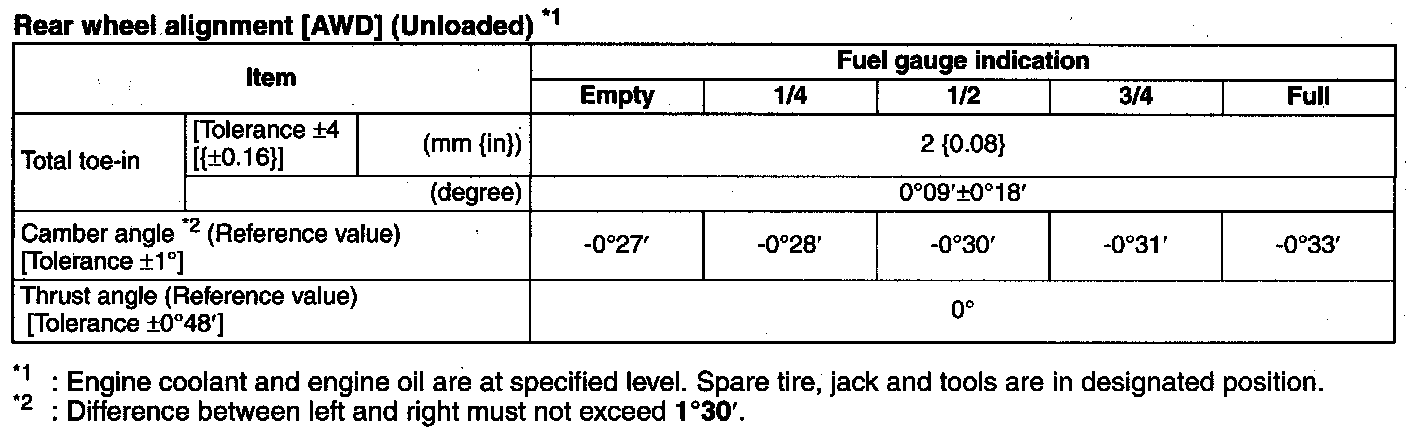

Rear wheel alignment [AWD] (Unloaded) *1

Rear wheel alignment [AWD] (Unloaded) *1:
