Power Supply Socket

POWER SUPPLY SOCKET REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove auxiliary terminal unit panel.

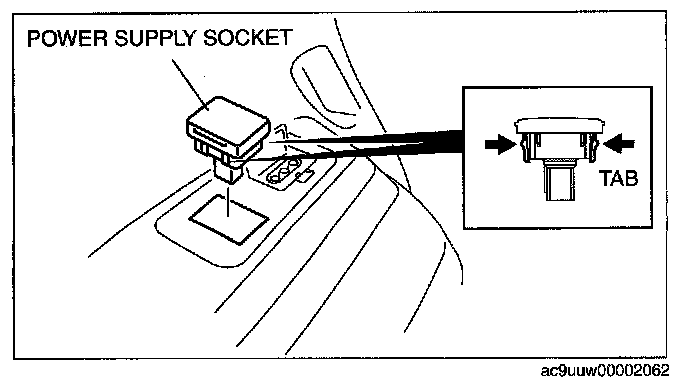

3. Press the tabs, pull the power supply socket outward, and then remove it.
4. Install in the reverse order of removal.
