No.5 Engine Stalls-After Start/At Idle
No.5 Engine Stalls-After Start/At Idle

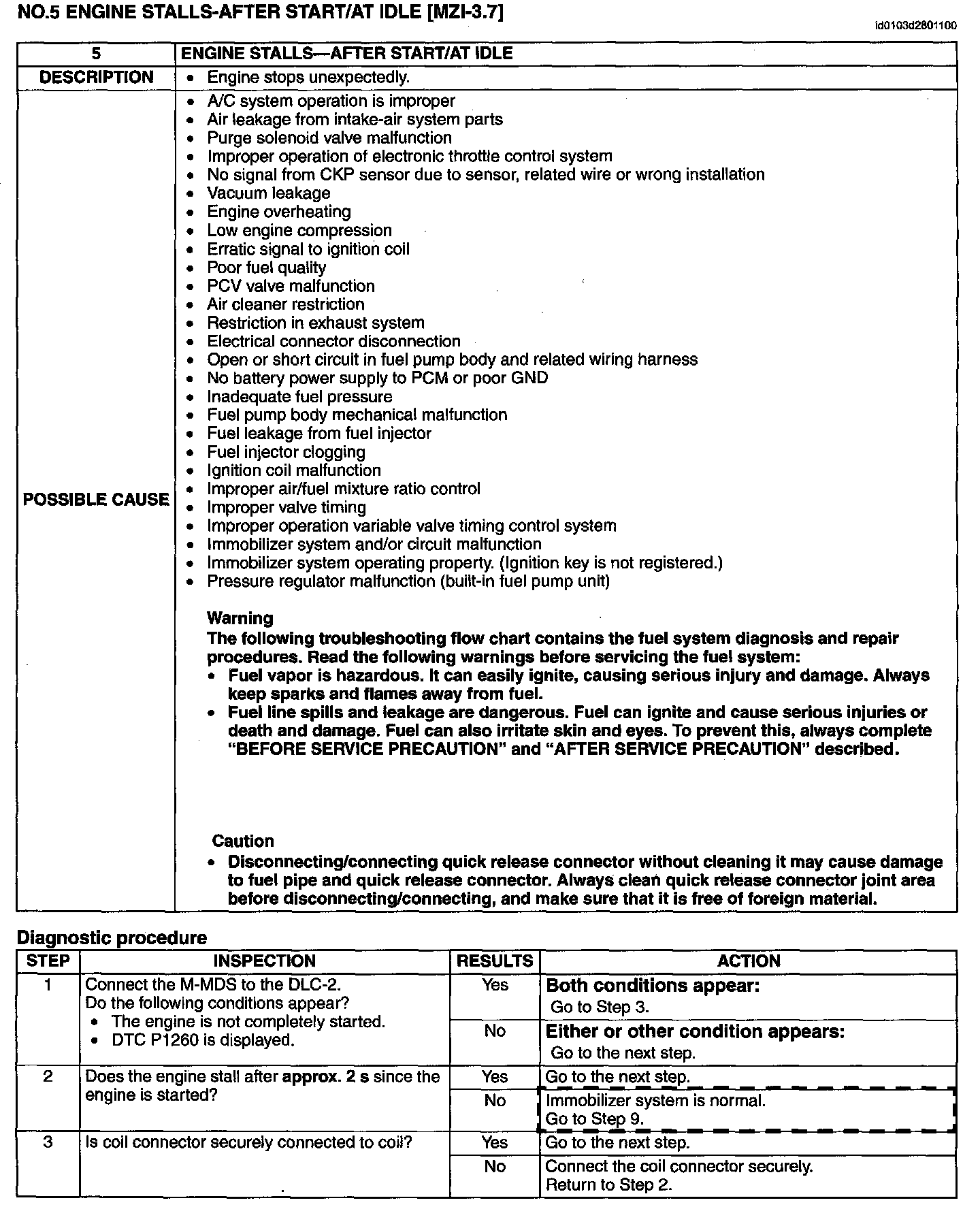

Step 1-Step 3:

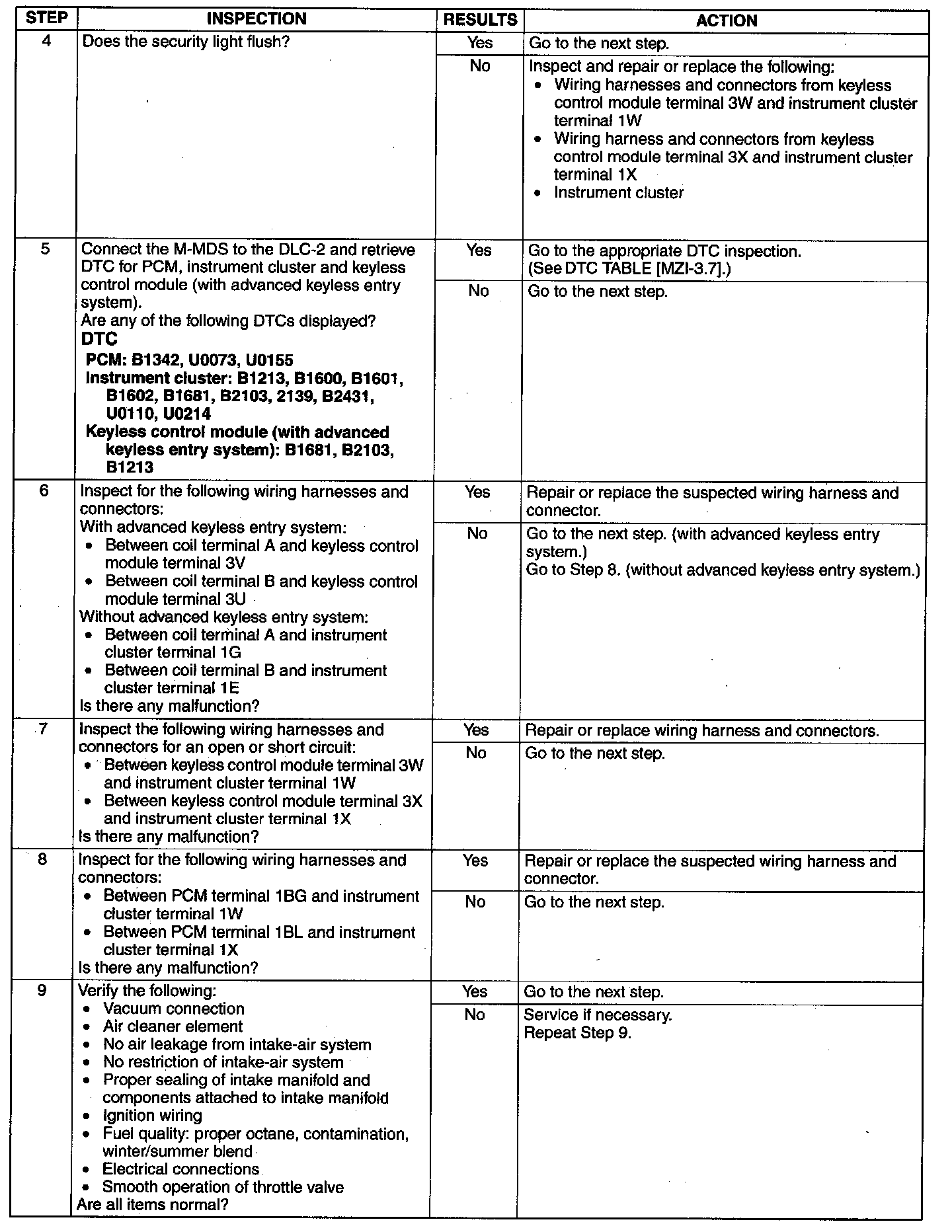

Step 4-Step 9:
Step 10-Step 17:

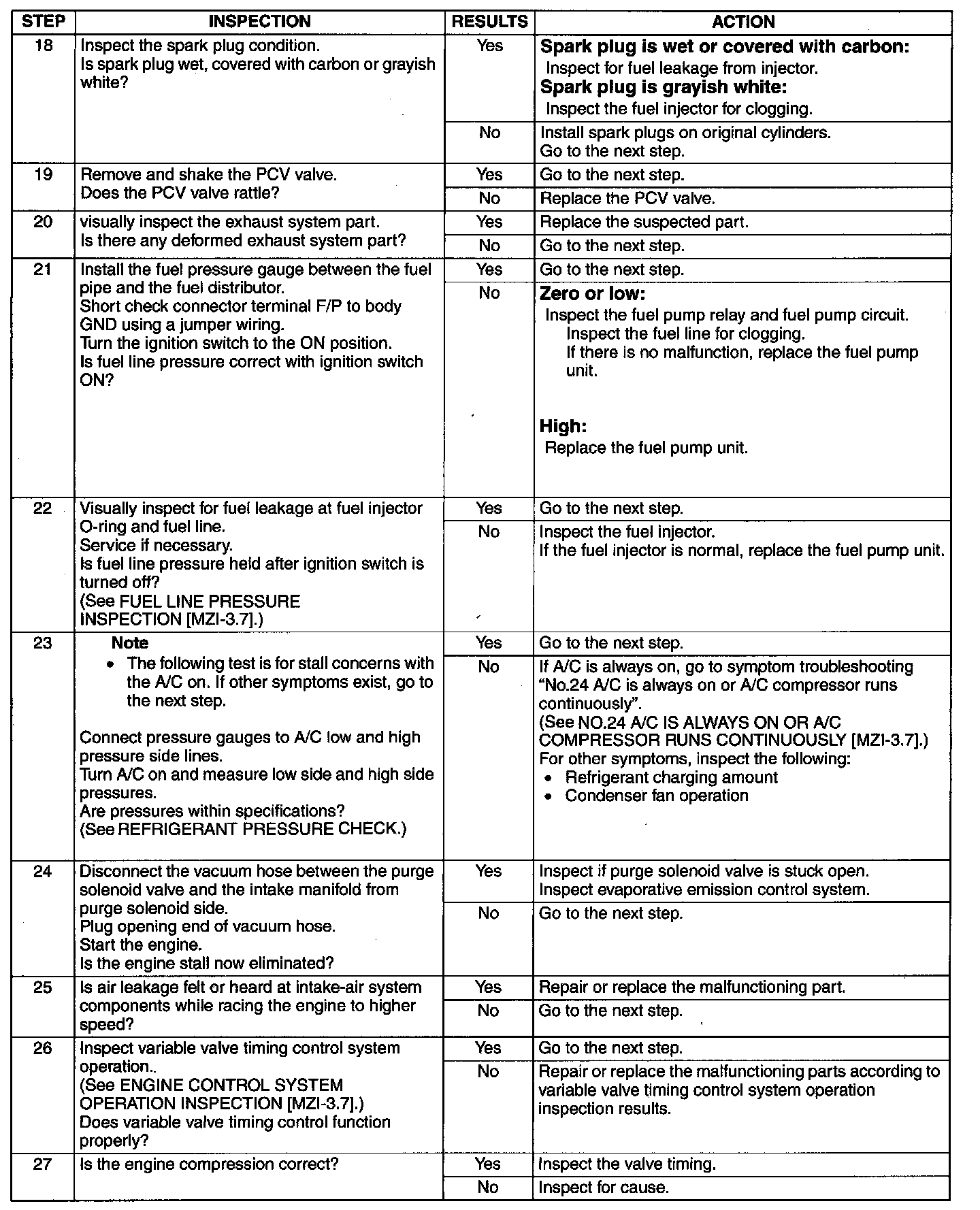

Step 18-Step 27:

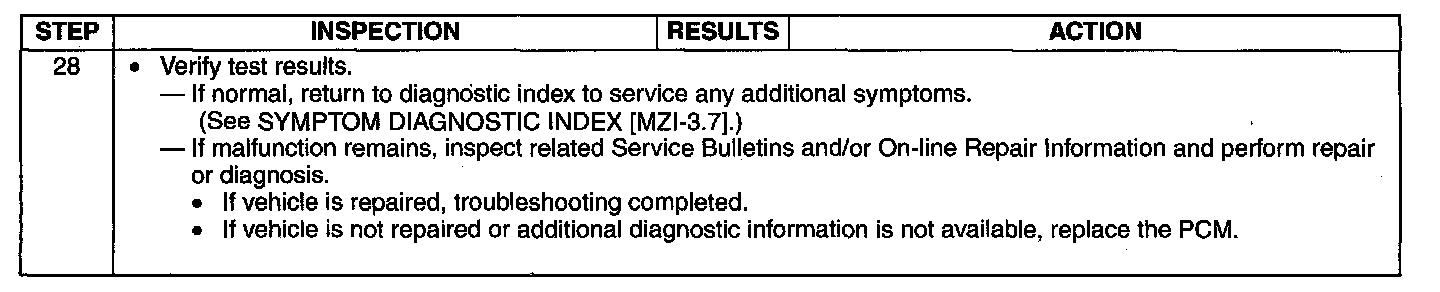

Step 28:
