Canister Purge Control Valve: Service and Repair

CHARCOAL CANISTER, CANISTER VENT (CV) SOLENOID VALVE, AIR FILTER COMPONENT REMOVAL/ INSTALLATION [MZI-3.7]

1. Disconnect the negative battery cable.

NOTE: Remove the charcoal canister, CV solenoid valve, and air filter as a single unit.

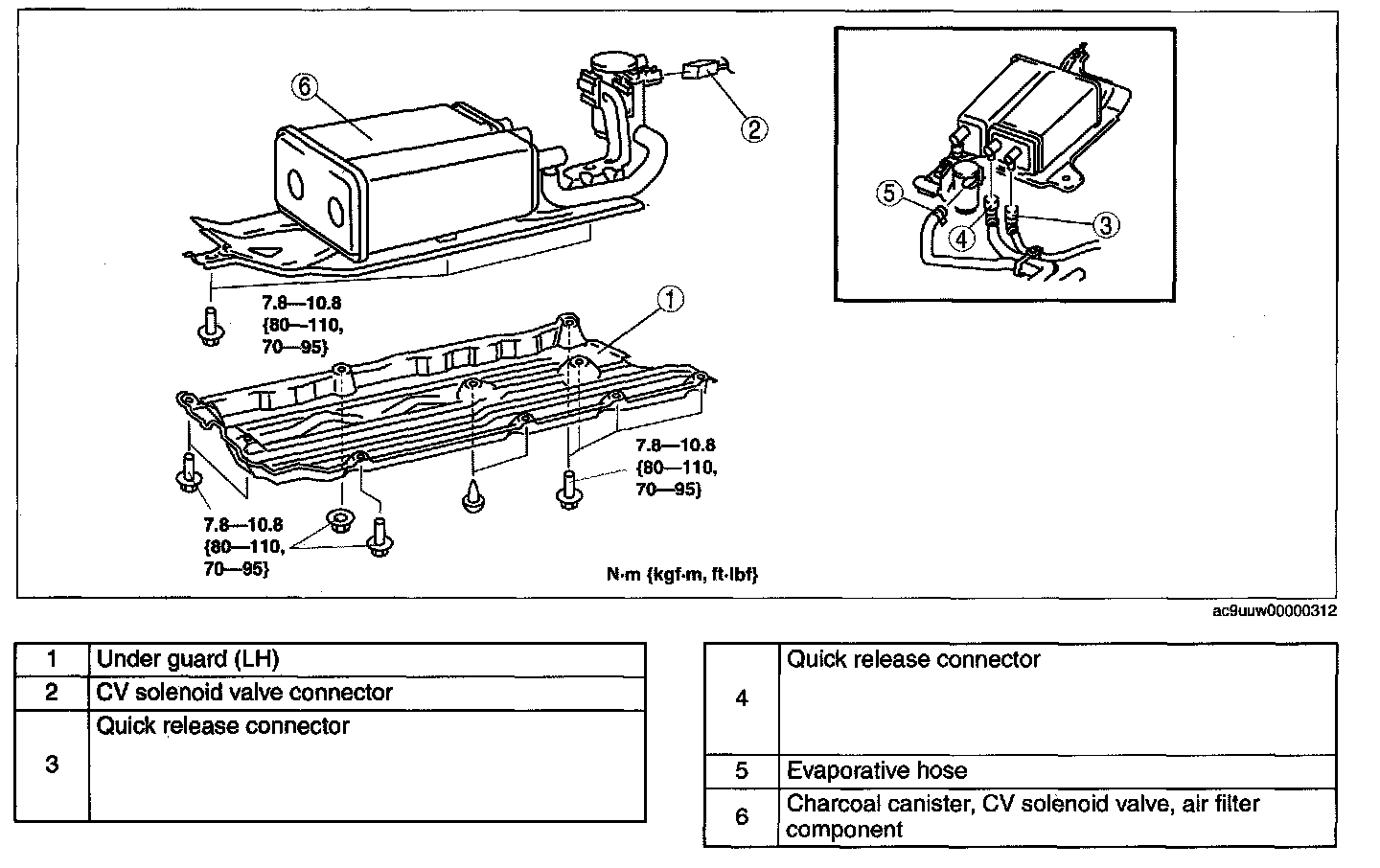

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
