[AW6A-El, AW6AX-El] Automatic Transmission/Transaxle

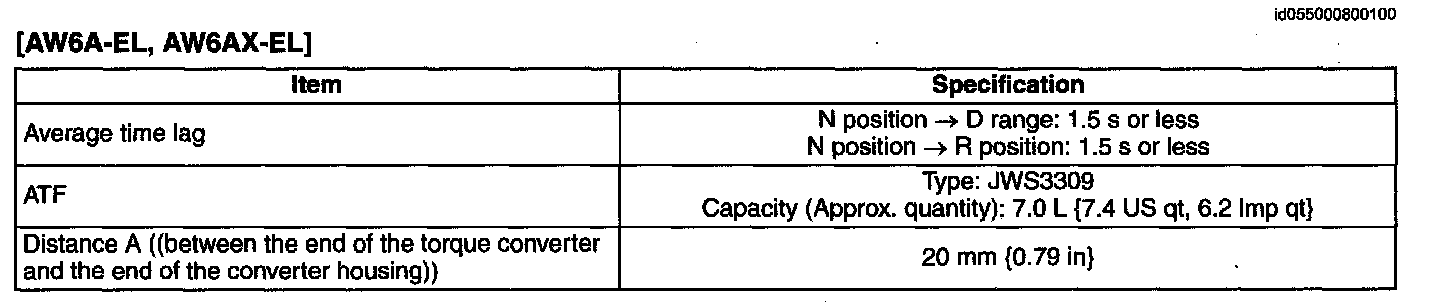

[AW6A-EL, AW6AX-EL]

[AW6A-EL, AW6AX-EL]:

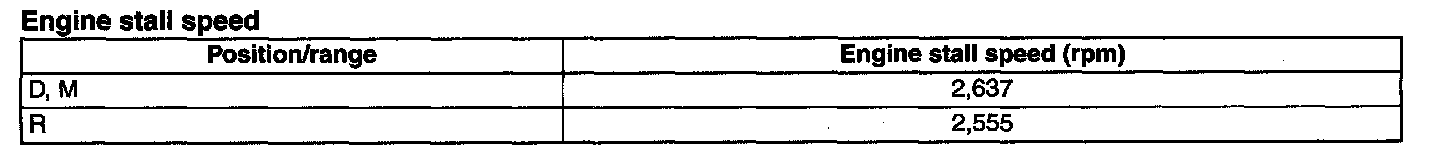

Engine Stall Speed

Engine Stall Speed:

Drive Plate





Tighten the new drive plate mounting bolts in two or three steps in the order shown.
Tightening torque
Tighten to 73 - 87 Nm (7.5 - 8.8 kgf-m, 53.9 - 64.1 ft-lbf)

Fluid Pan





Install the new control valve body cover with new seal bolts.
Tightening torque
9.8 - 15.7 Nm (100 - 160 kgf-cm, 87 - 138 in-lbf)
