Procedures
DIFFERENTIAL OIL REPLACEMENT1. Place the vehicle on level ground.

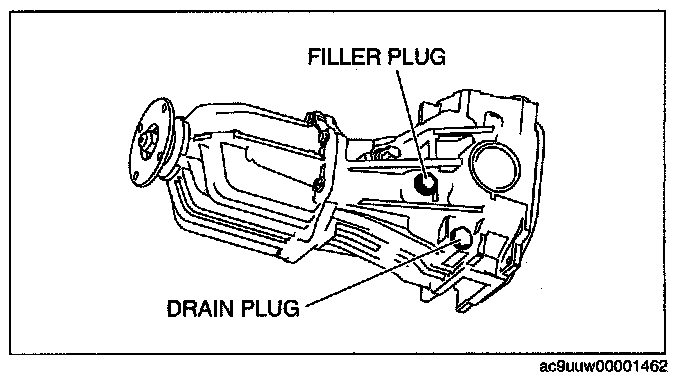

2. Remove the filler plug.
3. Remove the drain plug and drain the differential oil into a container.
4. Install a new washer and the drain plug, and tighten.
Tightening torque
39.2 - 53.9 Nm (4.0 - 5.4 kgf-m, 29.0 - 39.7 ft-lbf)
5. Add the specified differential oil from the filler plug until the level reaches the brim of the plug hole.
Rear differential oil
Specified oil grade: API service GL-5
Specified oil viscosity: SAE 80W-90
Capacity (approximate quantity): 1.0 L (1.1 US qt, 0.9 Imp qt)
6. After filling with differential oil, perform oil level inspection.
7. Install a new washer and the drain plug, and tighten.
Tightening torque
39.2 - 53.9 Nm (4.0 - 5.4 kgf-m, 29.0 - 39.7 ft-lbf)
