Quick Diagnostic Chart

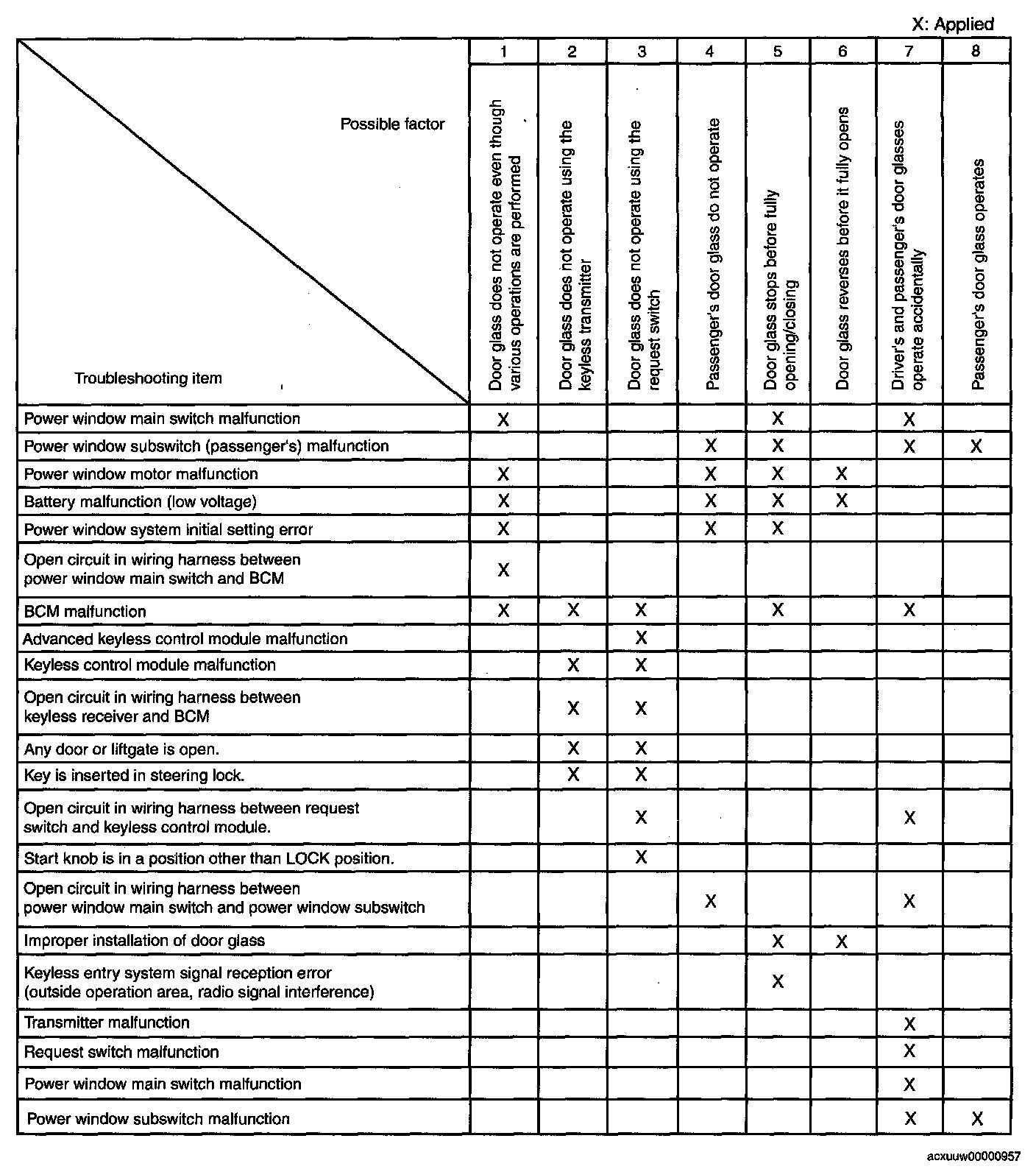

QUICK DIAGNOSTIC CHART [POWER WINDOW SYSTEMS (EXTERIOR OPEN/CLOSE FUNCTION)]

Quick Diagnostic Chart [Power Window Systems (Exterior Open/Close Function)]:

NOTE:
- The exterior open/close function does not operate when the following conditions are met.
- Any door or liftgate is open.
- The key is inserted in the steering lock.
- The start knob is not in the LOCK position.

- The auto-open/close function (the exterior open/close function) does not operate if the power window initialization procedure has been reset.
- Depending on the temperature and battery conditions, the window may reverse on rare occasions.
