Rear Door Window Regulator: Service and Repair

REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Inner sail garnish
2. Rear door trim
3. Rear door speaker
4. Rear door glass
5. Power window motor

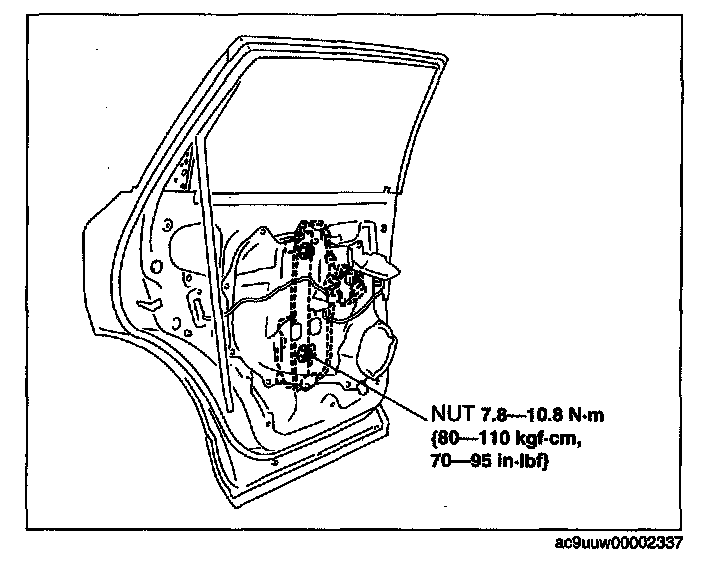

3. Remove the nuts.

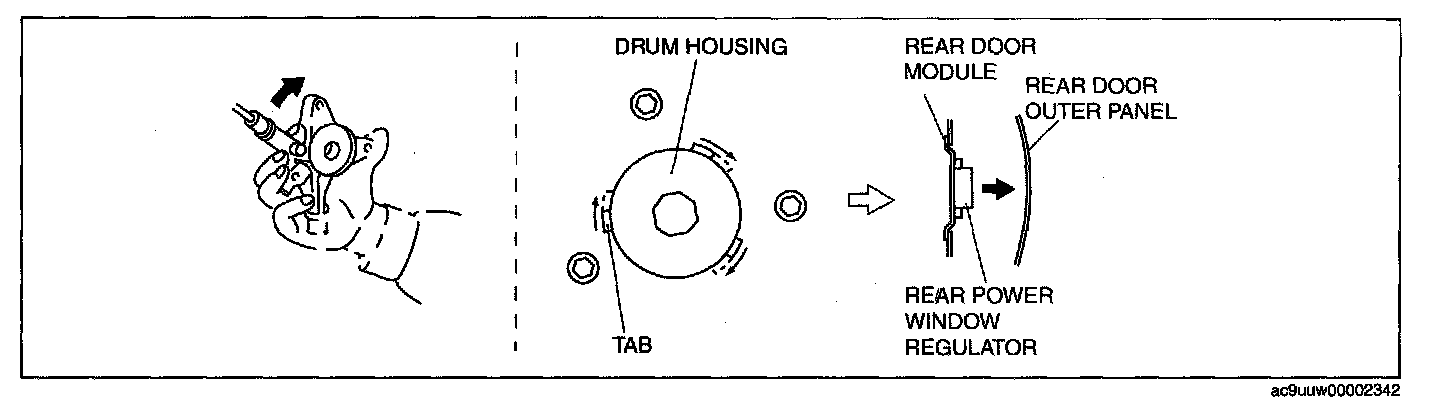

4. Insert a hand through the speaker installation hole, rotate the drum housing in the direction shown in the figure to detach the tabs from the rear door unit.

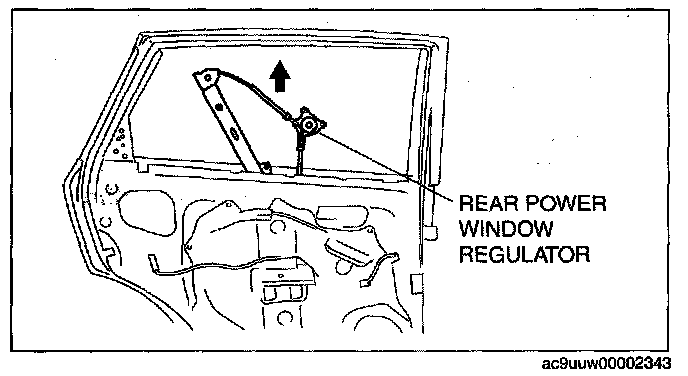

5. Move the rear power window regulator in the direction of the arrow and remove it.
6. Install in the reverse order of removal.

CAUTION: Make sure the cable does not unspool from the drum housing when installing.
