Washer Fluid Level Indicator: Service and Repair

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the front bumper.
3. Remove the washer tank.

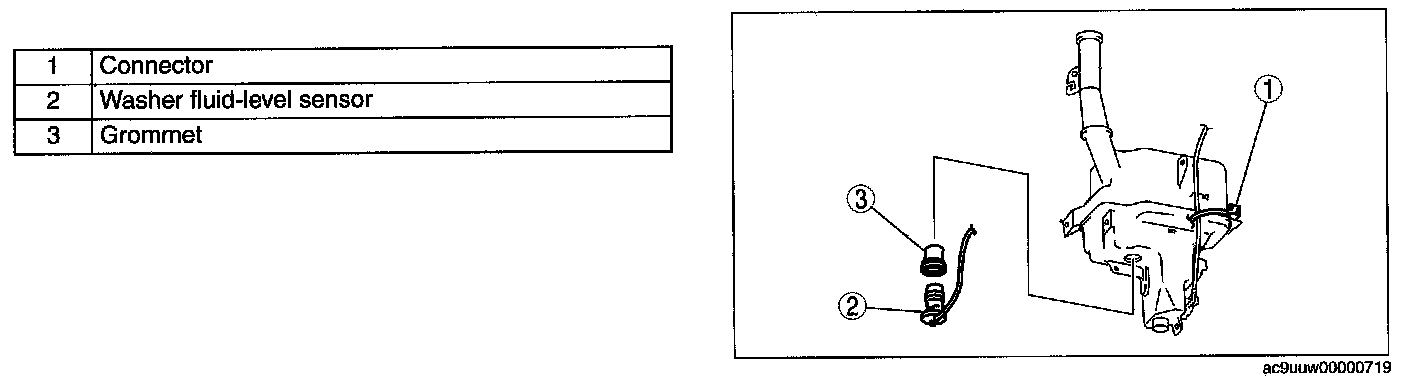

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
