Windshield Washer Switch: Testing and Inspection

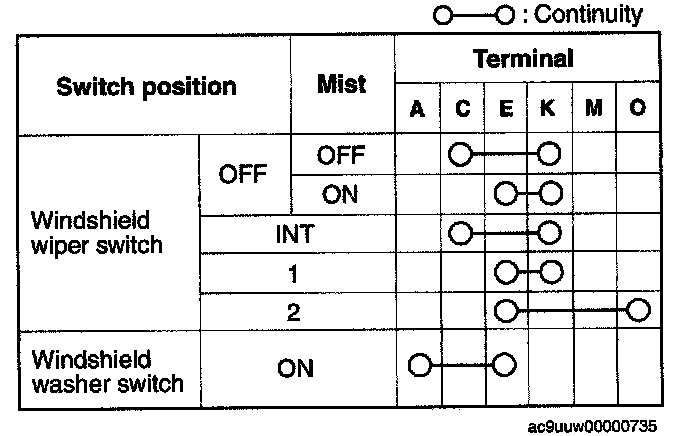

WINDSHIELD WIPER AND WASHER SWITCH INSPECTIONVehicles Without Auto Wiper System
1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.
- Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

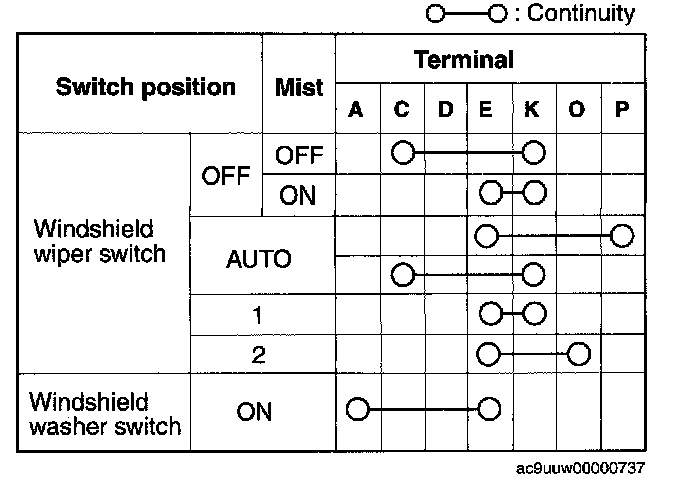

Vehicles With Auto Wiper System
1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.
- Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.
