Diagram 0940-a

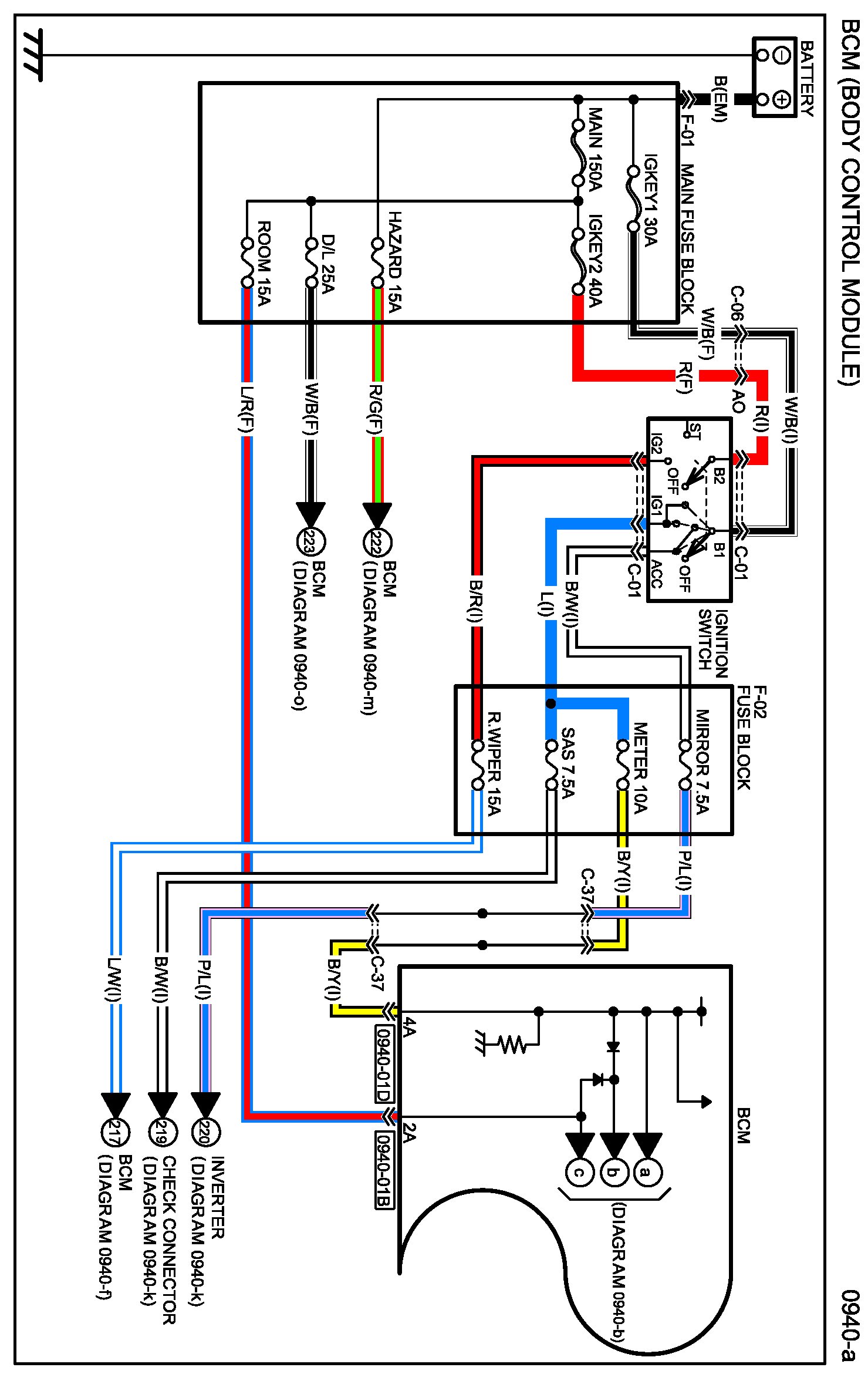

Diagram 0940-a:

Connectors 0940-a:

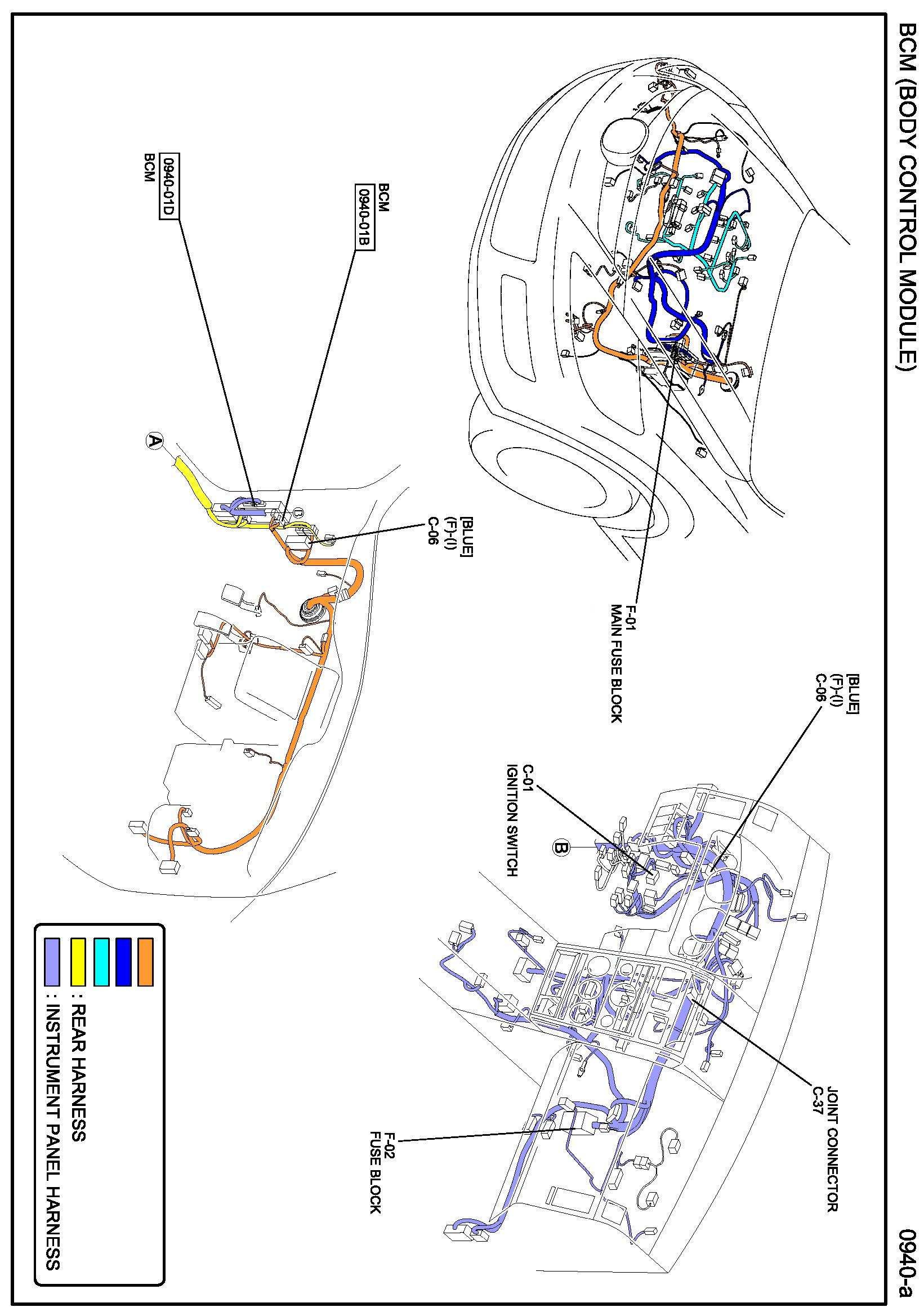

Routing View 0940-a:

Next Diagram Diagram 0940-b

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
