Diagram 0940-d

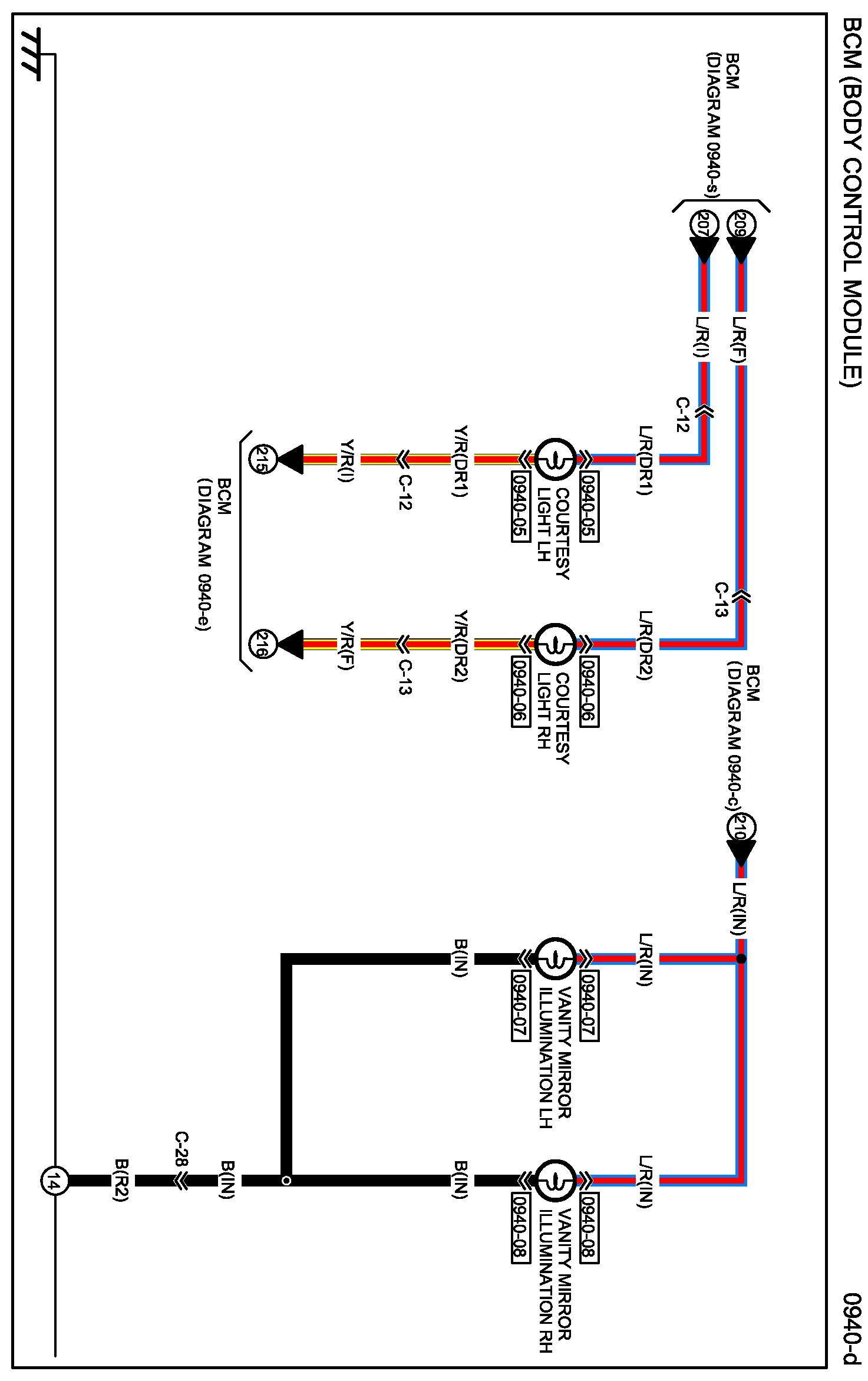

Diagram 0940-d:

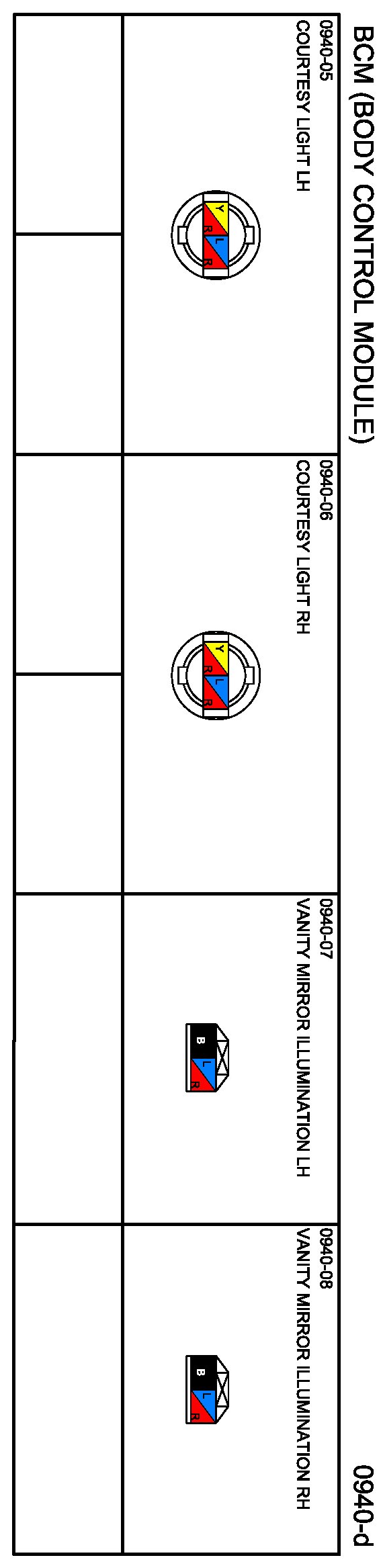

Connectors 0940-d:

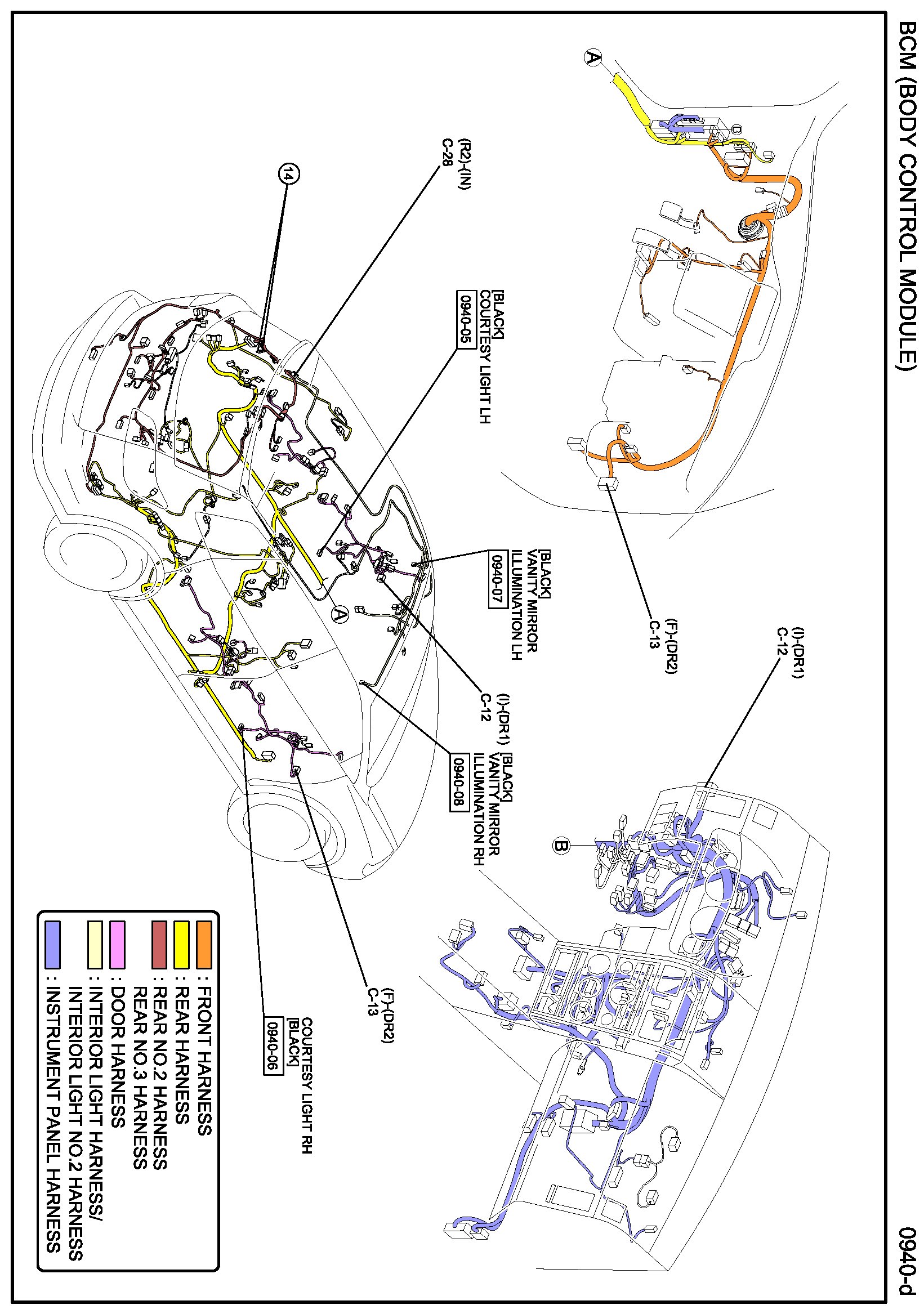

Routing View 0940-d:
Next Diagram Diagram 0940-e
Previous Diagram Diagram 0940-c
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
