Operation CHARM: Car repair manuals for everyone.

Home >> Mazda >> 2008 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Flowchart >> MS-CAN

MS-CAN

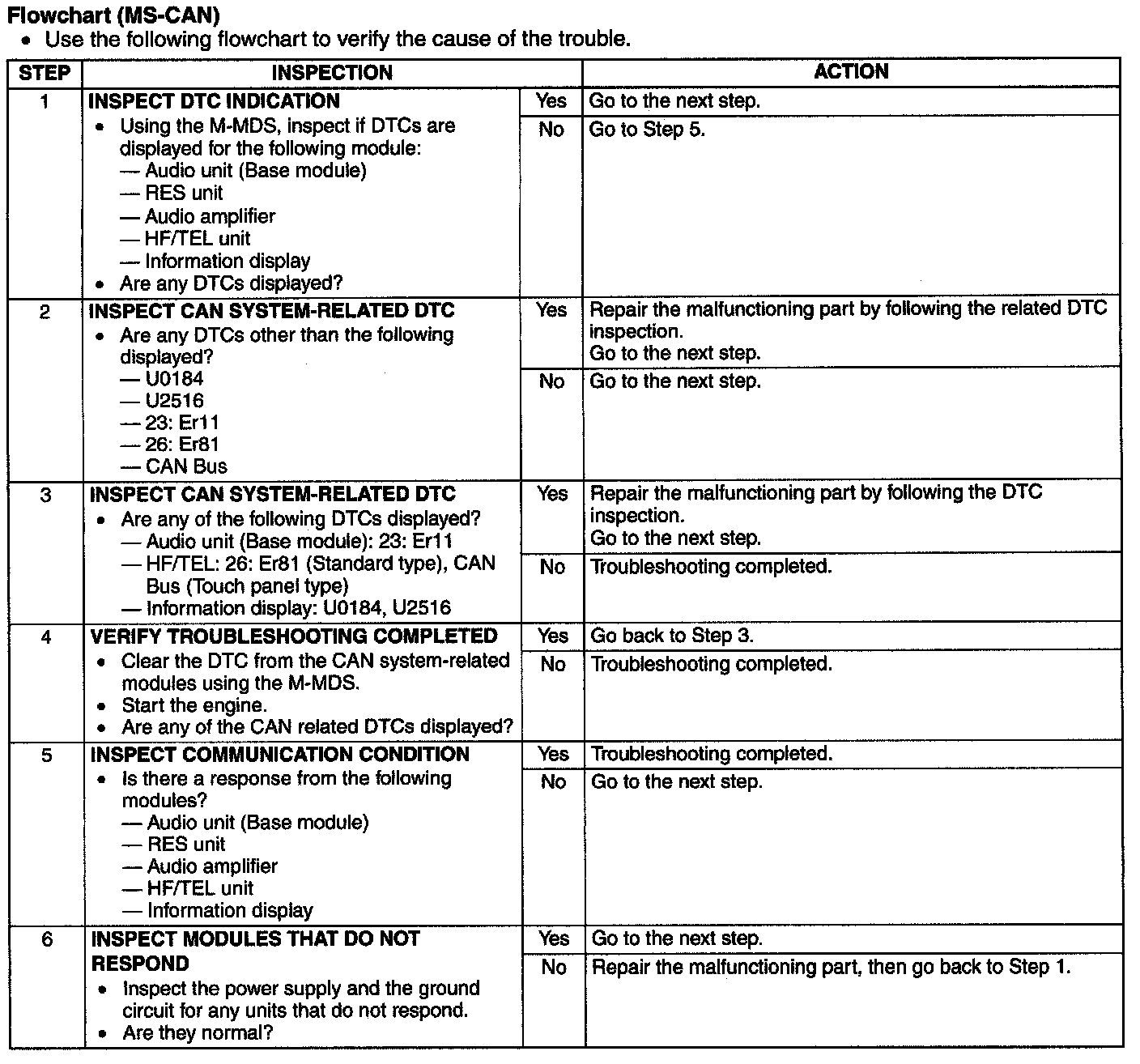

Step 1-Step 6:

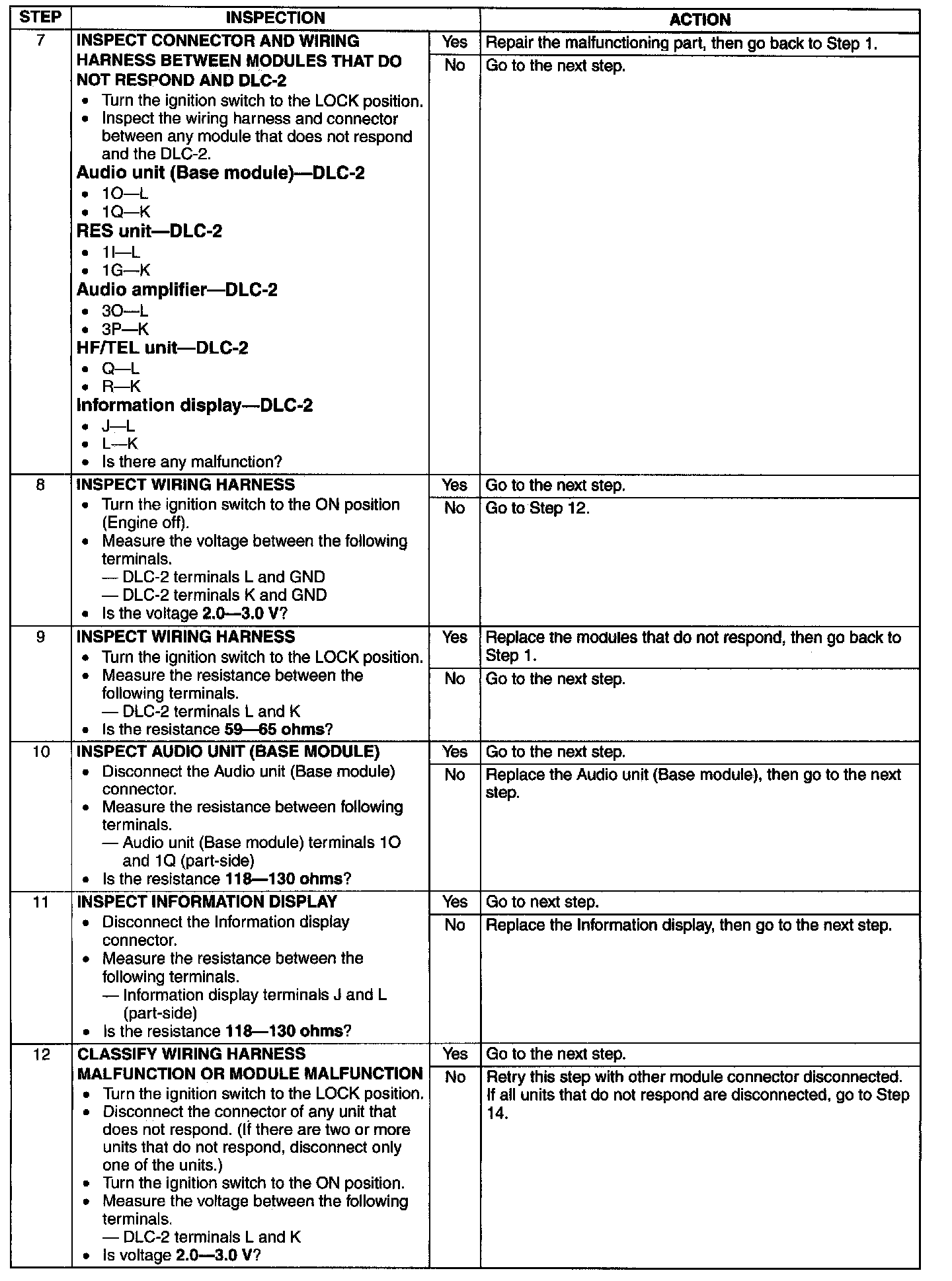

Step 7-Step 12:

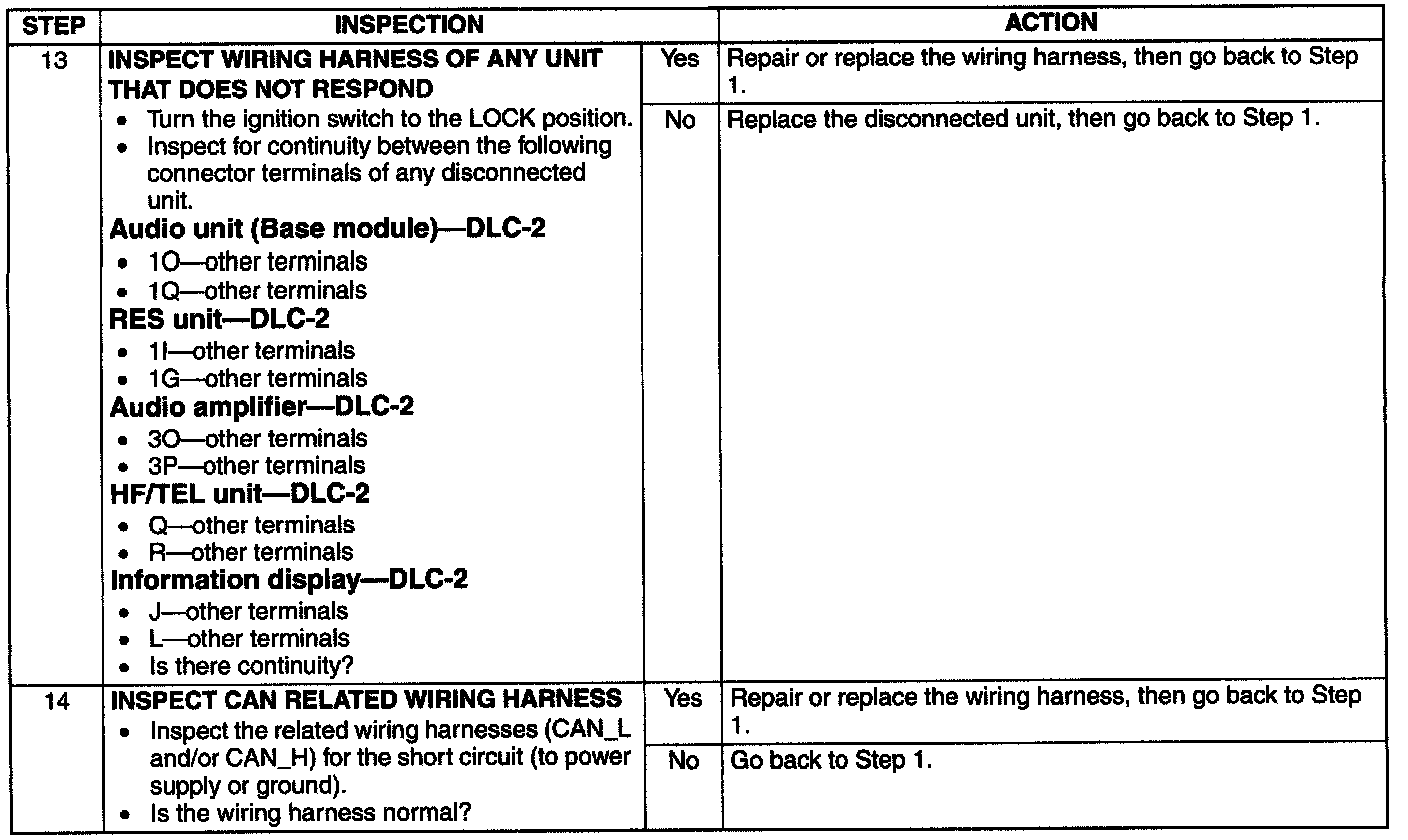

Step 13-Step 14:
