Keyless Entry System
Keyless Entry System

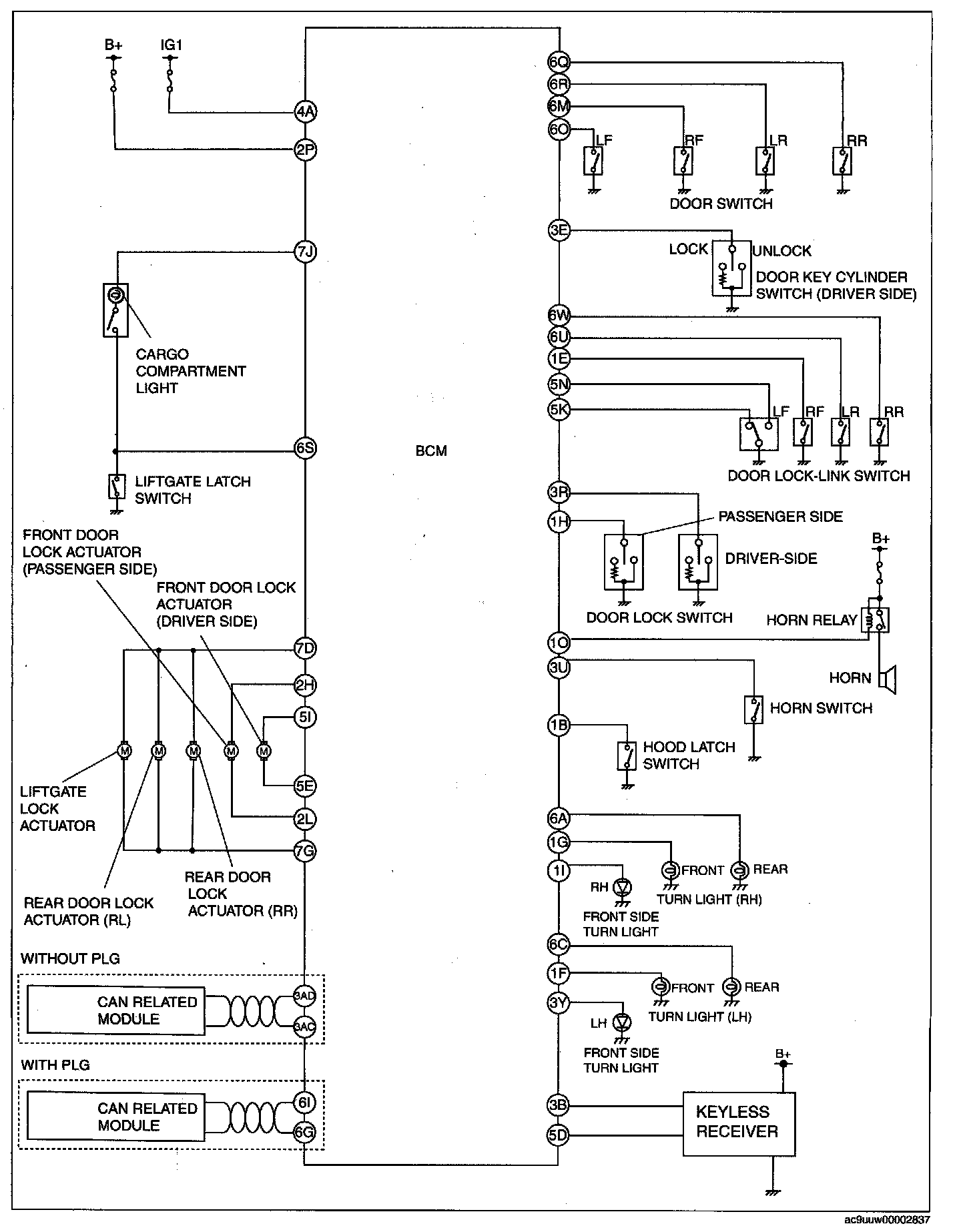

Keyless Entry System Wiring Diagram [Keyless Entry System]:
