Mazda
>>
2008
>>
CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Diagrams
>>
System Schematic
>>
Keyless Entry System Wiring Diagram (Advanced Keyless System)
Keyless Entry System Wiring Diagram (Advanced Keyless System)

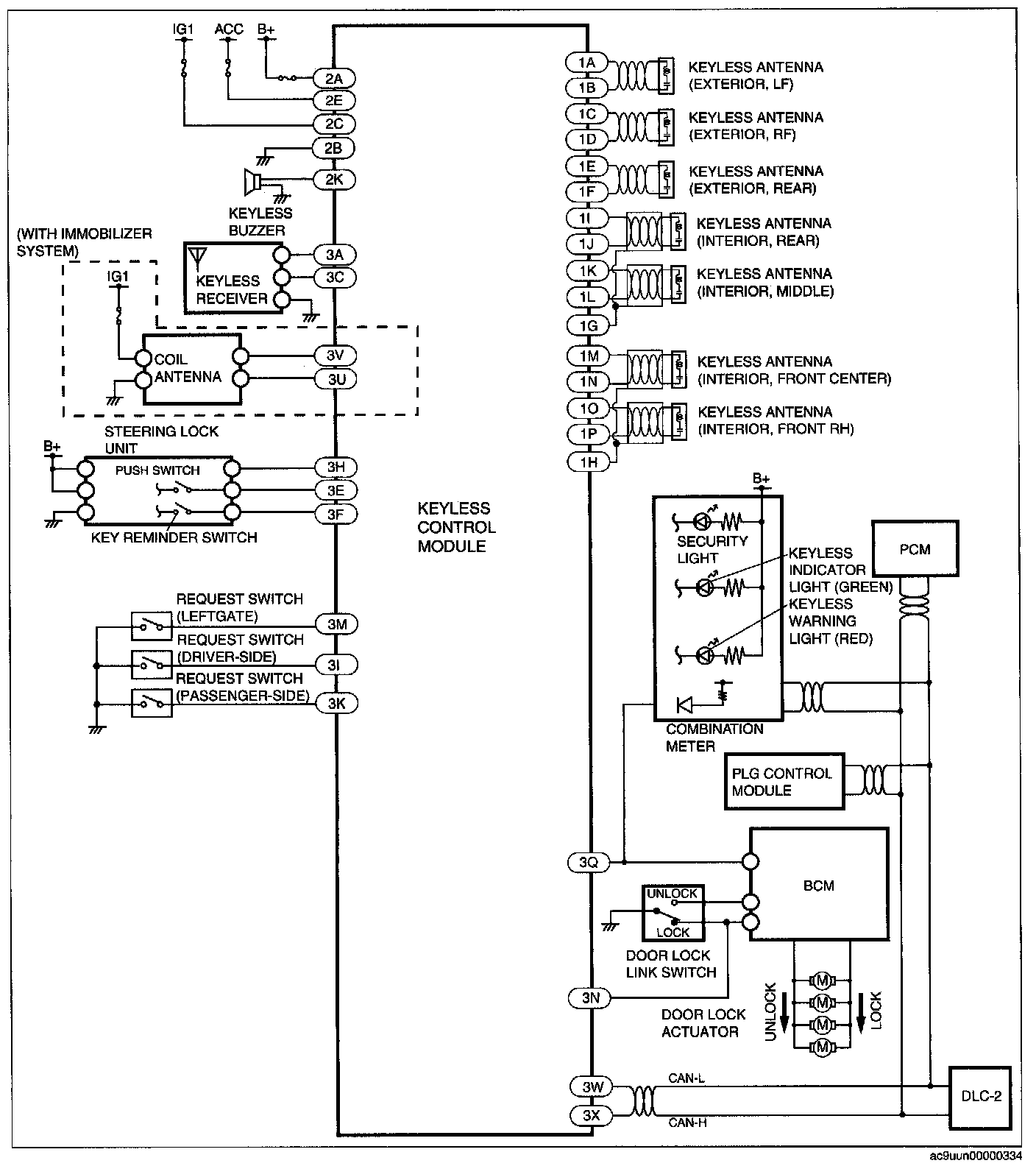

Keyless Entry System Wiring Diagram [Advanced Keyless System]:
