Keyless Entry System Wiring Diagram (Keyless Entry System)
Keyless Entry System Wiring Diagram (Keyless Entry System)

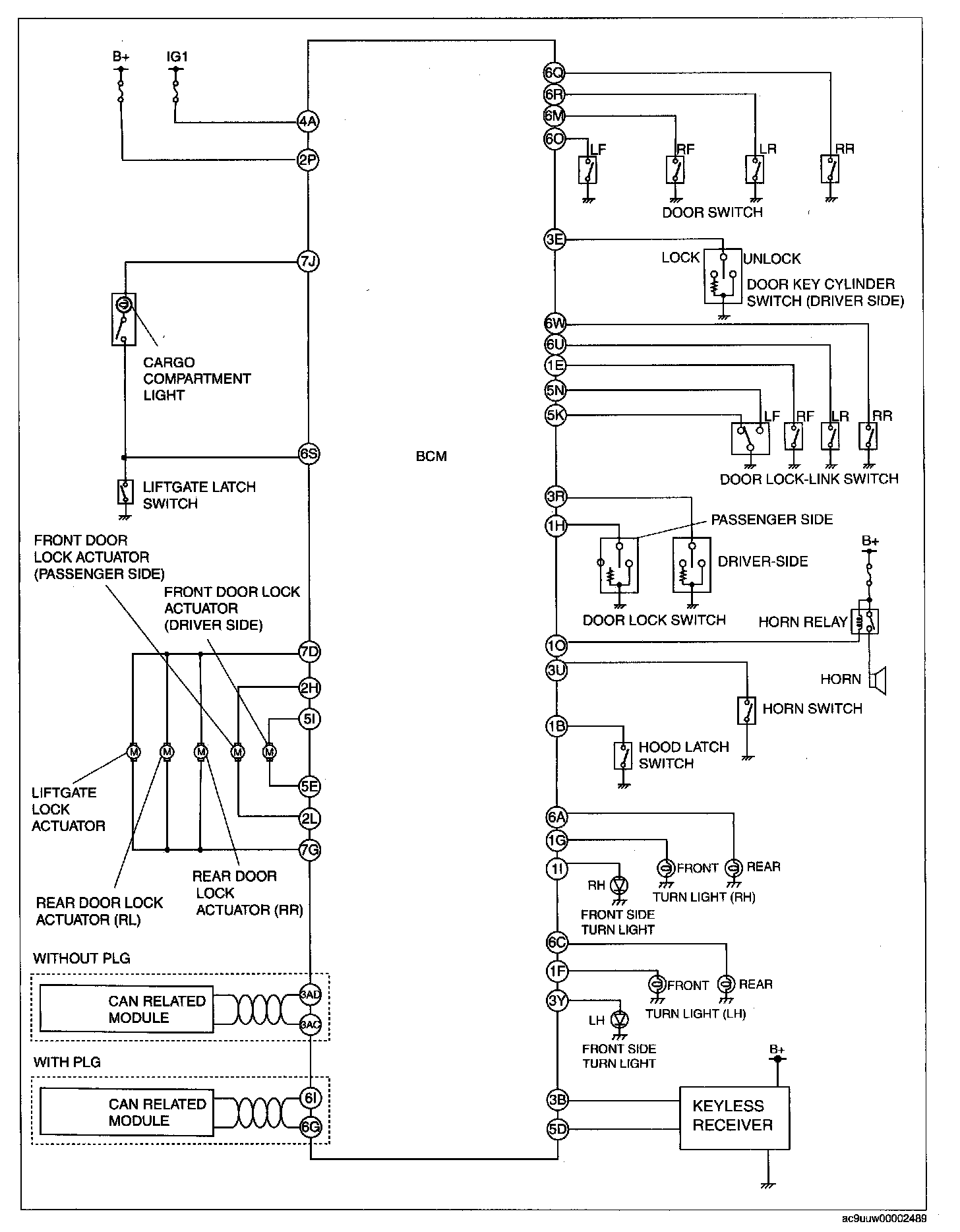

Keyless Entry System Wiring Diagram [Keyless Entry System]:
