PID/Data Monitor Table [Advanced Keyless And Start System]
PID/Data Monitor Table [Advanced Keyless And Start System]

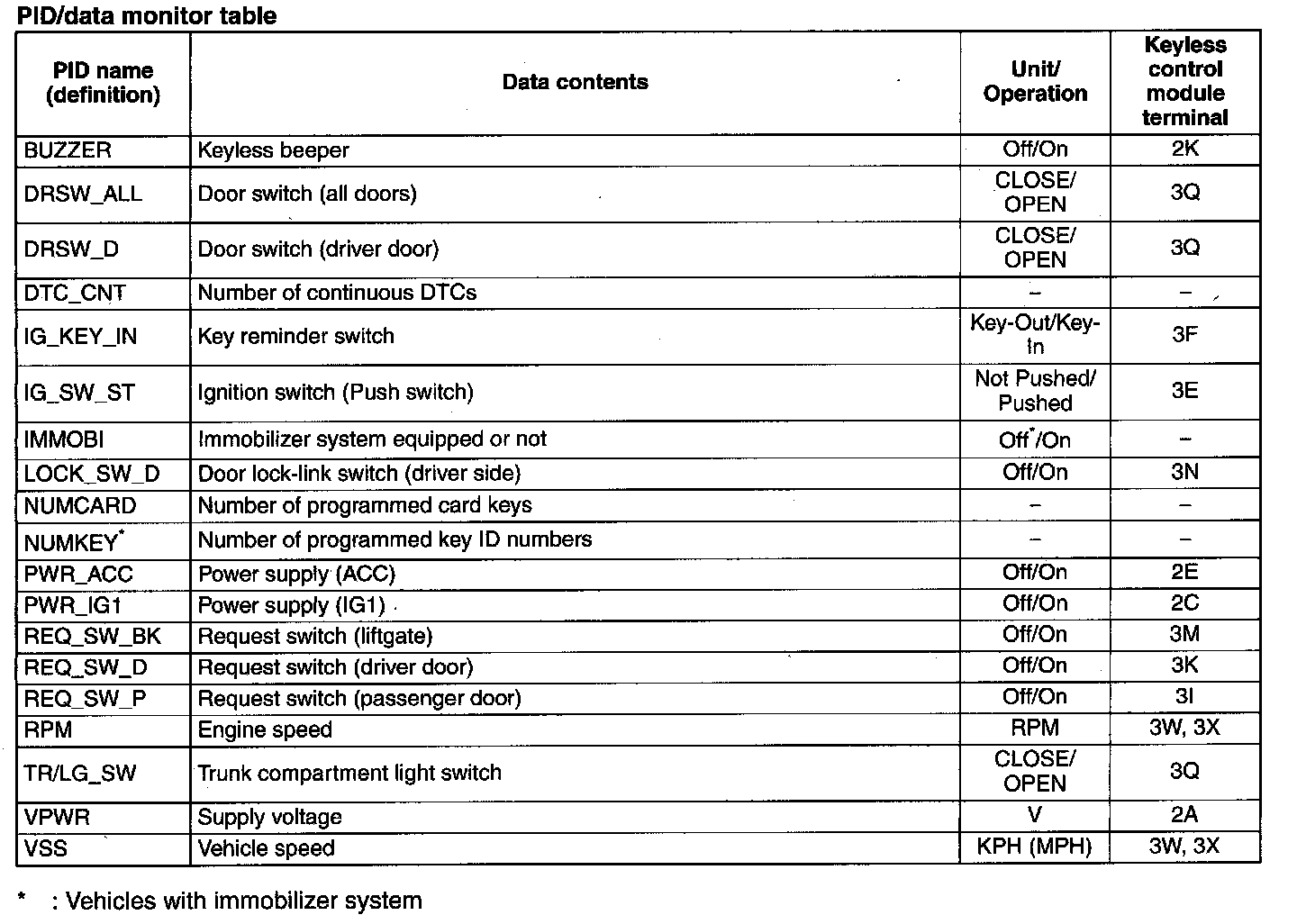

PID/data Monitor Table [Advanced Keyless And Start System]:
