Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 2008 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Advanced Keyless and Start System >> No.4 Advance Keyless Start Function

No.4 Advance Keyless Start Function

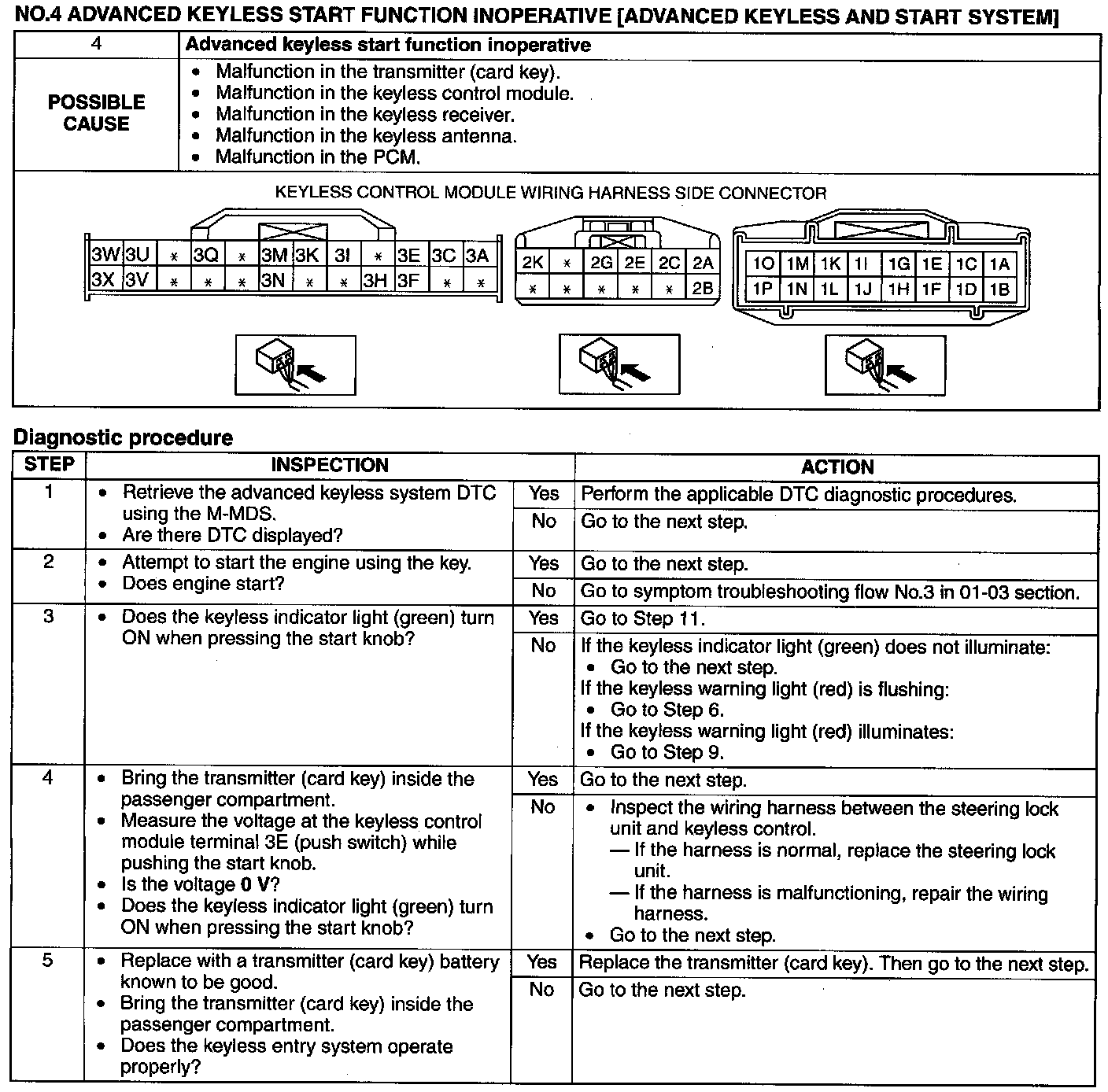

Step 1-Step 5:

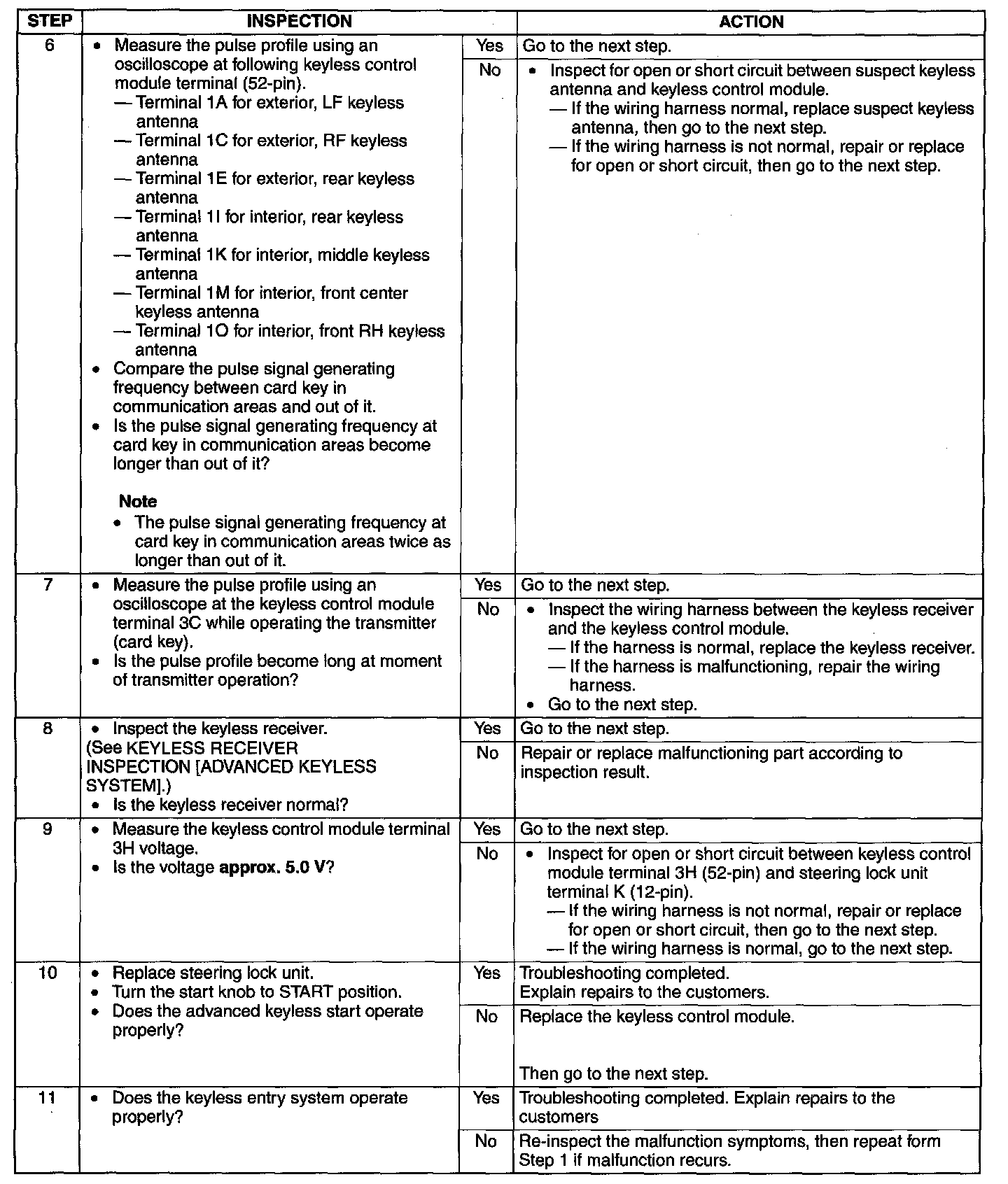

Step 6-Step 11:
