Seat Track: Service and Repair

LONG SLIDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the second-row seat.

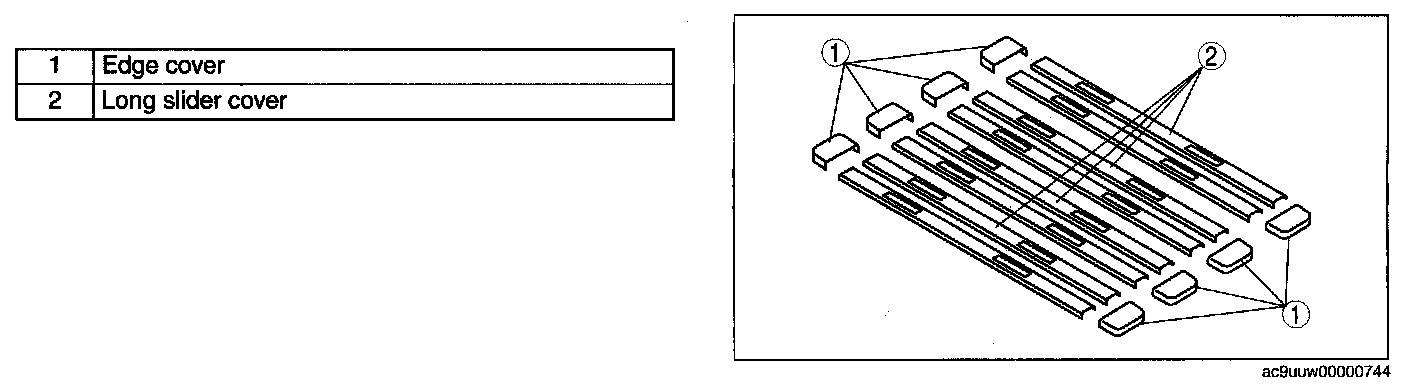

3. Remove in the order indicated in the table.
4. Remove the following parts:
1. Trunk box
2. Seat side box
3. Trunk end trim
4. Third-row seat
5. Rear scuff plate inner
6. Third-row seat belt lower anchor installation bolt
7. Trunk side trim

5. Set the floor covering out of the way.

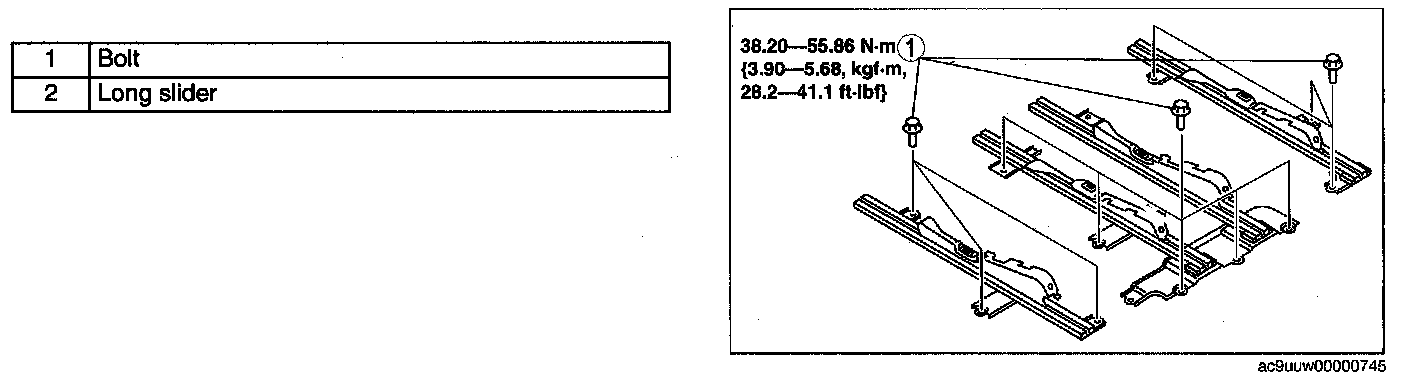

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
