Power Window Main Switch
Power Window Main Switch

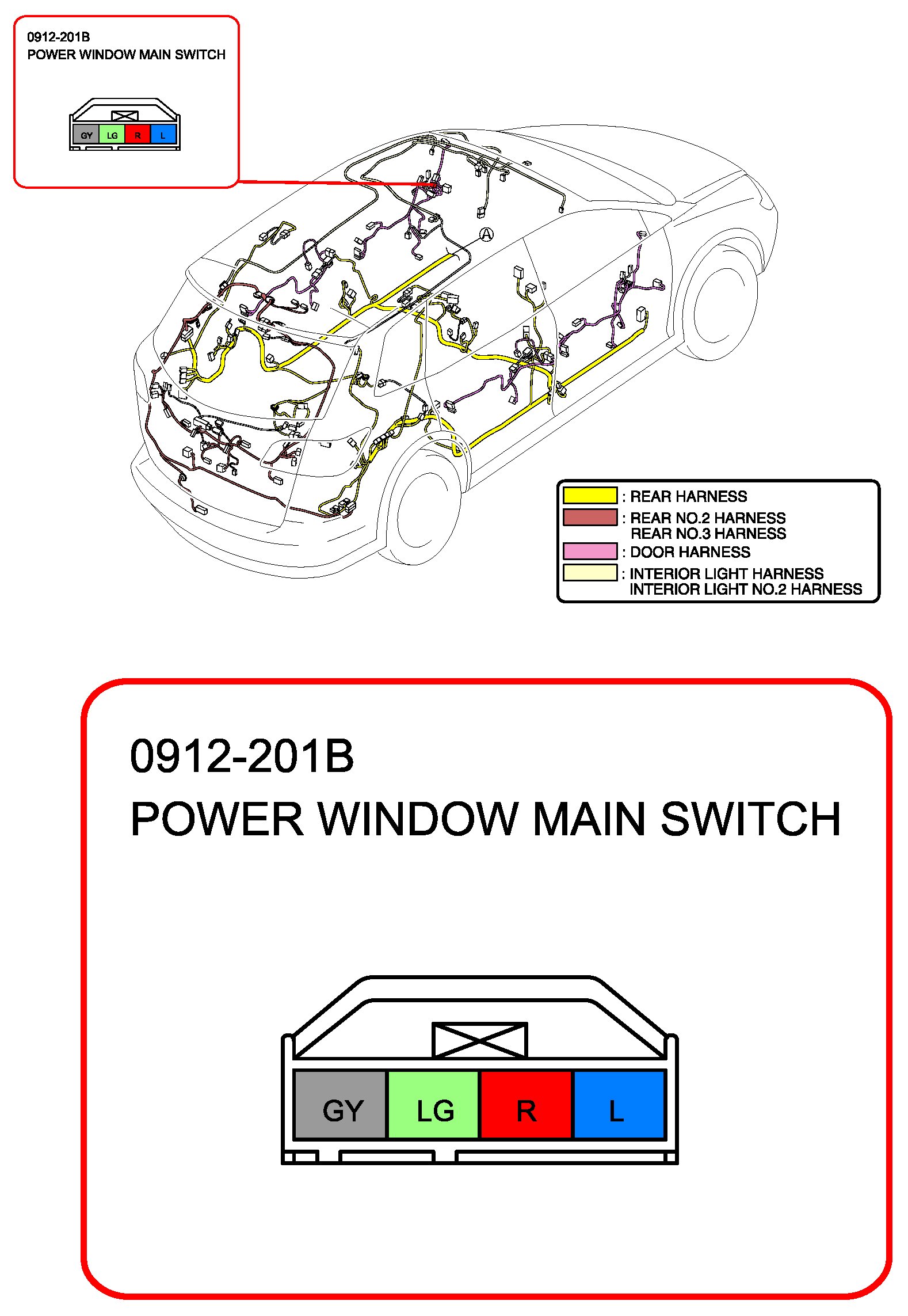

Power Window Main Switch:

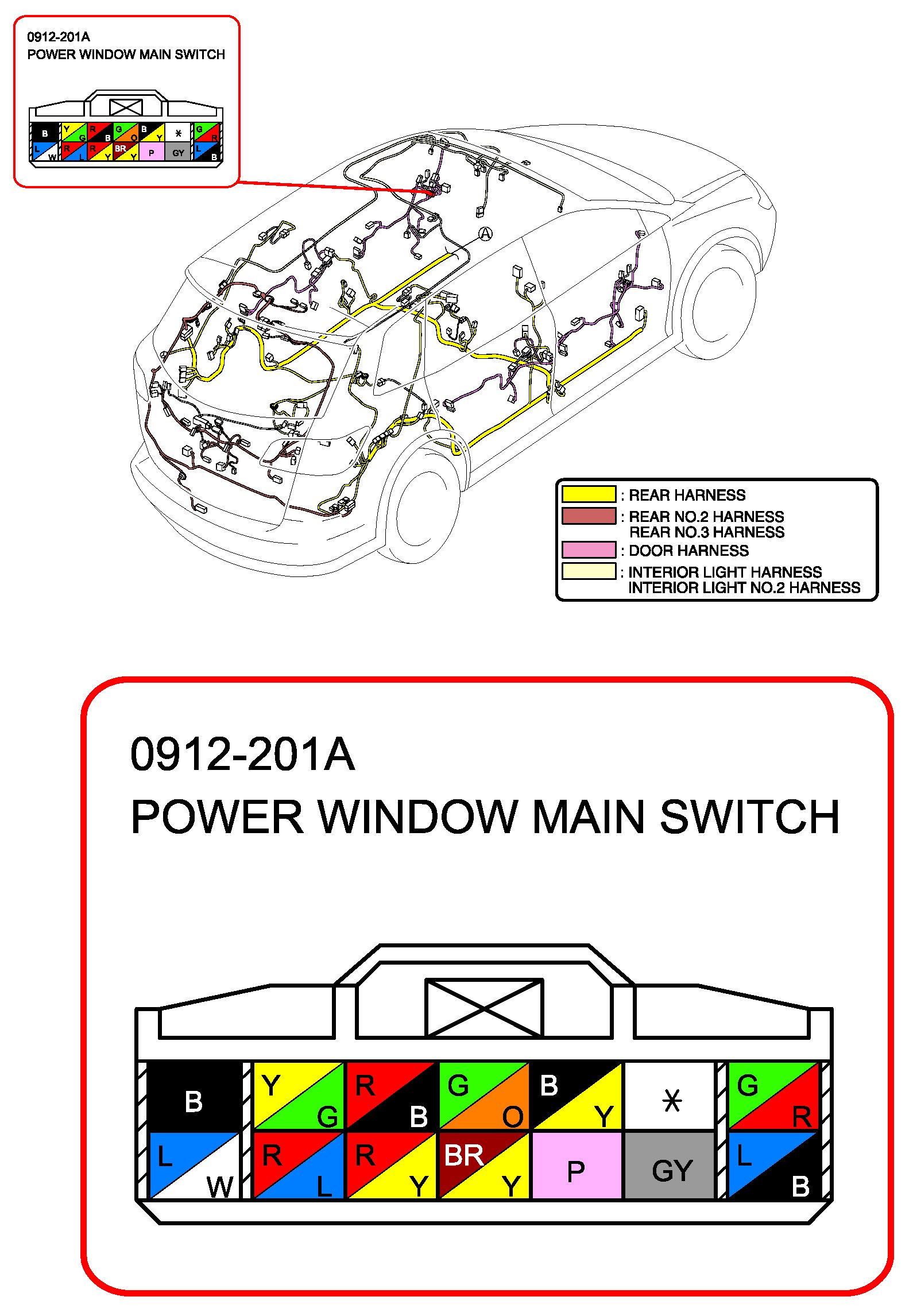

Power Window Main Switch:

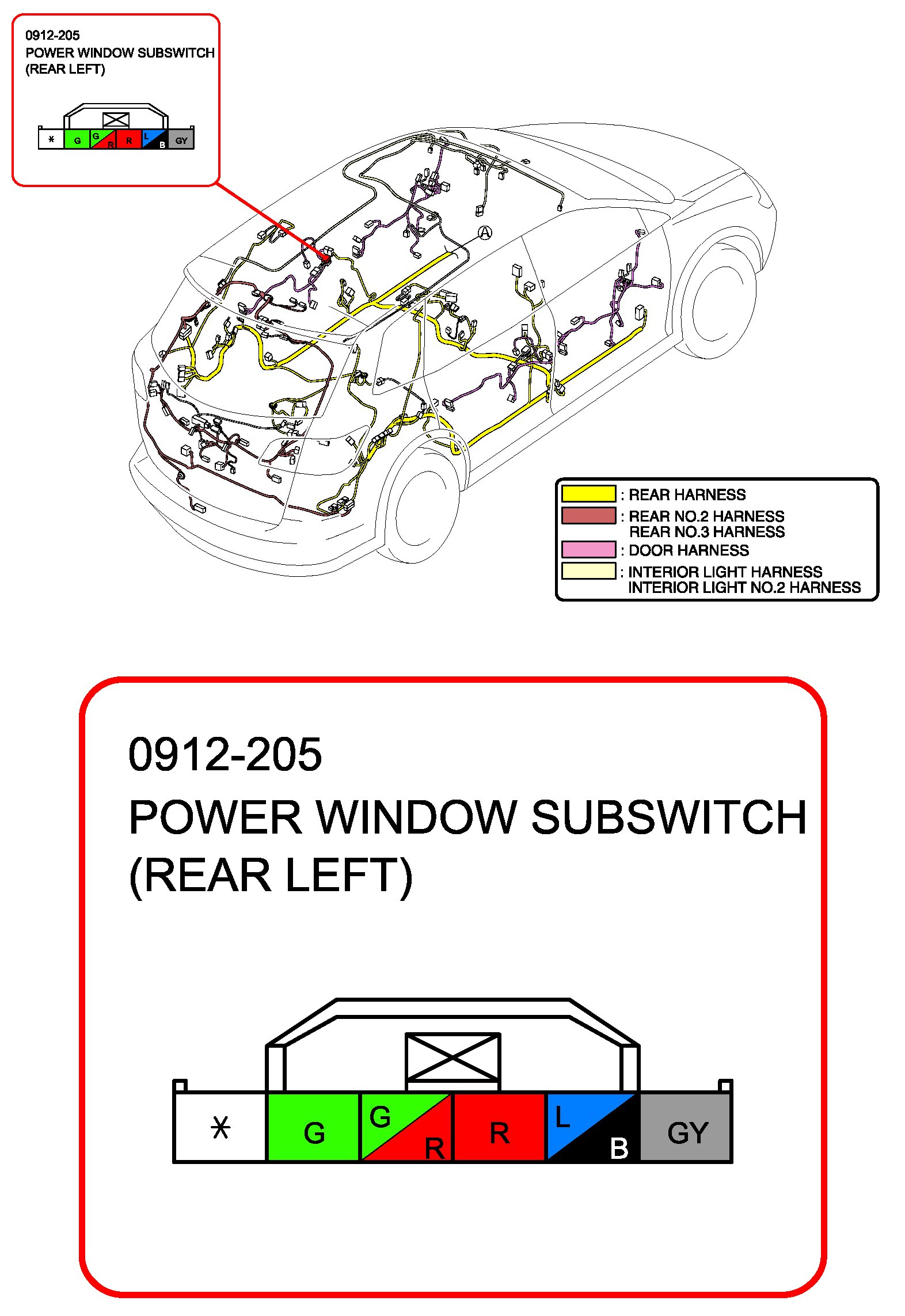

Power Window Subswitch (Rear Left):

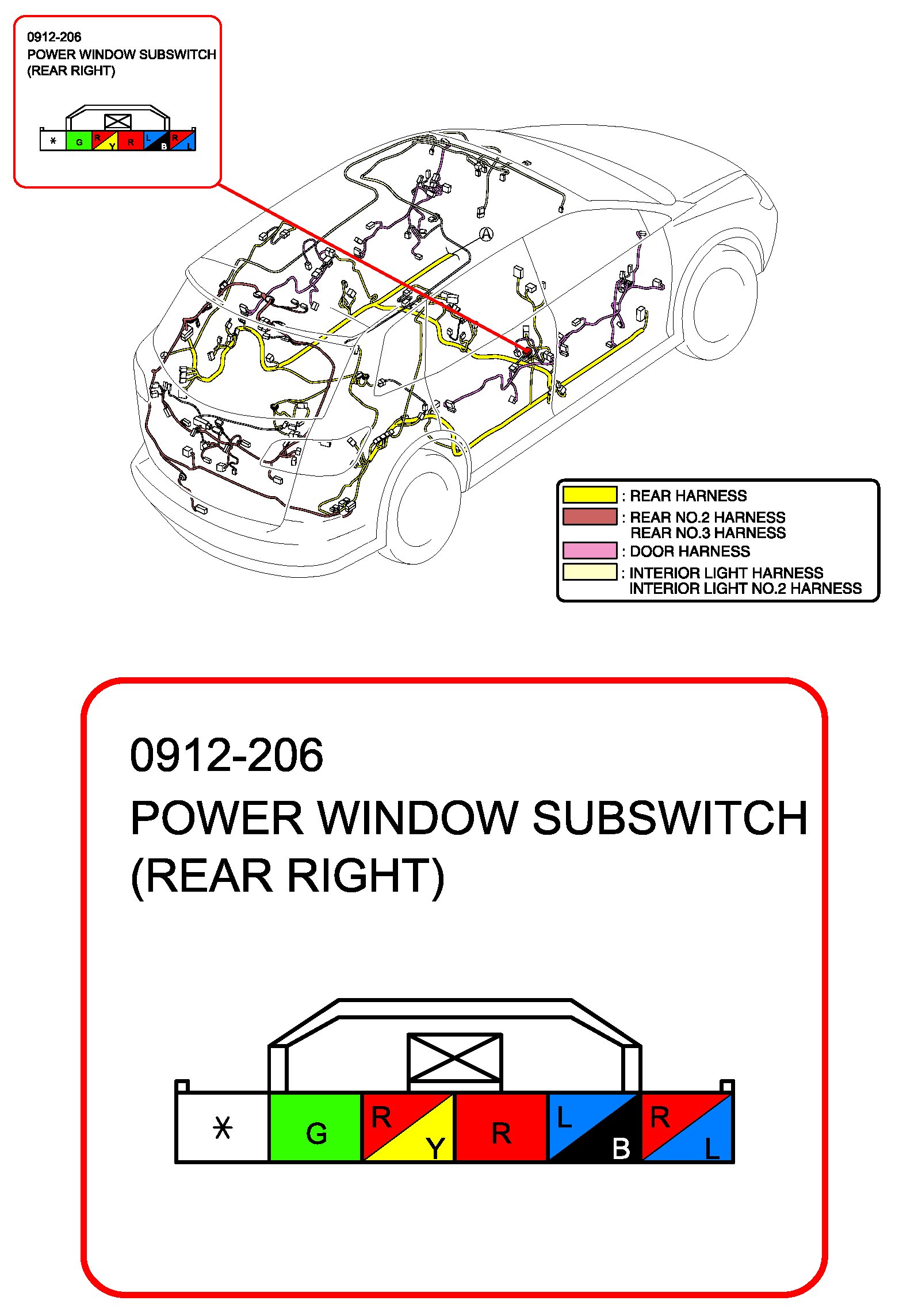

Power Window Subswitch (Rear Right):
