Power Window Motor (Driver's-Side)
Power Window Motor (Driver's-Side)

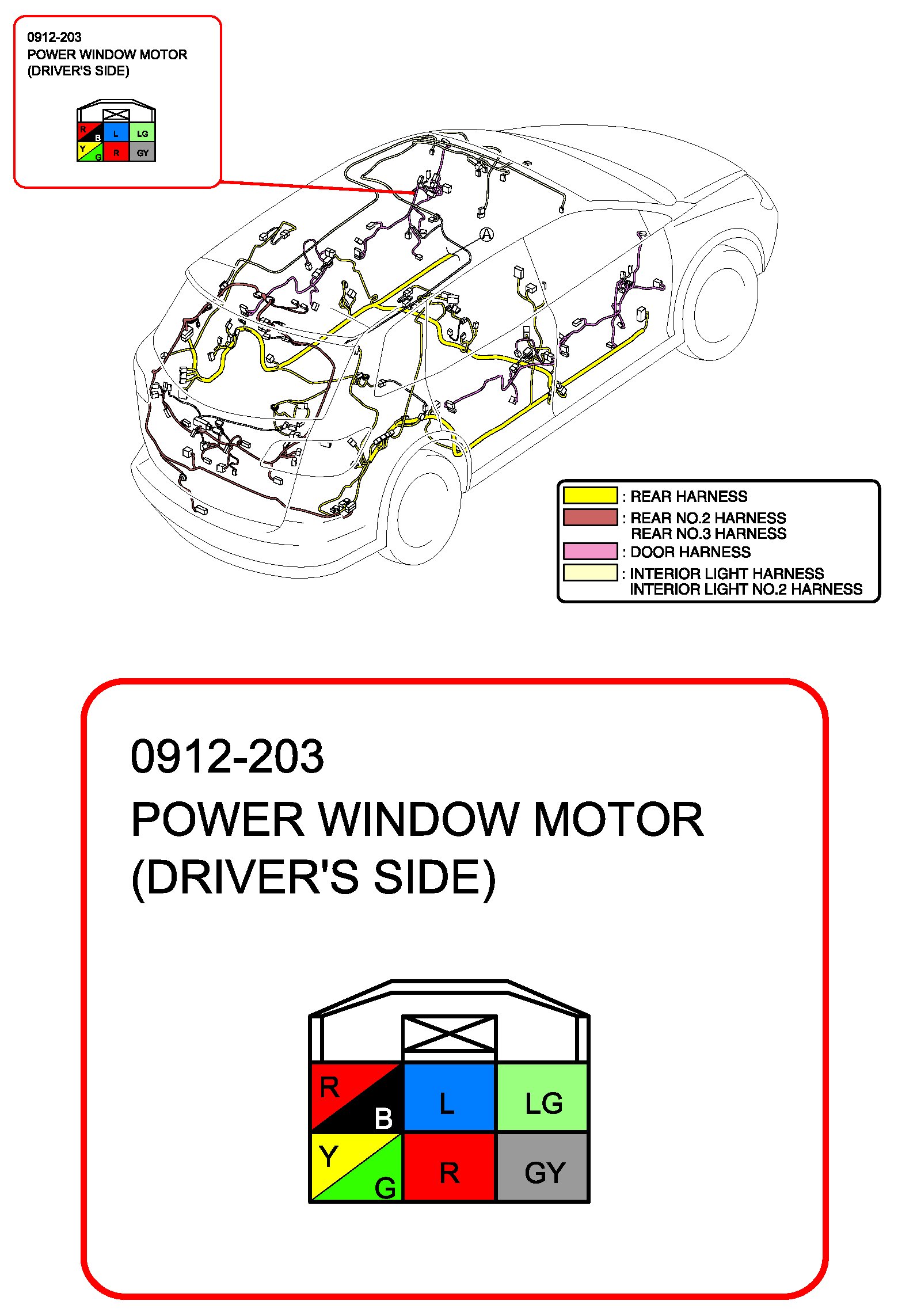

Power Window Motor (Driver's Side):

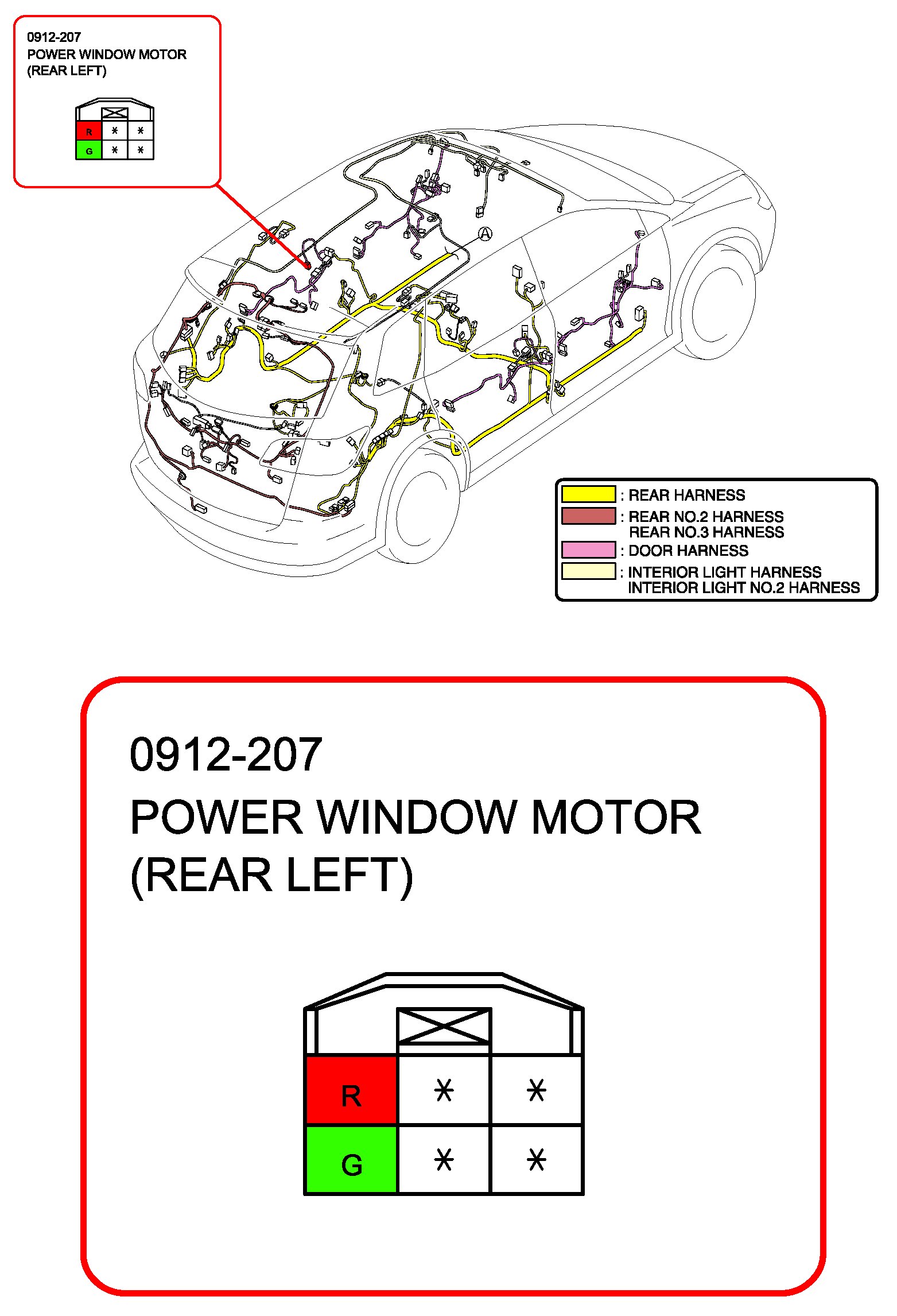

Power Window Motor (Rear Left):

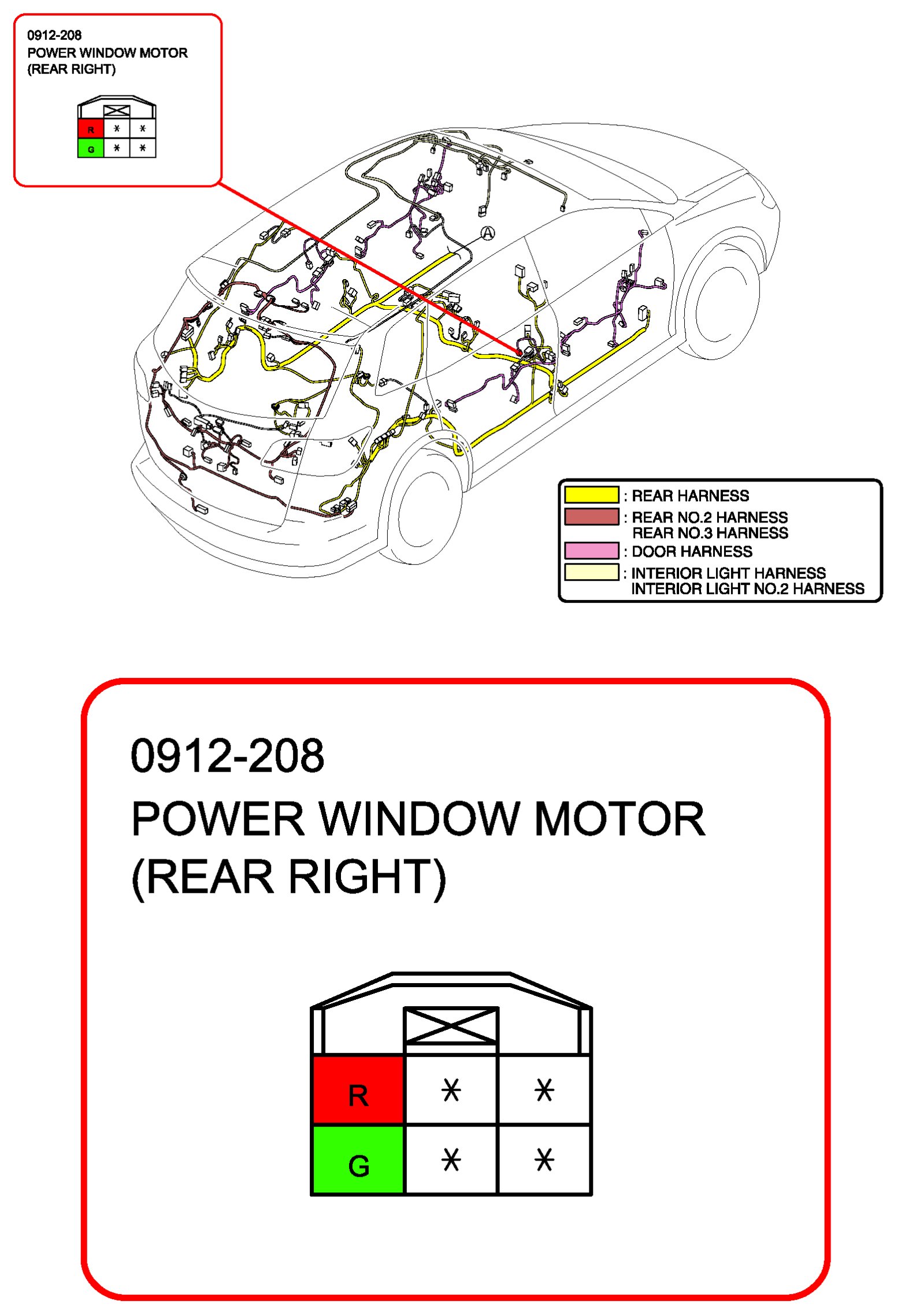

Power Window Motor (Rear Right):

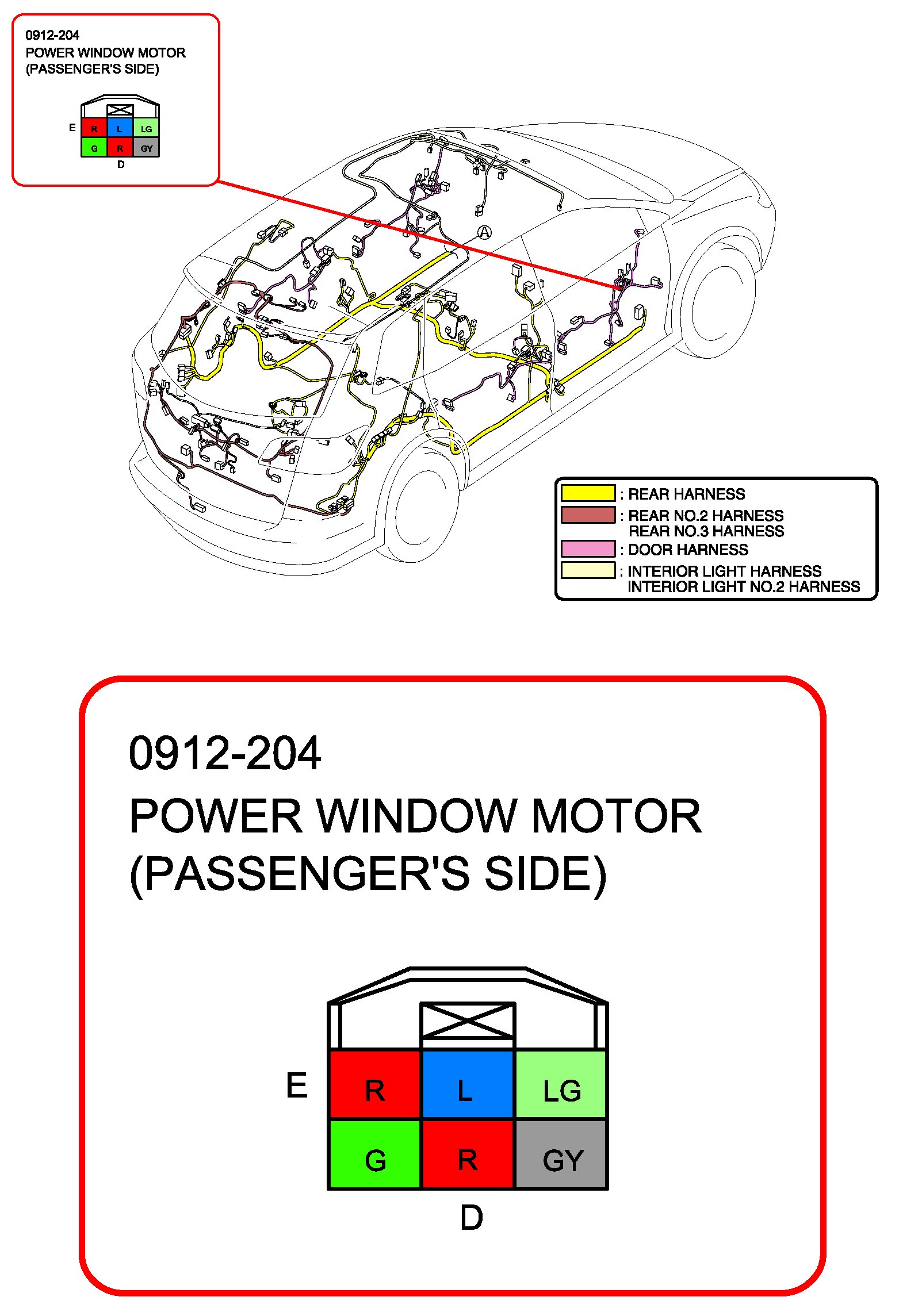

Power Window Motor (Passenger's Side):
