Tire Monitoring System

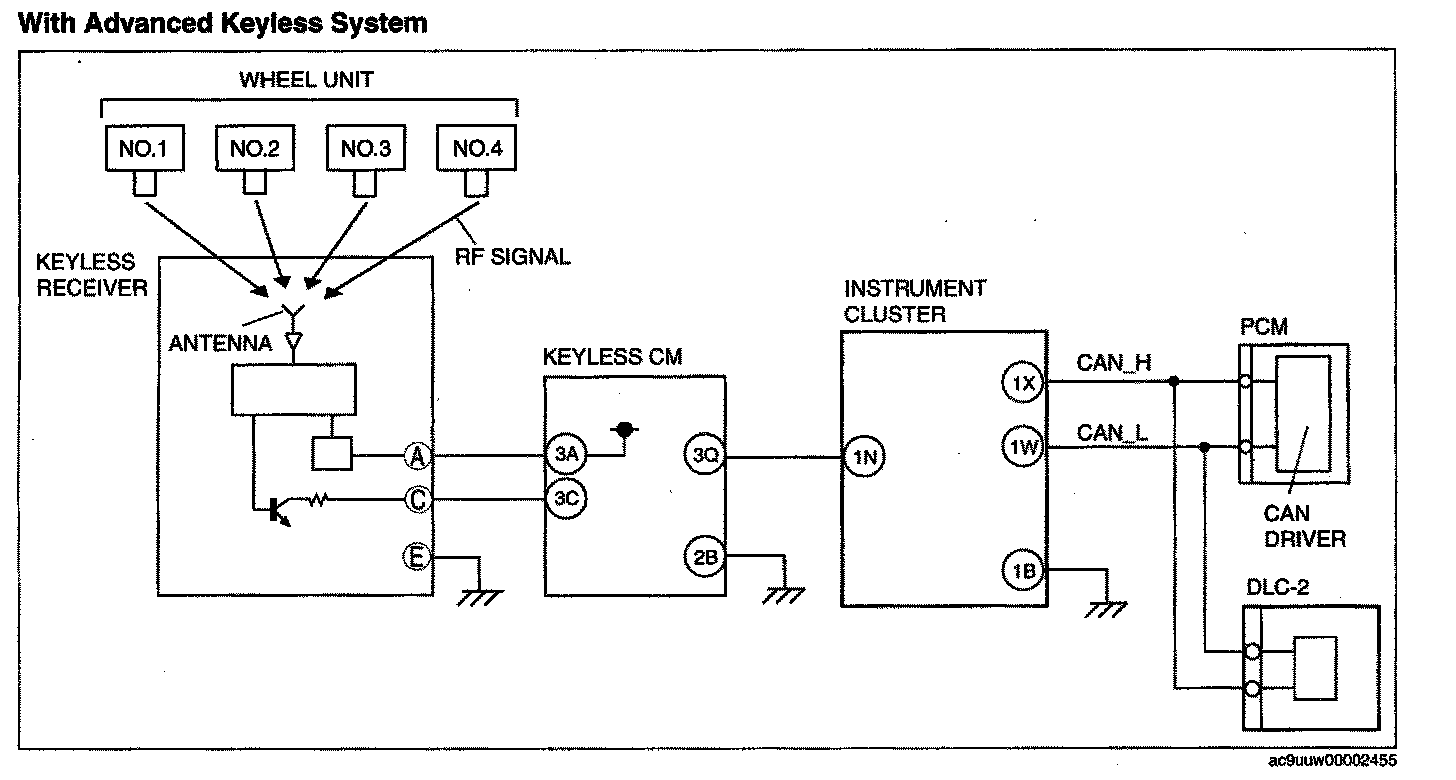

TIRE PRESSURE MONITORING SYSTEM (TPMS) WIRING DIAGRAMWith Advanced Keyless System
Diagram 02-2a:

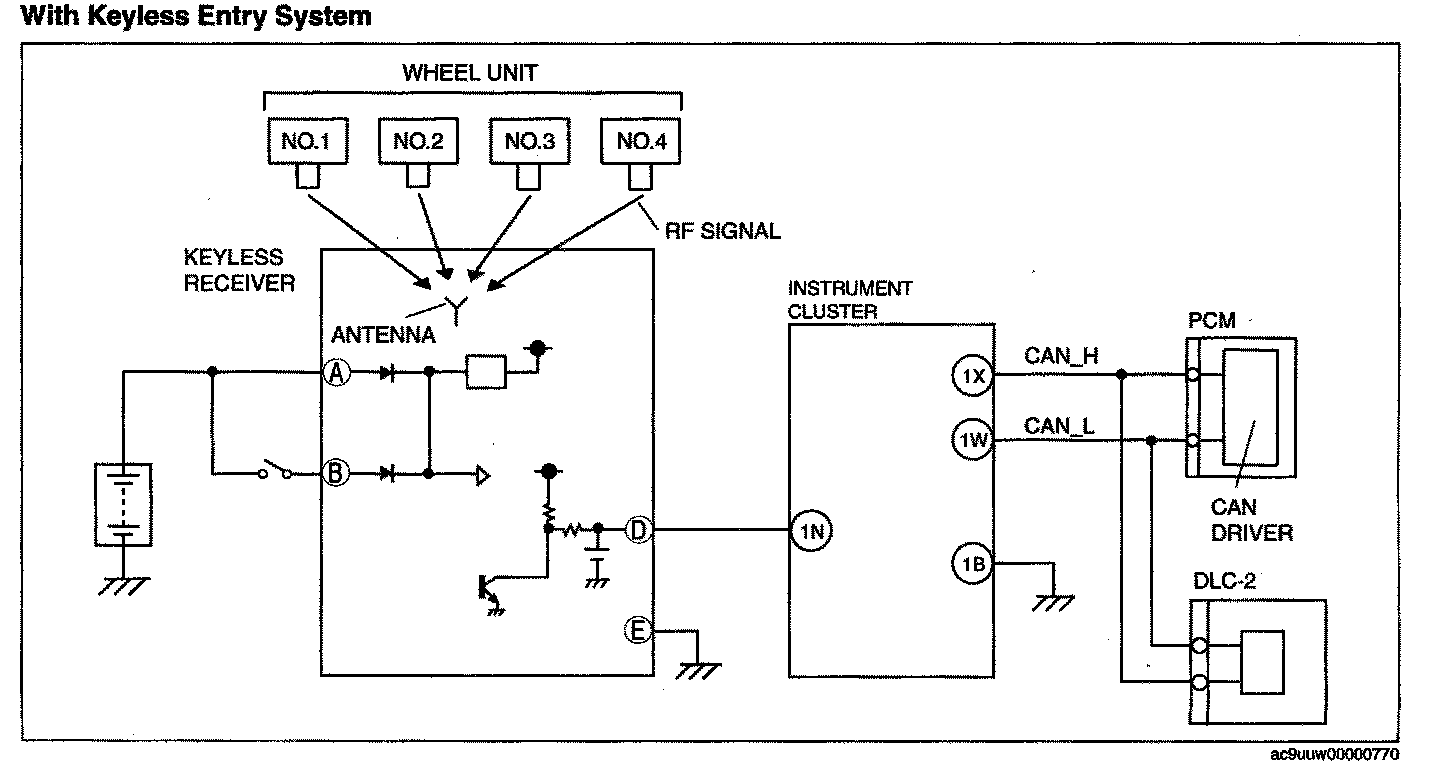

With Keyless Entry System
Diagram 02-2b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
