System Schemetic
System Schemetic

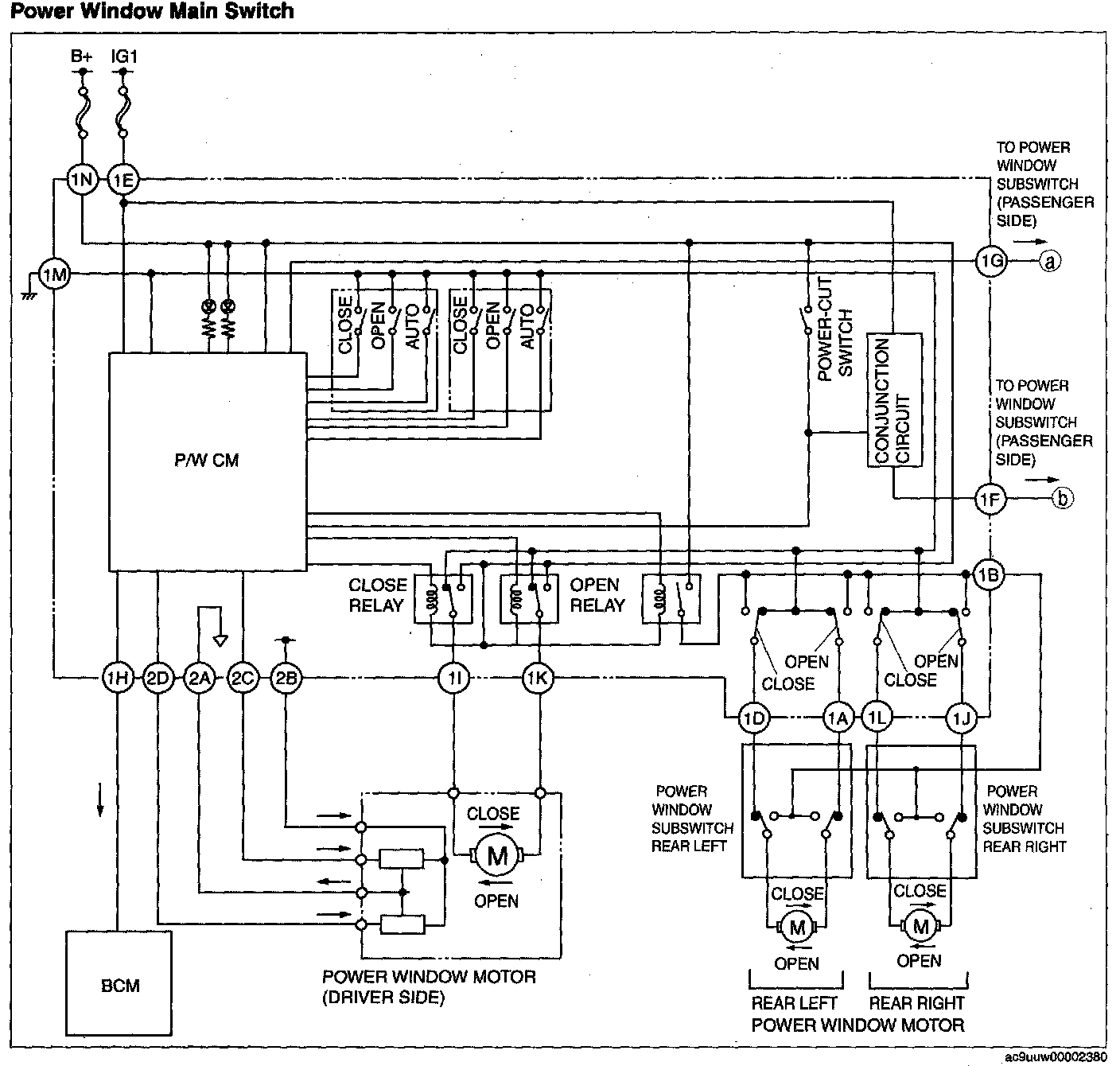

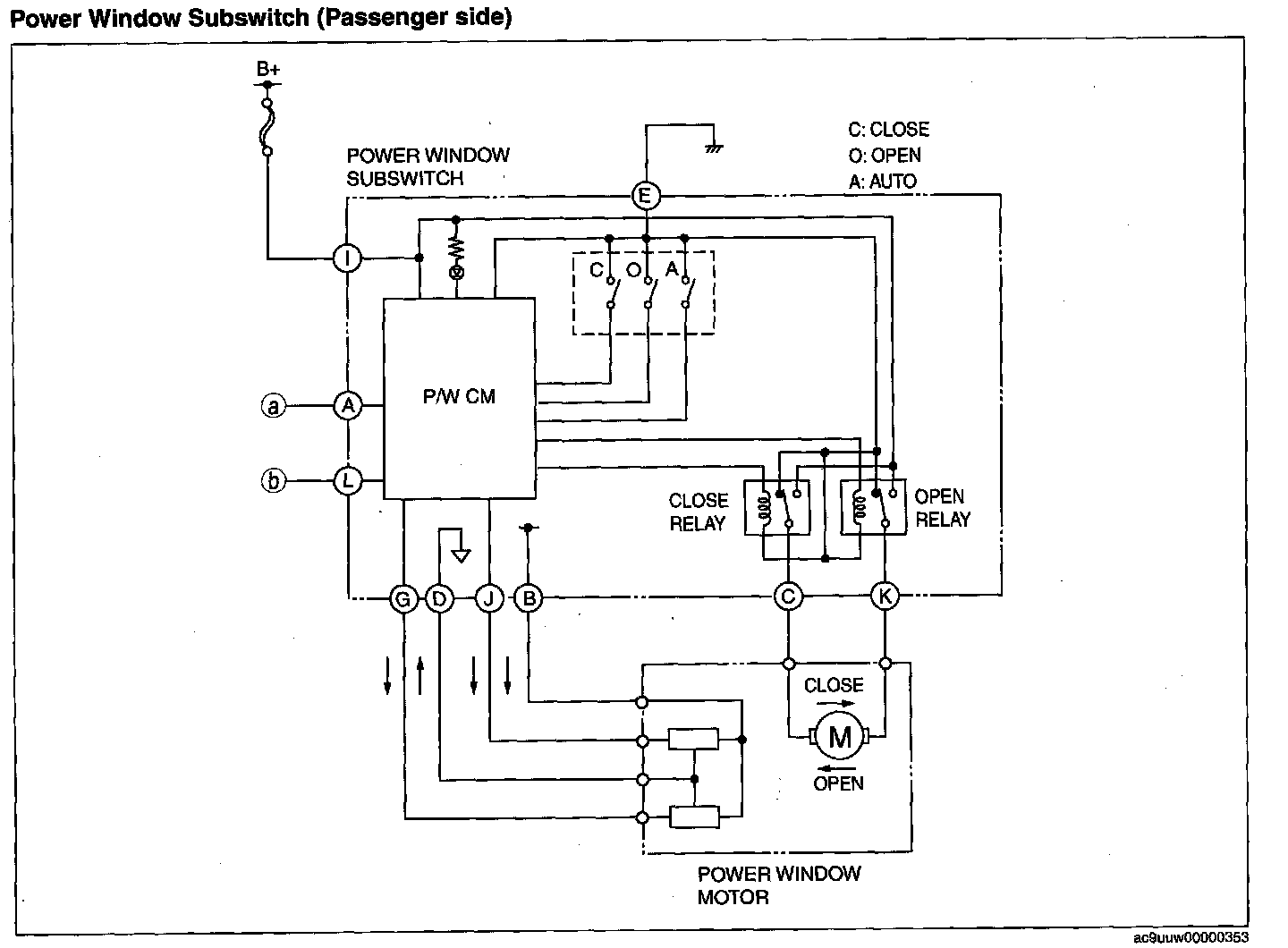

Power Window System Wiring Diagram [Power Window Systems (Auto-Open/Close Function)]:
